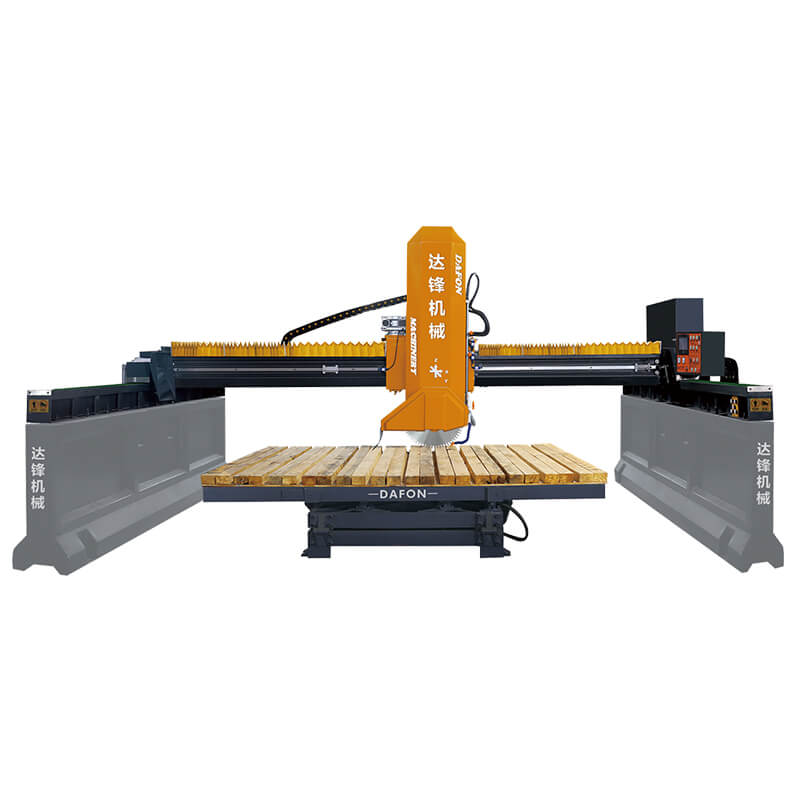

Stone Bridge Cutter Machine

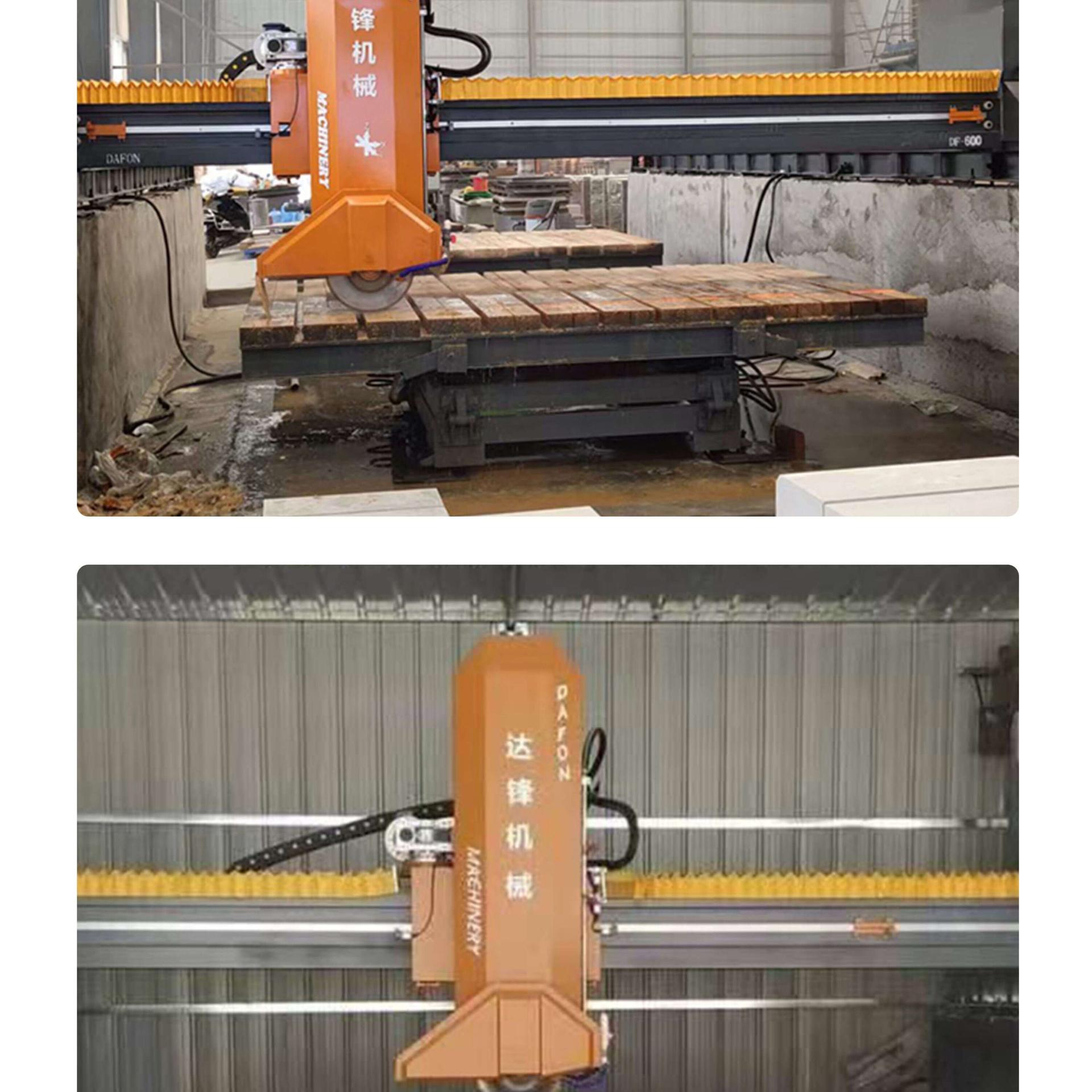

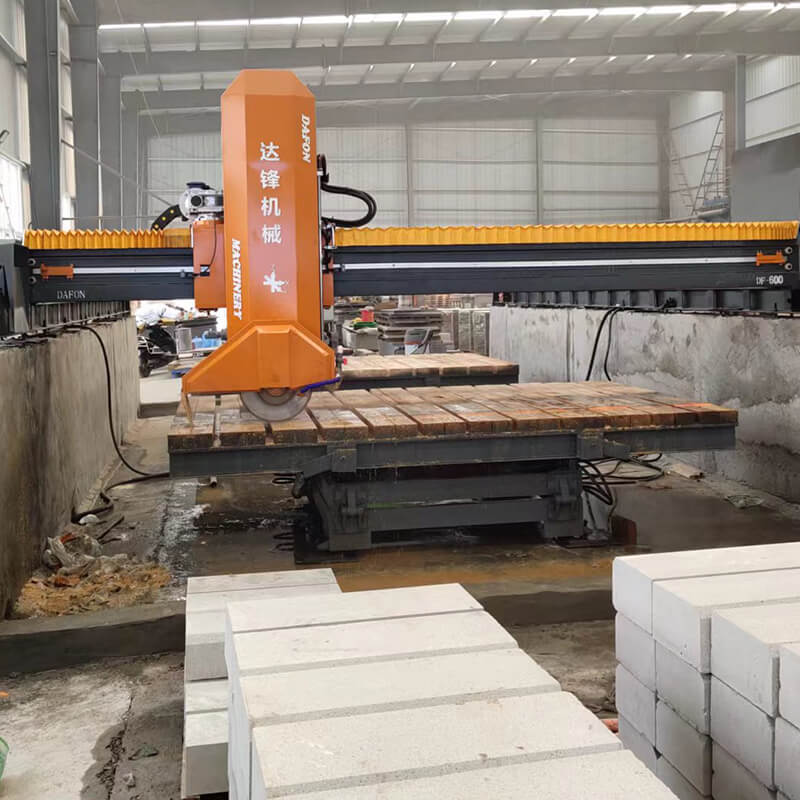

Stone Bridge Cutter Machine - Image 2

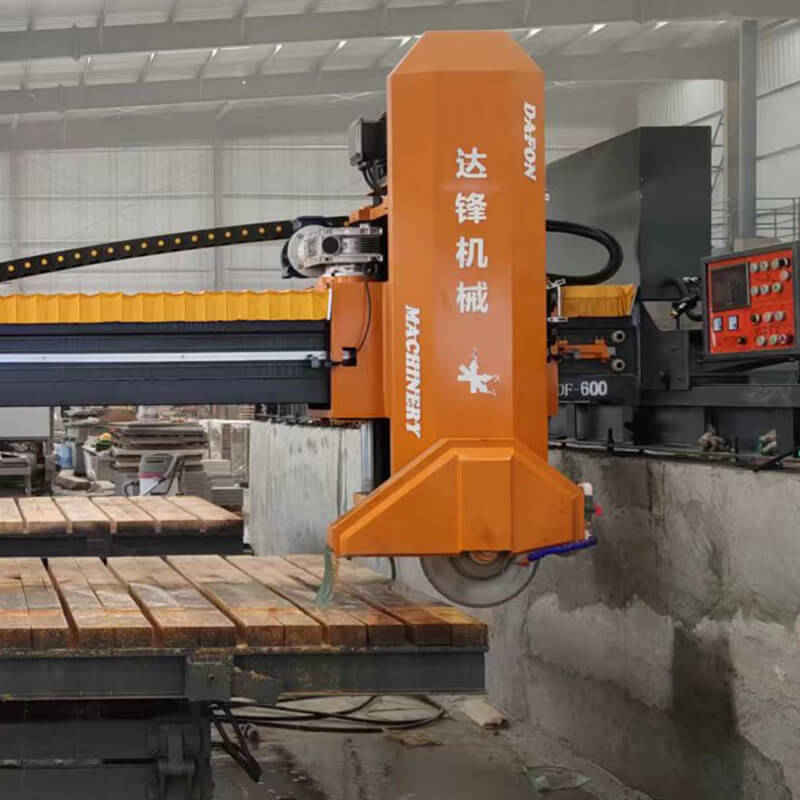

Stone Bridge Cutter Machine - Image 3

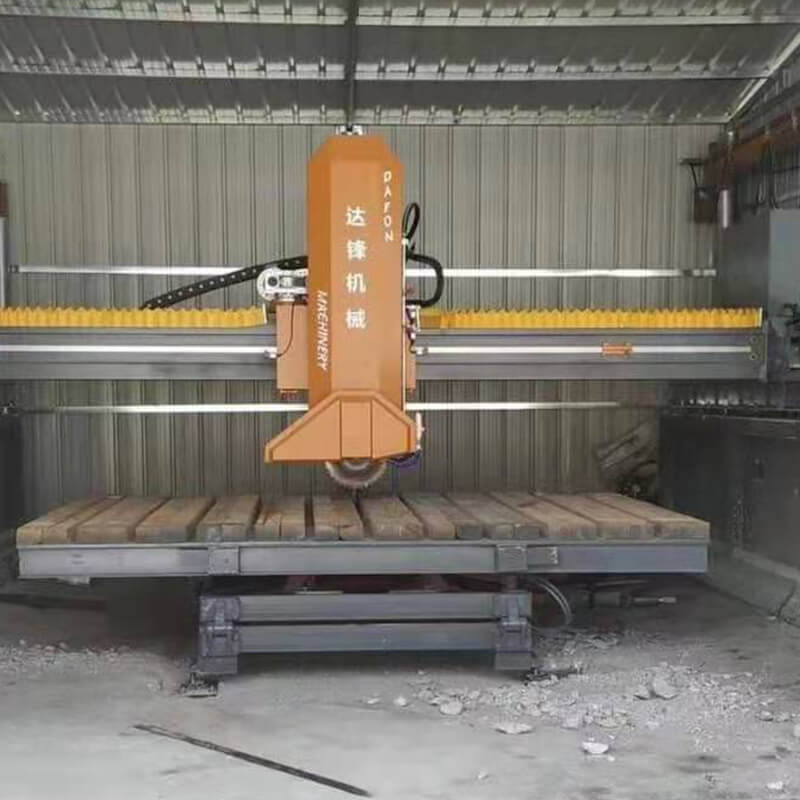

Stone Bridge Cutter Machine - Image 4

Stone Bridge Cutter Machine

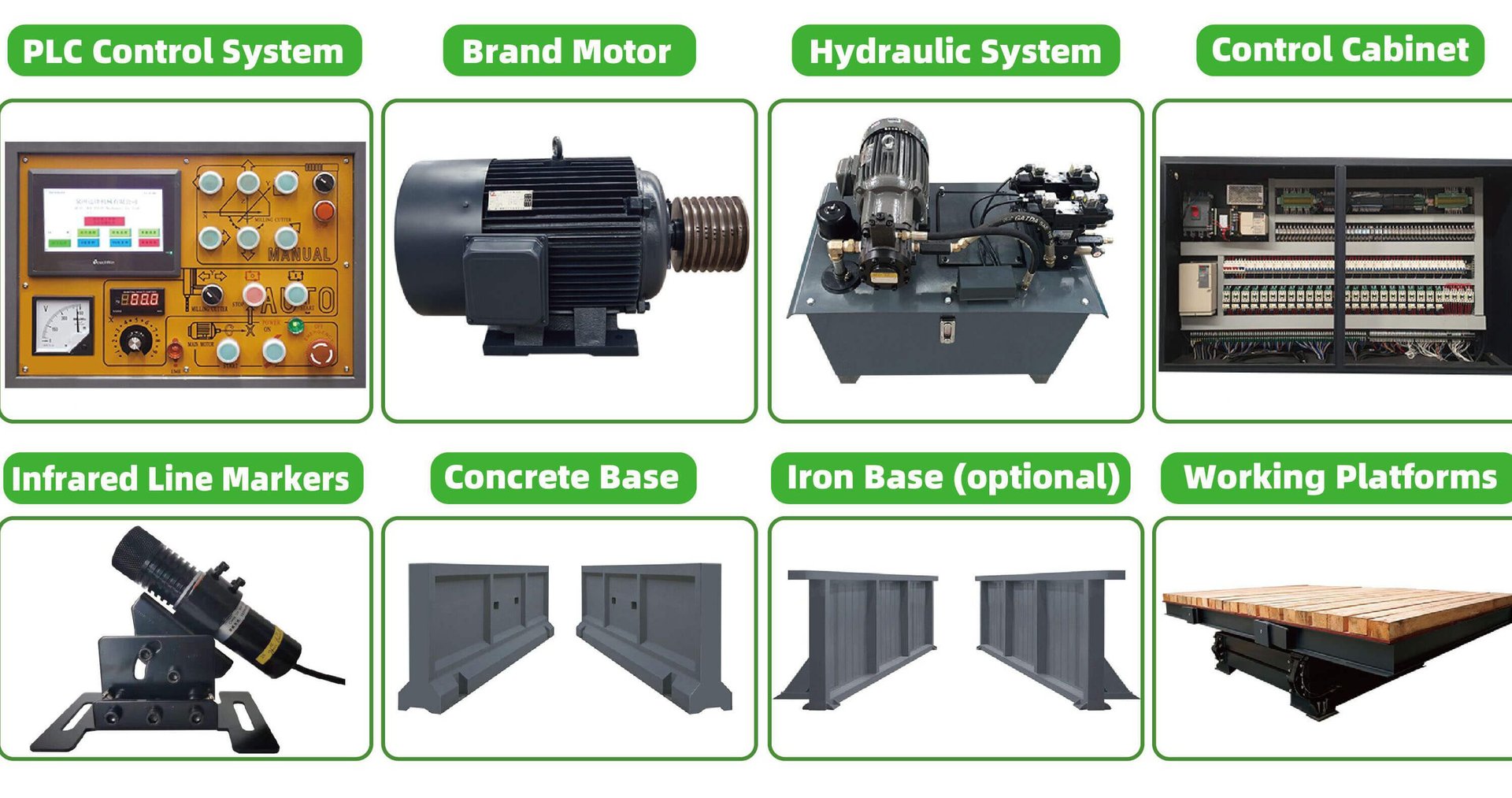

This stone cutting machine features PLC programmable control and an intuitive human-machine interface, allowing easy operation without professional skills. Infrared and laser alignment systems ensure high-precision straight-line cutting, while the integrated cast body provides stability and material-saving accuracy. Equipped with high-quality domestic motors and imported electronic components, it delivers reliable and consistent performance. The table offers 90°/360° rotation and 0°–85° tilt, enabling flexible cutting of granite, marble, rock slabs, tiles, and other stone materials.

Blank Form (#5) (#6)



Category:

Description

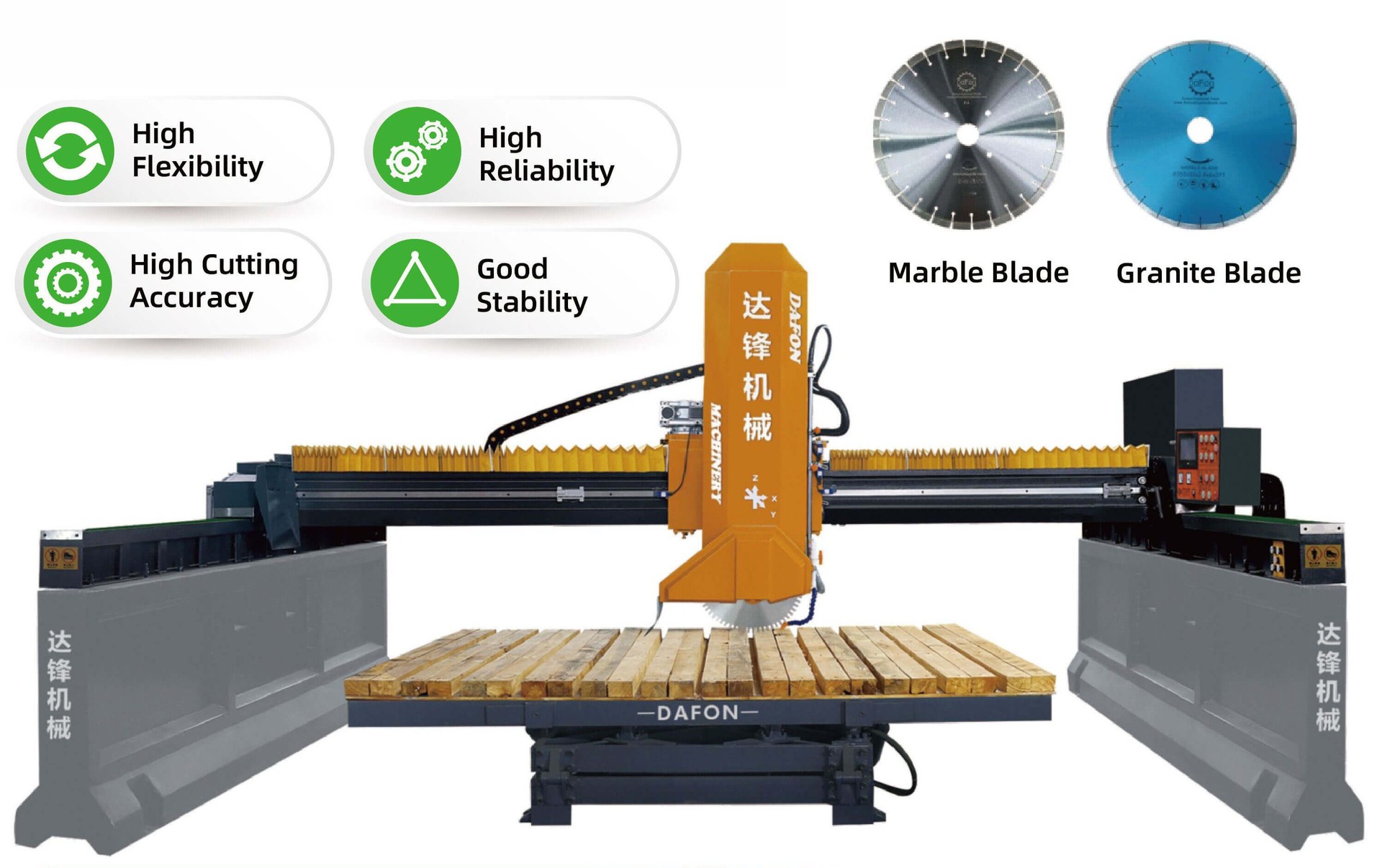

🔹 Easy Operation
PLC control and human-machine interface allow stone cutting without specialized skills.

🔹 High Cutting Accuracy
Infrared alignment and laser guidance ensure precise and straight cuts.

🔹 Stable & Material-Saving
Integrated cast body maintains smooth, accurate cutting and minimizes waste.

🔹 Reliable Performance
Domestic motors combined with imported electronic components provide high reliability.

🔹 Flexible Table Movement
Table rotates 90°/360° and tilts 0°–85°, adapting to various cutting requirements.

Name Unit DFQ-H450 DFQ-H600 DFQ-H800
Blade diameter mm Φ300~450 Φ300~600 Φ450~800
Lifting range mm 230 410 530
Worktable dimension (L×W×H) mm 3200×2000×720 3200×2000×720 3200×2000×720
Worktable tilting degree ° 0~85 0~85 0~85
Worktable rotating degree ° 0~90 / 360 0~90 / 360 0~90 / 360
Maximum cutting thickness mm 100 150 250
Water consumption m³/h 4 4 4
Main motor power kW 15 18.5 22
Total power kW 20.9 24.4 28
Weight kg 8500 9000 9650
Overall dimensions (L×W×H) mm 4700×5800×2300 4700×5800×3400 4700×5800×3800
