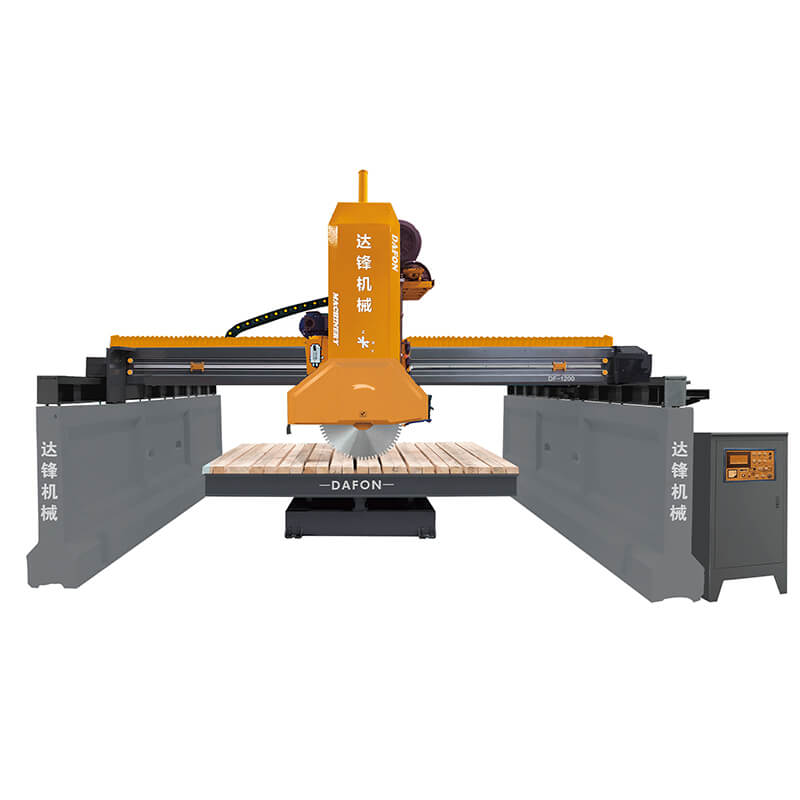

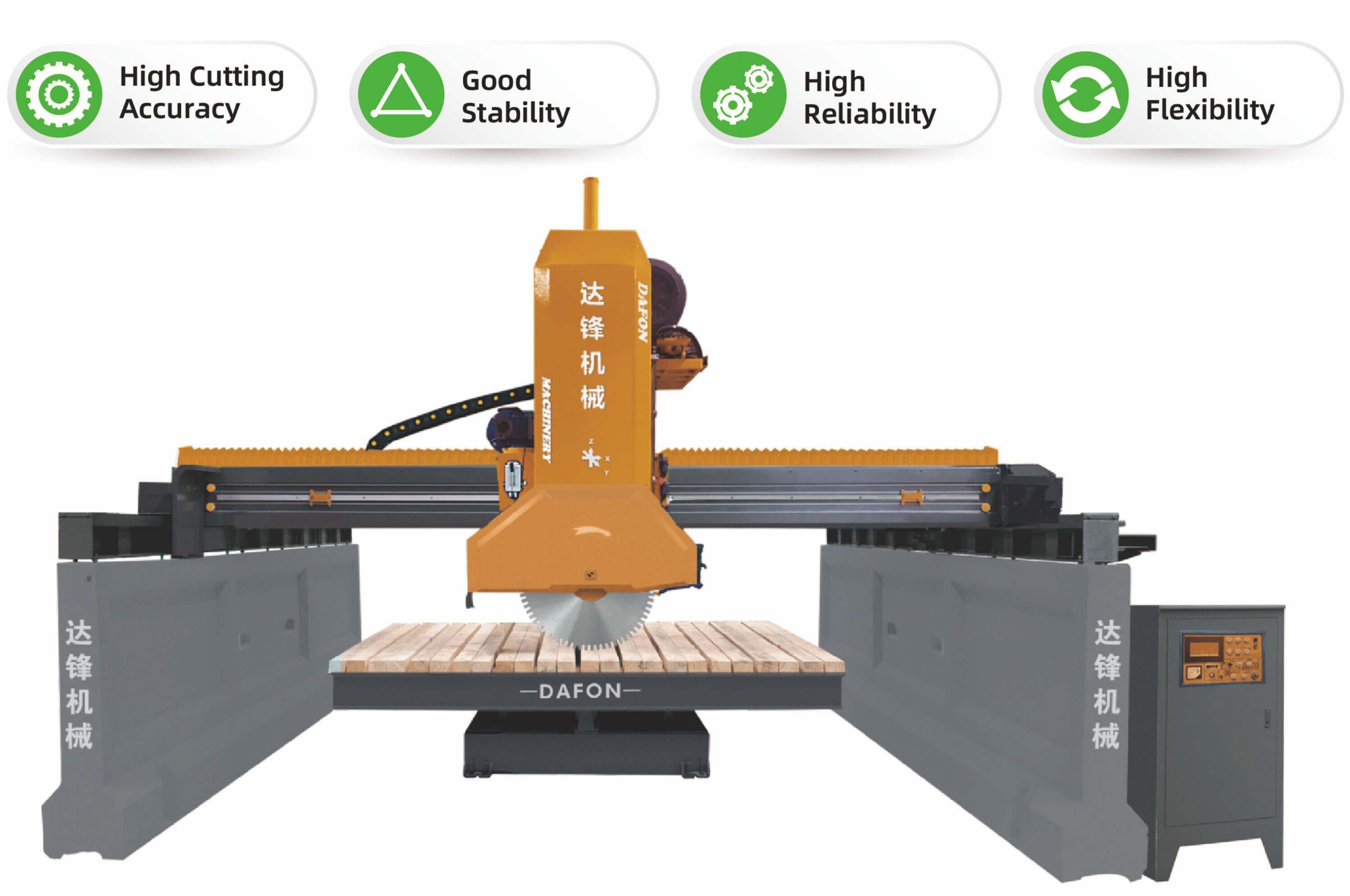

Stone Bridge Cutter Machine

This bridge-structure stone cutting machine features oil-immersed sealed guide rails for long-term durability and stable operation. Equipped with a 90° rotating table, high-power domestic motor, and laser alignment system, it delivers precise, smooth, and high-productivity cutting. The elastic base plate, high-precision linear guides, and laser probe ensure reliable performance and consistent stability. Ideal for granite, tombstones, roadside stones, and other stone materials, it provides efficient and accurate processing for diverse stone applications.

Description

🔹 Durable Bridge Structure

Oil-immersed sealed guide rails on main and side beams ensure long-term stability and smooth operation.

🔹 High Cutting Precision

Laser alignment and microcomputer control deliver accurate and consistent cuts every time.

🔹 Stable & Reliable Performance

Elastic base plate and high-power motor provide smooth, uninterrupted cutting with minimal maintenance.

🔹 Flexible Table Rotation

90° rotating table enables precise positioning and versatile cutting angles.

🔹 Versatile Stone Applications

Perfect for granite, tombstones, roadside stones, and other stone materials.

Name	Unit	DFQ-Z1200	DFQ-Z1400
Blade diameter	mm	Φ900~1200	Φ1000~1400
Lifting range	mm	850	1000
Worktable dimension (L×W×H)	mm	3000×2000×650	3000×2000×800
Worktable rotating degree	°	0~90	0~90
Maximum cutting thickness	mm	450	550
Water consumption	m³/h	4	5
Main motor power	kW	22	30
Total power	kW	28	37
Weight	kg	11000	7000 (Without foundation)
Overall dimensions (L×W×H)	mm	4700×5800×3400	4700×6250×4900
