Granite Profiling Machine

DAFON integrates design, manufacture, and trading to create state-of-the-art Granite Router Profiling Machine.
Price: $13000-$18000
Brand Name: DAFON
Certification: CE, ISO
Model Number: DFY-YF88320/DF88320/TF95320/SF95320
Power: 15/18.5/22kw
Weight: 3.5/7/8t
Application: Machinery & Hardware, Construction, Stone
Place of Origin: CHINA.
Trading Method: FOB/CIF/EXW Xiamen Port
Minimum Order Quantity: 1 SET
Delivery Time:90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote
  • Introduction

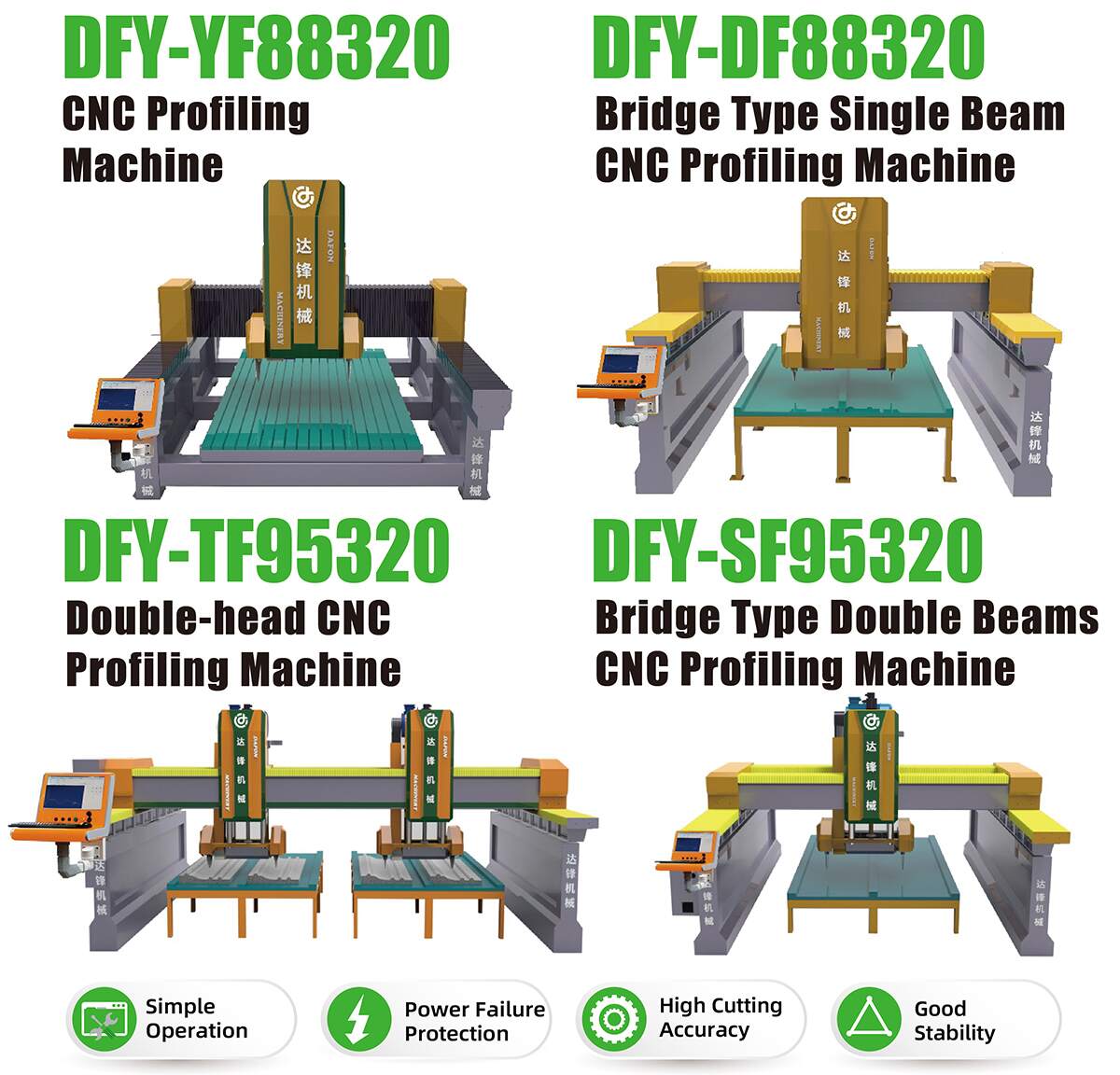

Dafon Factory offers four styles of stone profiling machines for you to choose from:

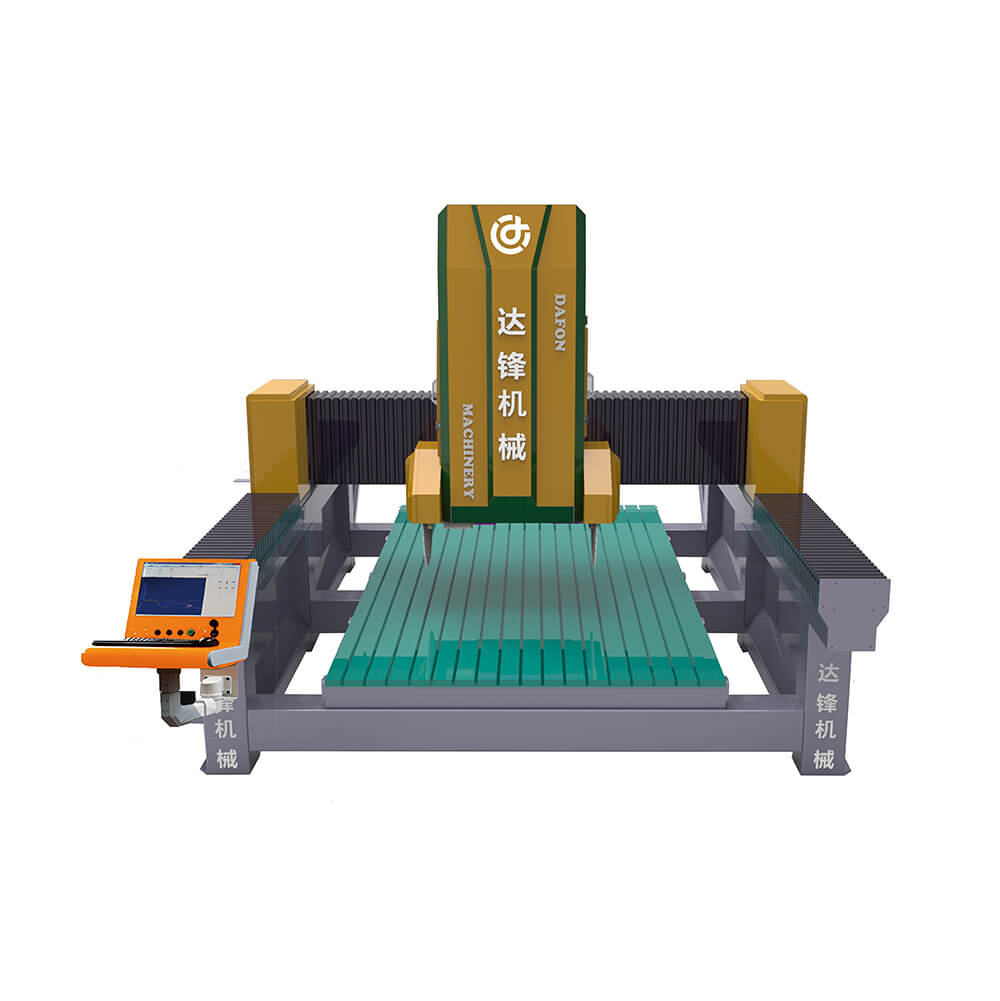

  1. DFY-YF88320:CNC Profiling Machine

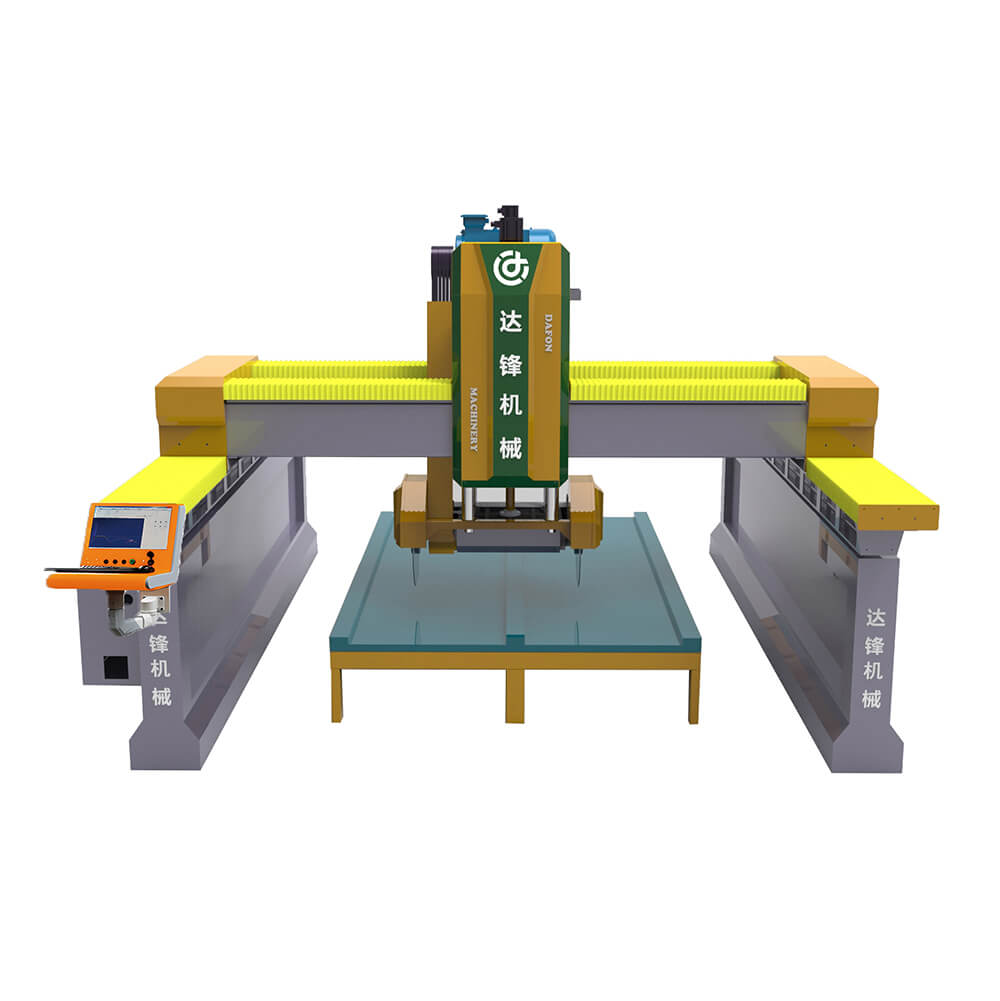

  2. DFY-DF88320:Bridge-Type Single Beam CNC Profiling Machine
  3. DFY-TF95320:Double-Head CNC Profiling Machine
  4. DFY-SF95320:Bridge-Type Double Beams CNC Profiling Machine

The stone profiling machine adopts CNC control system and human-machine interactive operation interface. The machine body and beam body are seamlessly welded with thickened high-strength steel and processed by CNC machining center to ensure high processing accuracy. Its sturdy and stable structural design makes it not easy to deform, especially suitable for surface cutting of marble and granite, such as lines, Roman columns and large arc plates.

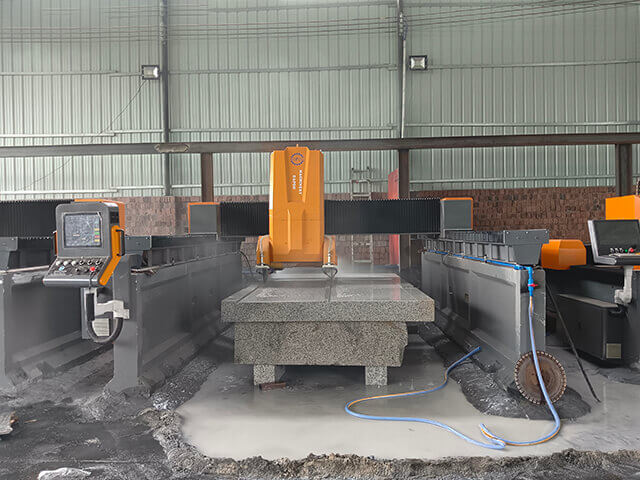

granite profiling machine

  • Features

Easy operation
supports humanized one-button control and is compatible with domestic and foreign CAM software, such as Art CAM and Precision Engraving.
Stability
The body is a heavy integrated welding gantry structure, high-strength steel plate welding, high-precision dragon door milling machine processing, and supporting equipment for long-term efficient and stable operation;
High cutting accuracy
The numerical control system controls this machine, Use high-speed, ultra-precision servo drives and motors, which are fast processing and high accuracy to achieve visual operation.
Power failure protection
The industrial-grade CNC system has power failure memory and engraving recovery functions after the power supply to ensure the continuity and stability of operation.
Remote operation
The equipment supports remote drawing import and online drawing functions for easy operation.
Widely usage
Using CNC system control, deeper custom development of stone cutting, simple and easy-to-use software, rich functions, suitable for various lines of processing
Low energy consumption
Professional high-performance vector control inverter has excellent performance and intelligent energy-saving function, ensuring smooth branching and low power consumption

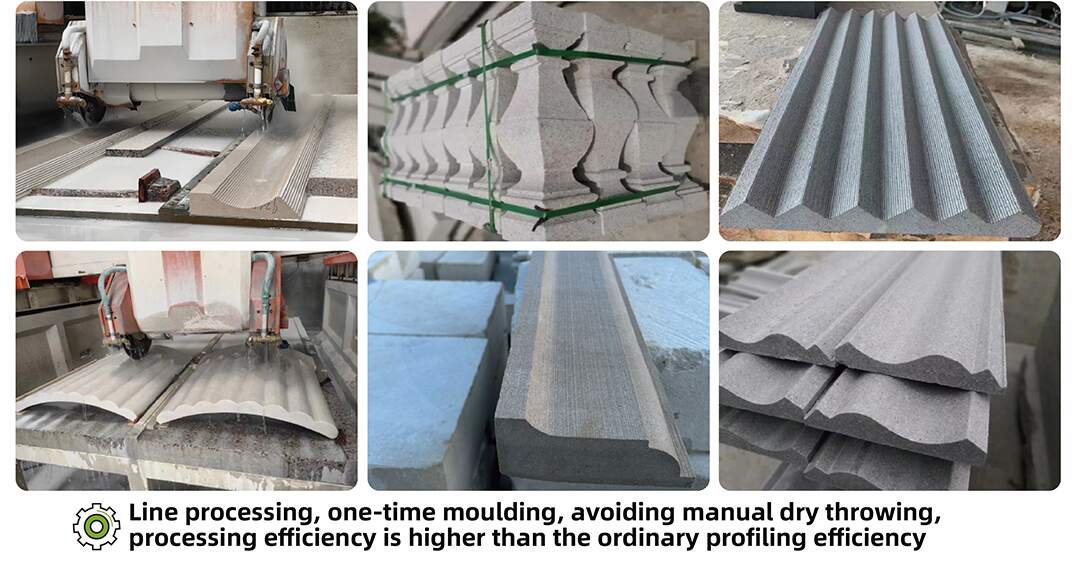

  • Finished Products

granite profiling machine

  • Technical Parameters

Name Unit DFY-YF88320 DFY-DF88320 DFY-SF95320 DFY-SF95320
Platform size(customisable) mm 1800*3400 1800*3200 2000*3300 2000*3300
Machine stroke(feed can customised) mm 1200*3400*350 100-1000 100-1000 100-1000
Stone thickness mm 100-400 3200*2000 3200*2000 3200*2000
Total power kw 26 26 30
Main motor power kw 18.5 18.5 22 22*2
Distance between saw blades (customisable)
mm 880
880 950 950
Drive system ds AC servo motor AC servo motor
AC servo motor
AC servo motor
Blade diameter mm 300-600 300-600 500-800 300-600
Lubrication system  ois
 XY-oil-based
 XY-oil-based
 XY-oil-based
 XY-oil-based
Operating voltage
 V
AC380V/50HZ
AC380V/50HZ
AC380V/50HZ
AC380V/50HZ
Run command (computing)  ri
G-code
G-code
G-code
G-code
Processing progress mm 0.05 0.05 0.05 0.05
Overall dimensions(l*W*H) mm 4850-3250*2600 4700*3700*2900 5400*4250*3100 54000*6500*3250
Wright t 6.5 7 8 9.5

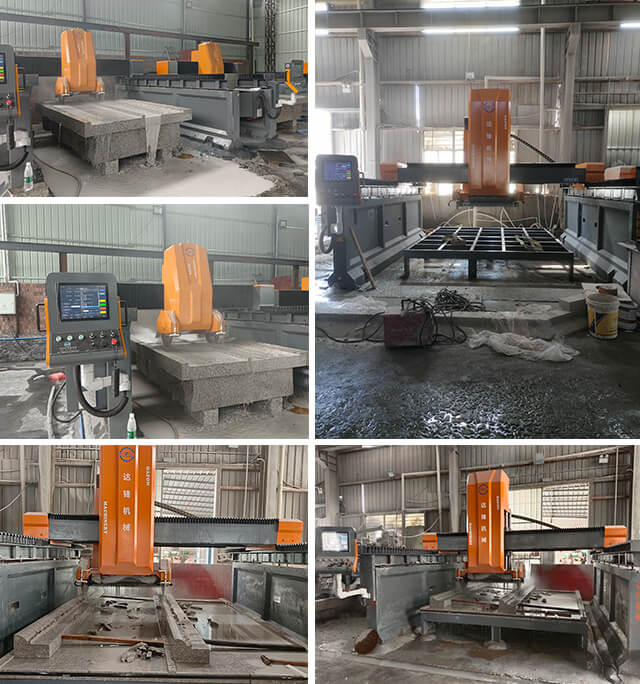

  • On-site picture
stone profiling machine


Related Resource


Start Customizing Your
Granite Profiling Machine!
Get Price
Granite Profiling Machine Main Parts
Related Features
Related Types
Related Effect Show Dafon Is Professional Manufacturer Of Granite Profiling Machine,
One Stop Solution For Your Stone!
1
1996
Since 1996
2
60+
Countries Users
3
200+
Employees
4
80+
Machine Patents
5
1000+
Global Clients
6
20000+
Square Meters
What Shapes Can be Processed by a Stone Profile Machine
What Shapes Can be Processed by a Stone Profile Machine
Stone profiling machines can process stone into various shapes through profiling cutting, profiling polishing, profiling grinding and other processes. Profiling is the use of profiling machine in accordance with the set trajectory to cut the stone, so as to form the desired shape.
