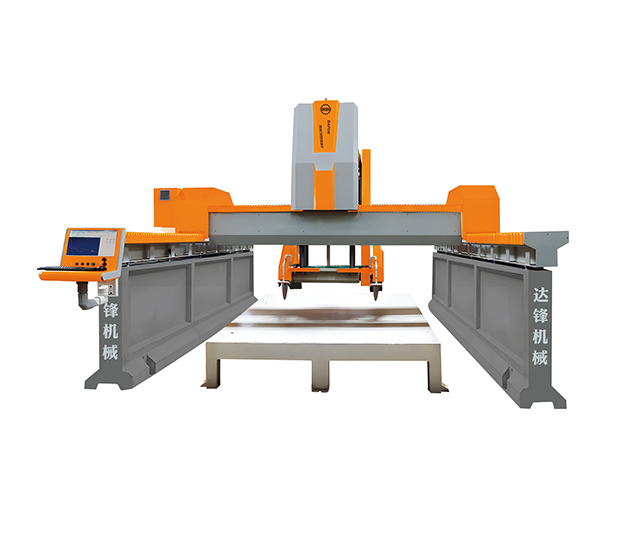

CNC Stone Marble Profiling Machine

DAFON's expertise in design and manufacture enables them to provide exceptional Granite Stone Profiling Machine.
Price: $13000-$18000
Brand Name: DAFON
Certification: CE, ISO
Model Number: DF-1835
Power: 22KW*2
Weight: 8000kg
Application: Machinery & Hardware, Construction, Stone
Place of Origin: CHINA.
Trading Method: FOB/CIF/EXW Xiamen Port
Minimum Order Quantity: 1 SET
Delivery Time:90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

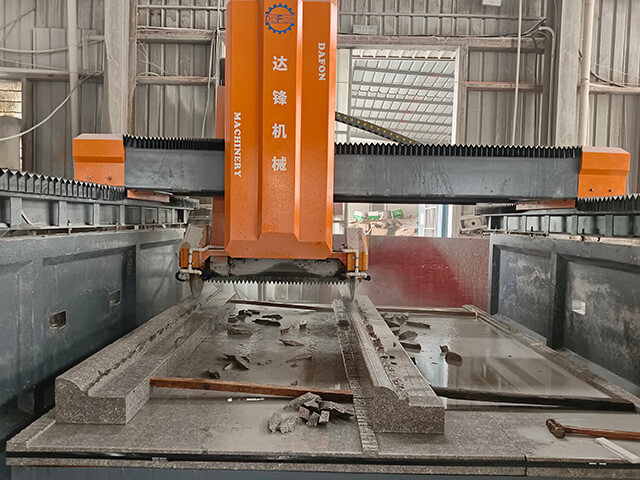

granite profile machine


How many types of stone profiling machines?


Dafon has three types of stone profiling machines:

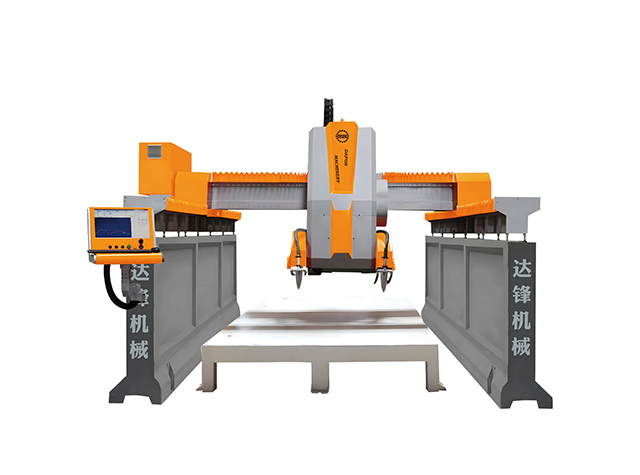

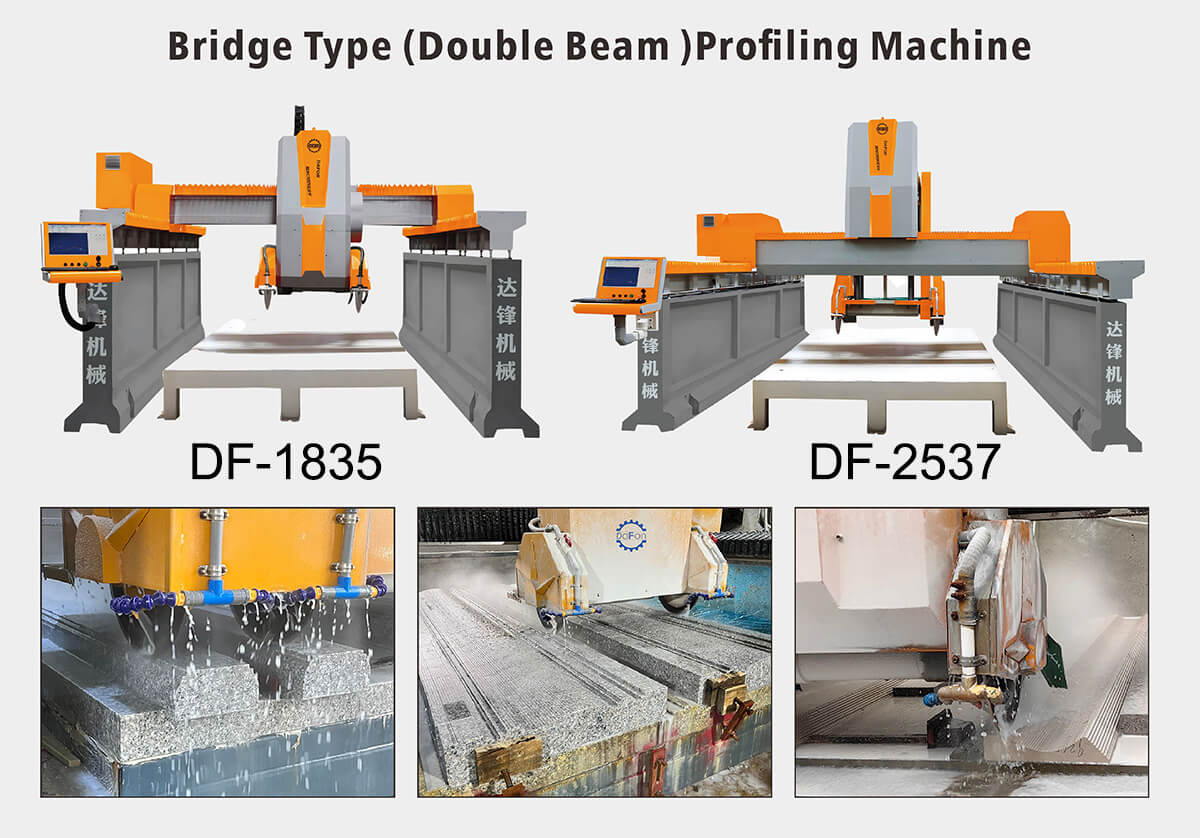

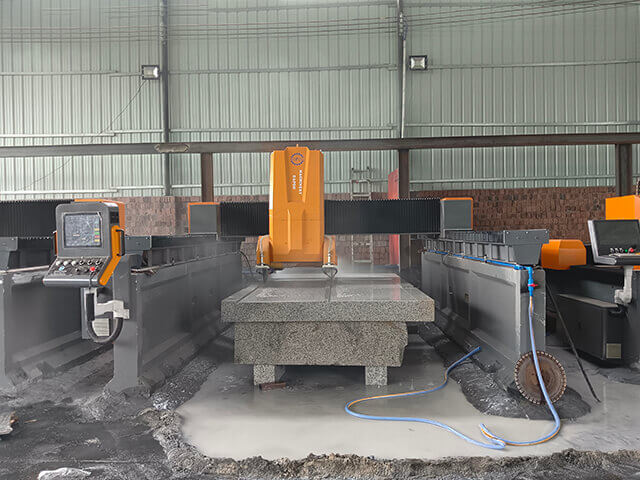

DF1835: The Bridge Type Stone Profiling machine is our most popular conventional profiling machine and is a powerful assistant for most stone factory profiling processing equipment. Small error, good profiling effect, profiling efficiency several times higher than manual profiling

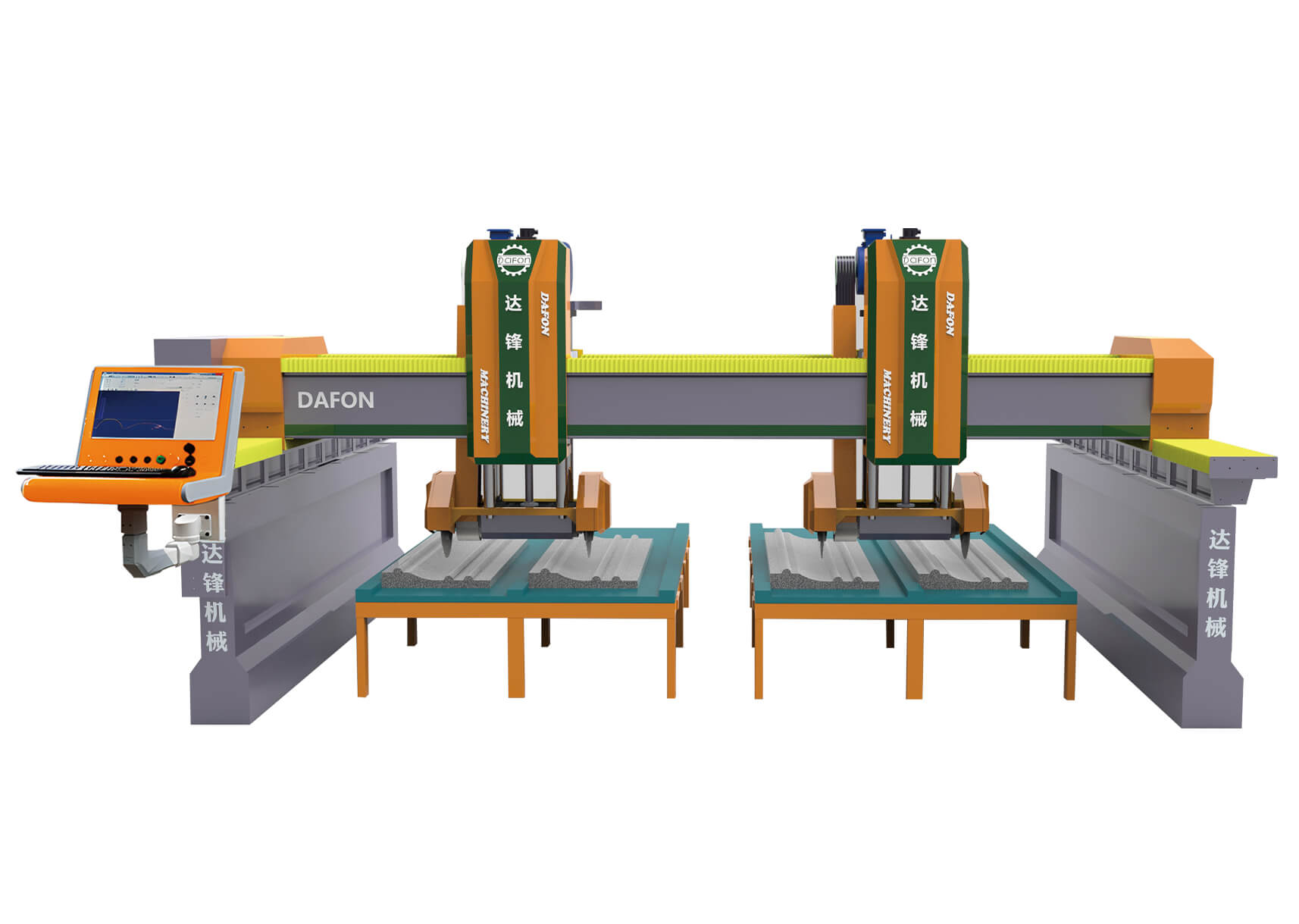

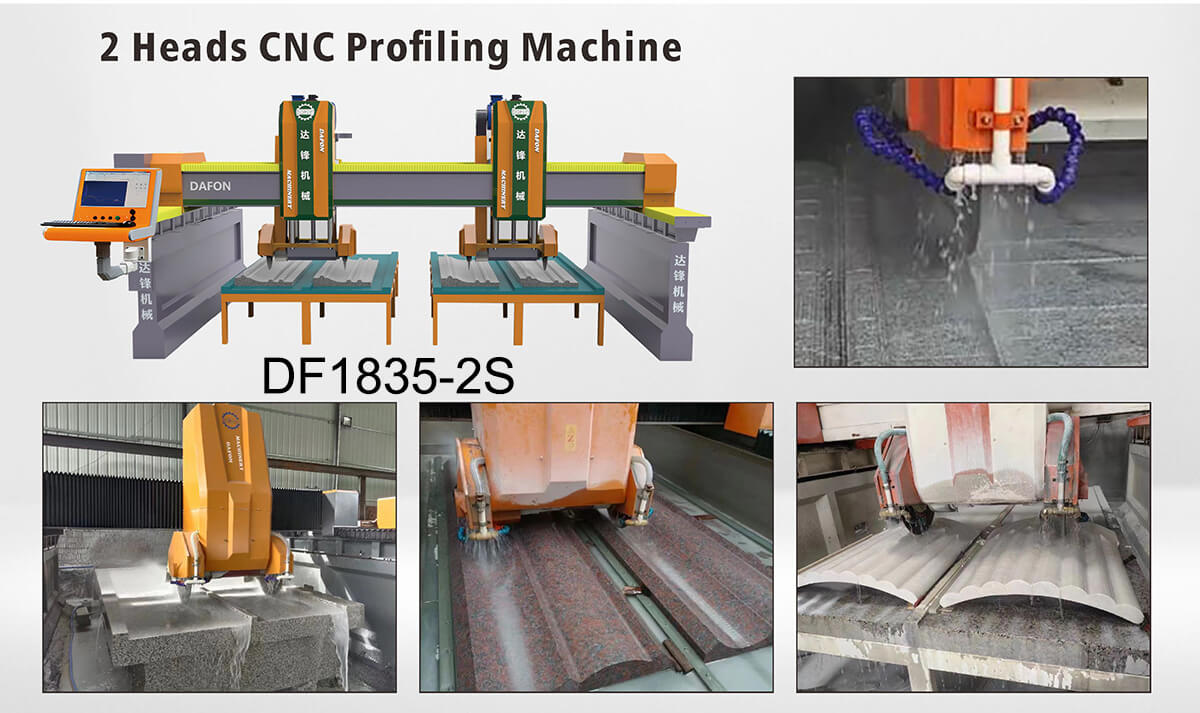

DF1835-2S :2 heads CNC Marble Profiling Machine is a CNC machine tool used for stone profiling processing. It consists of two independent hosts and can process two stone surfaces at the same time. The two profiling heads work at the same time, which can greatly improve the processing efficiency.
DF2537 Bridge Type Double Beam Stone Profiling Machine, the machine head is located between the two beams, which can achieve high processing accuracy.


marble profiling machine


Technical Parameters


Model
DF-1835
DF1835-2S
DF-2537
Machine dimensions
3550*4850(hight can customize)
6500*5300*2500mm
4500*4900(hight can customize)
Platform dimensions
1800*3200mm(customize)
1800*3200mm*2
2500*3300(customize)

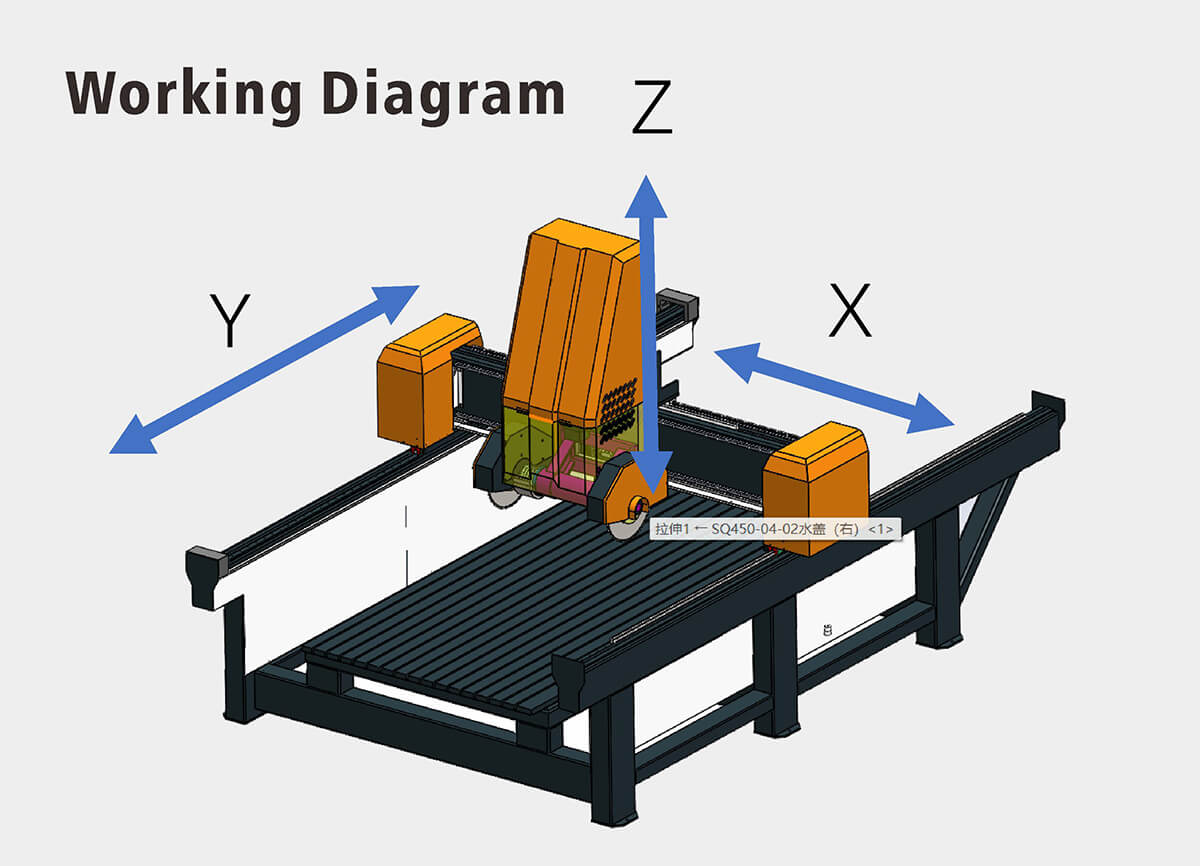

Machine stroke
1200*3300mm*420mm
920*3000mm*400mm
1700*3500mm*600mm
Stone thickness
100-1000mm
Spindle power
18.5KW
22KWx2
22KW
Saw blade spacing
880mm(customize)
950mm(customize)
950mm(customize)
Blade diameter
300-600mm
500-800mm
Operating Voltage
AC380V/50HZ
Machining accuracy
士0.05mm
Gross weigh
7T
9.5T
8T


stone profiling machine


Why choose the Dafon Stone Profiling Machine?

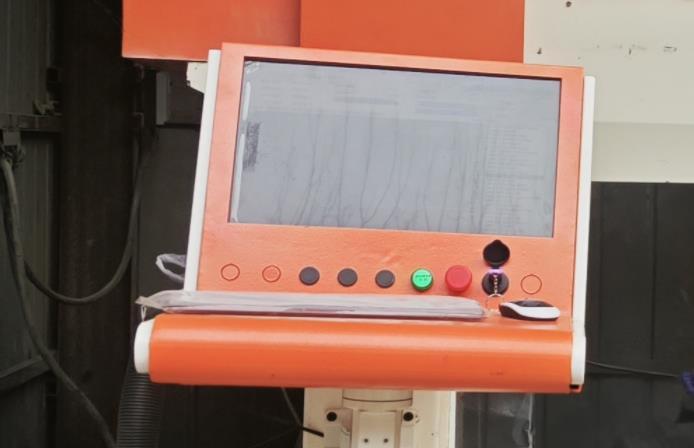

The industrial-grade control system, breakpoint resume, power-off recovery, speed control, user-friendly one-button operation, efficient and worry-free.
Compatible with domestic and foreign CAM software such as Artcam Jingdiao.
The stone profiling machine adopts a new type of heat-resistant and environment-resistant motor and driver, which runs extremely fast, has extremely high precision, and is extremely earthquake-resistant.
The electric spindle adopts high-end bearing technology, with high speed, low noise, high power, fast response, and dynamic performance and stability sufficient to meet the needs of high-speed machining.

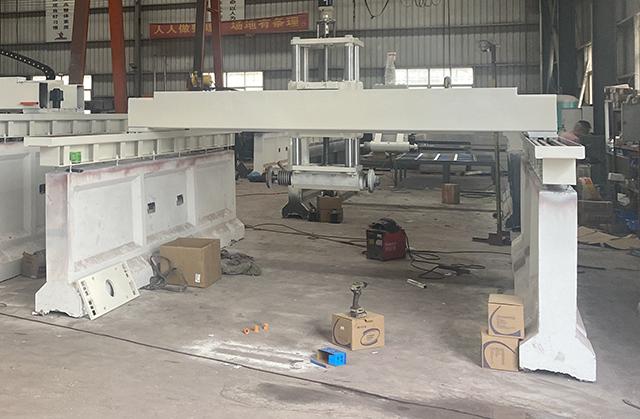

The frame, body, and beams are seamlessly welded from thickened high-strength steel and processed with high precision by a CNC machining center, making them strong, stable, and not easily deformed.
Professional high-performance vector control inverter, with excellent performance and intelligent power-saving function, the branch is stable and consumes low power.
The marble profiling machine uses Taiwanese screw rods, sliders, square rails, and other transmission components. They are of Taiwanese quality and are precise and stable, ensuring that the machine runs at high speed and precision.


cnc profile grinding machine


What types of stone can be profiled?

Stone profiling machines can be used to profile a wide variety of stone materials, including marble, granite, limestone, and sandstone. Can be used for profiling processing of tombstones, stone carvings, reliefs, murals and other stone materials


Some key points for purchasing marble profiling machines:

Processing scope: Choose the appropriate processing scope according to the size of the stone that needs to be processed.
Processing accuracy: Choose the appropriate processing accuracy according to the accuracy of the pattern that needs to be processed.
Processing function: Select the appropriate processing function according to the type of pattern that needs to be processed.
Machine tool configuration: Choose the appropriate machine tool configuration according to your own budget.

Related Resource


Start Customizing Your
CNC Stone Marble Profiling Machine!
Get Price

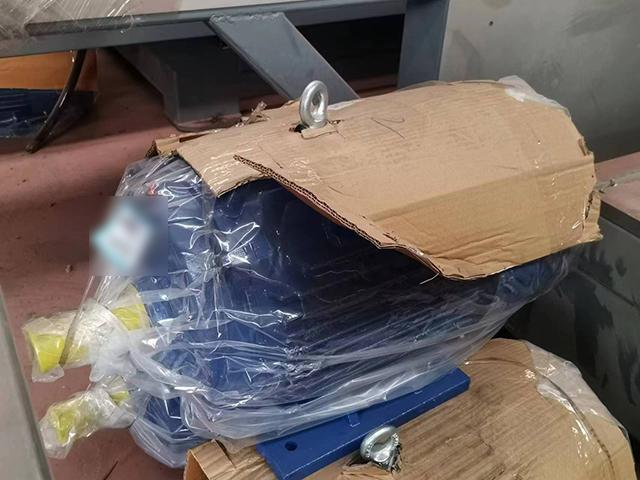

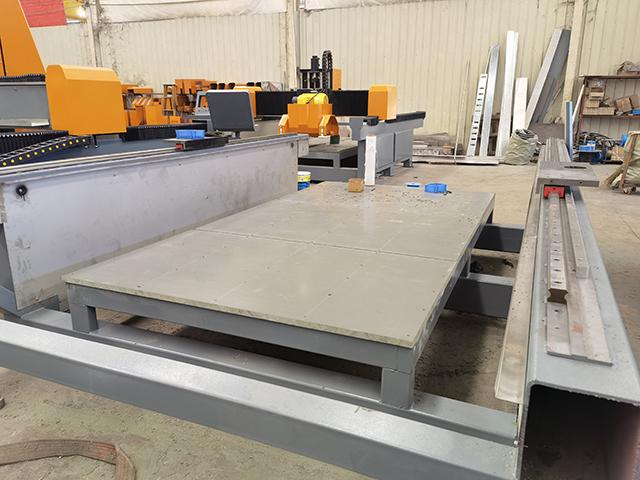

CNC Stone Marble Profiling Machine Main Parts
Related Features
Related Types
Related Effect Show Dafon Is Professional Manufacturer Of CNC Stone Marble Profiling Machine,
One Stop Solution For Your Stone!
1
1996
Since 1996
2
60+
Countries Users
3
200+
Employees
4
80+
Machine Patents
5
1000+
Global Clients
6
20000+
Square Meters

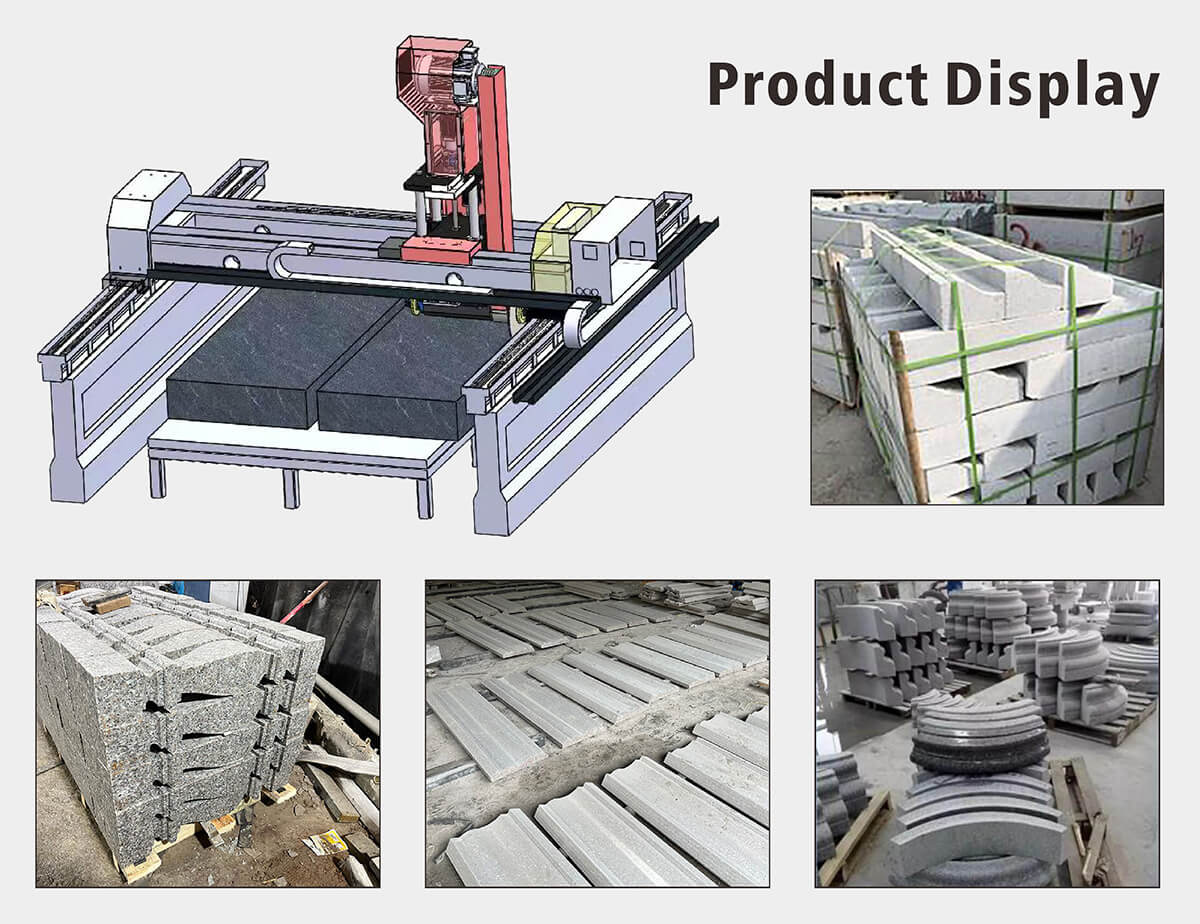

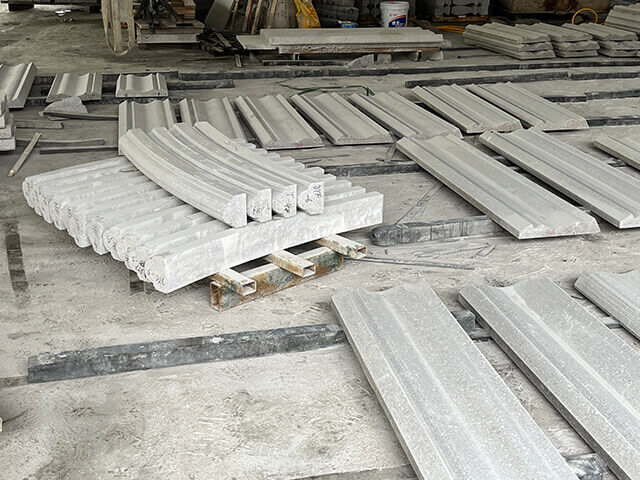

What Shapes Can be Processed by a Stone Profile Machine
What Shapes Can be Processed by a Stone Profile Machine

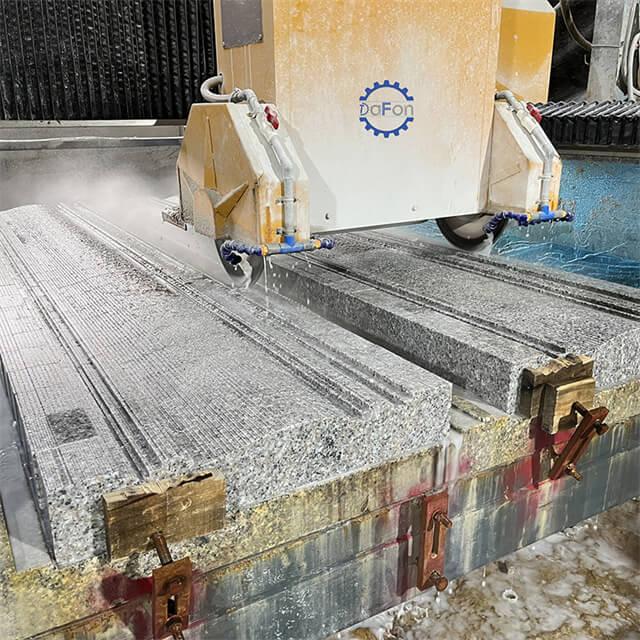

Stone profiling machines can process stone into various shapes through profiling cutting, profiling polishing, profiling grinding and other processes. Profiling is the use of profiling machine in accordance with the set trajectory to cut the stone, so as to form the desired shape.
