Horizontal Stone Edge Grinding Machine

DAFON is a leading manufacturer of Stone Floor Grinder, constantly innovating to meet the ever-changing needs of the market while providing exceptional design, manufacturing, and trading services.
Price: $15000-$18000
Brand Name: DAFON
Certification: CE, ISO
Model Number: DFMB-8T/12T-3015
Power: 53KW
Weight: 4200KG
Application: Machinery & Hardware, Construction, Stone
Place of Origin: CHINA.
Trading Method: FOB/CIF/EXW Xiamen Port
Minimum Order Quantity: 1 SET
Delivery Time:90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

lntroduction

Stone edge grinding machine is a fully automatic stone processing equipment. lt is equipped with grinding wheels of different shapes to process the edge of stone according to the process of rough grinding---fine grinding---polishing. The overall structure of edge grinding machine is advanced and reasonable. The standard of finished stone products is high and the processing efficiency is high. Having a Horizontal edge grinding machine is equivalent to having 15 people helping work at the same time, and it can meet the needs of various edge shapes.

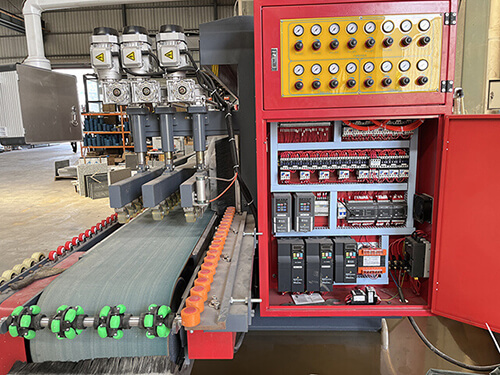

stone edge cutting machine


Performance Feature

High-tech CNC system: This machine adopts CNC technology and is equipped with a touch screen and frequency conversion speed control device. it has a memory function and an electric pressure lever, which can realize manual and automatic operation, as well as automatic compensation of abrasives and quick replacement of grinding heads, which greatly improves the efficiency of the machine. Processing efficiency and operational convenience.

Multifunctional special-shaped processing: It can process stones of different sizes and thicknesses, including large and small round edges, French edges, duckbill edges, and other special-shaped linear shapes. It can also complete rough grinding, fine grinding, and polishing at one time, making the processed round edges Smooth and close to panel brightness.

Efficient replacement of labor: This machine has an advanced and reasonable structure, fast processing speed, and high precision. lt can effectively replace a large number of manual operations, improve production efficiency, and reduce process defects. The maximum processing speed can reach 4m/minute, equivalent to 15 workers in normal stone processing workload.

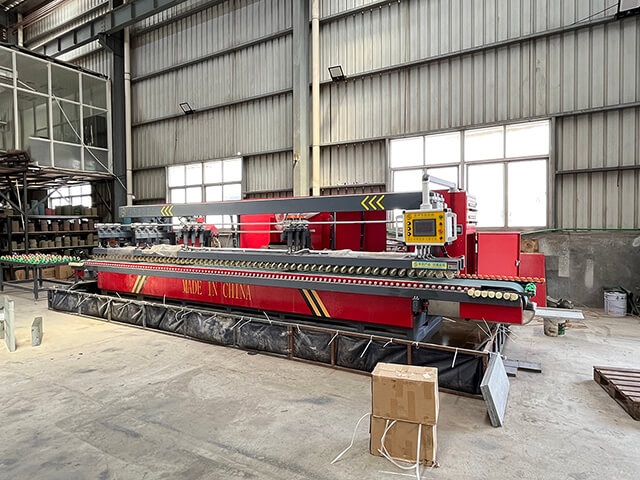

edge grinding machine

Technical Parameter

Application Unit MB-8T/12T-3015
Feed output speed m/min 1-4
Min.processing of stone mm 10*100*300
Max.processing of stone mm 30*3000*1500
Max.processing thickness of stone  mm 100
Total power kw 53
Body weight kg 4200
Boundary dimensions mm 9000*1900*2000
Main unit cabinet size mm 5000*1900*2000

Application

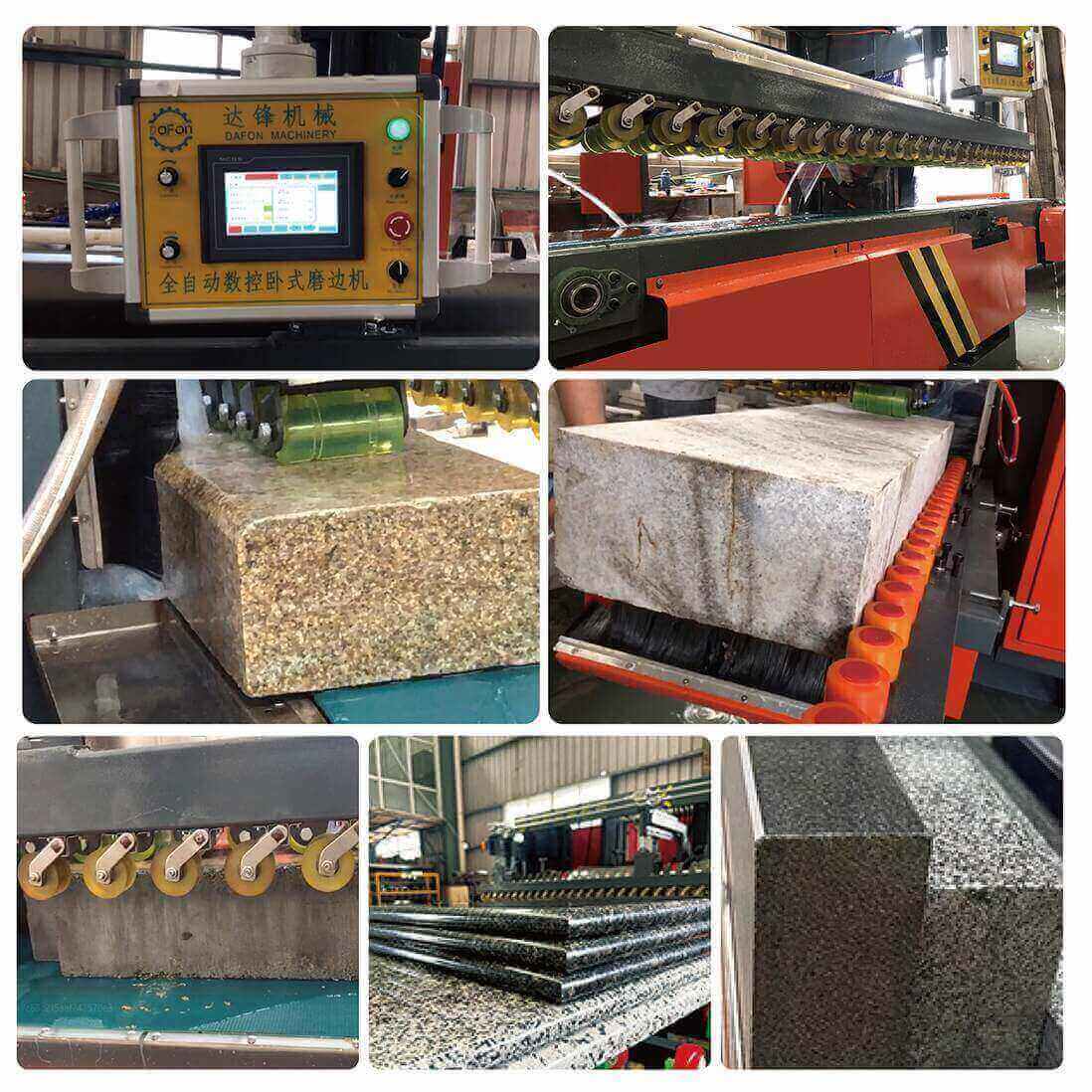

edge grinding machine

edge grinding machine

Related Resource


Horizontal Stone Edge Grinding MachineRelated Parts

Conveyor Belt

Conveyor Belt


Thickness of processing:10-80mm The minimum processing size of slab : 10-80mm*80mm

Side Polishing

Side Polishing


Various shaped edges, rough grinding, fine grinding and polishing in one process.

Side Curve Modeling Processing

Side Curve Modeling Processing


Side chamfering, Grinding of various flat stone edges to suit the size and thickness of the stone.

Related Process Know More About Process
Horizontal Stone Edge Grinding MachineRelated Effect Show
What Shapes Can the Stone Edge Grinding Machine Cut

1. What Shapes Can the Stone Edge Grinding Machine Cut

Grinding is a stone processing technology that grinds one or several edges of the stone into a geometric shape. Stone processing common grinding edge: chess edge, French chess edge, French edge, large round edge, 1/4 round edge, double knuckle edge, begonias edge, concave round edge (crescent e
Related Applications Our safe and stable stone machine are widely applied in the field of stone processing.

Customer Reviews



Score
 Remove

Review Title

Review Text

   Outstanding Precision and Efficiency in Edge Grinding


Mr. Samir  2024-06-12

The marble edge grinding machine is an exceptional piece of equipment. Its precision in shaping and polishing marble edges is unparalleled, ensuring a flawless finish every time.
