Price:
Model Number: DF-350B
Power: 16.2KW
Application: Machinery & Hardware, Construction, Stone
Weight: 3500KG
Brand Name: DAFON
Certification: CE, ISO
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.
Designed for 45-degree cutting solutions:
1. Suitable for processing marble, granite, quartz stone, ceramic tiles, and other materials.
2. Based on basic cutting, 45-degree bevel cutting is added, which can be used to make stone products such as stairs and kitchen countertops that require 45-degree angle splicing.
Handle corners and edges quickly and accurately
1. By cutting two ceramic or stone slabs at an angle, their ends can be joined to form a perfect 90° angle.
2. It can quickly and accurately handle the corners and edges of stone and ceramic tiles, making the cutting surface smooth and smooth without burrs.
3. Indispensable for stone companies that process stairs and kitchen countertops for a long time
The 45-degree cutting function is an essential process for making stone products such as stairs and kitchen countertops.

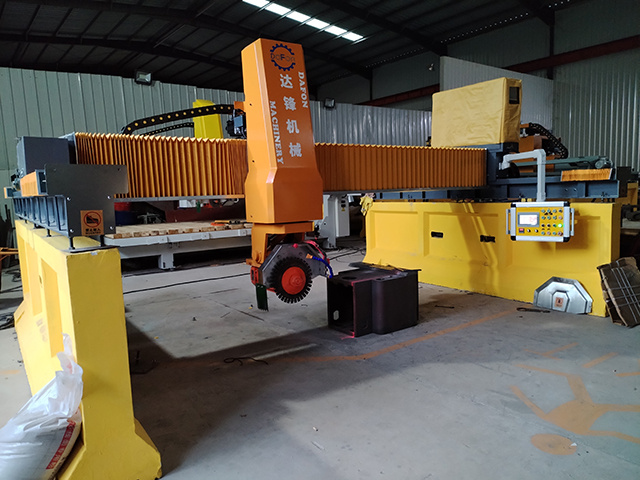

Dafon DF-350B 45 degree marble cutting machine can help stone companies improve processing efficiency and reduce production costs.
Other features
1.Made of high-quality steel, the structure is sturdy and durable.

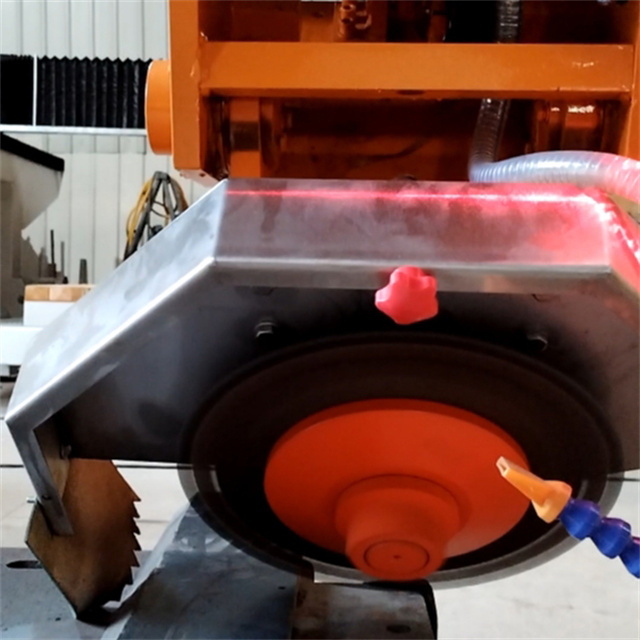

2.Equipped with a high-precision motor, it has high cutting accuracy and stable operation.
3.The operation is simple and convenient, and the cutting angle and depth can be adjusted.
Technical Data
Name | DF-350B |
|
Blade diameter | 250-350 | mm |
Max.cutting size | 3200*2000*50 | mm |
Worktable dimension |
3200*2000*50 |
mm |
Blade rotate degree | 0-90° |
° |
Blade tilt degree |
0-45° |
° |
worktable tiltting degree |
0-85° |
° |
worktable rotating degree |
can customized |
° |
Main motor | 11 | kw |
total motor | 16.2 | kw |
water consumption | 3.5 | m³/h |
weight | 3500 | kg |
Dimension | 5000*3000*2700 | mm |
