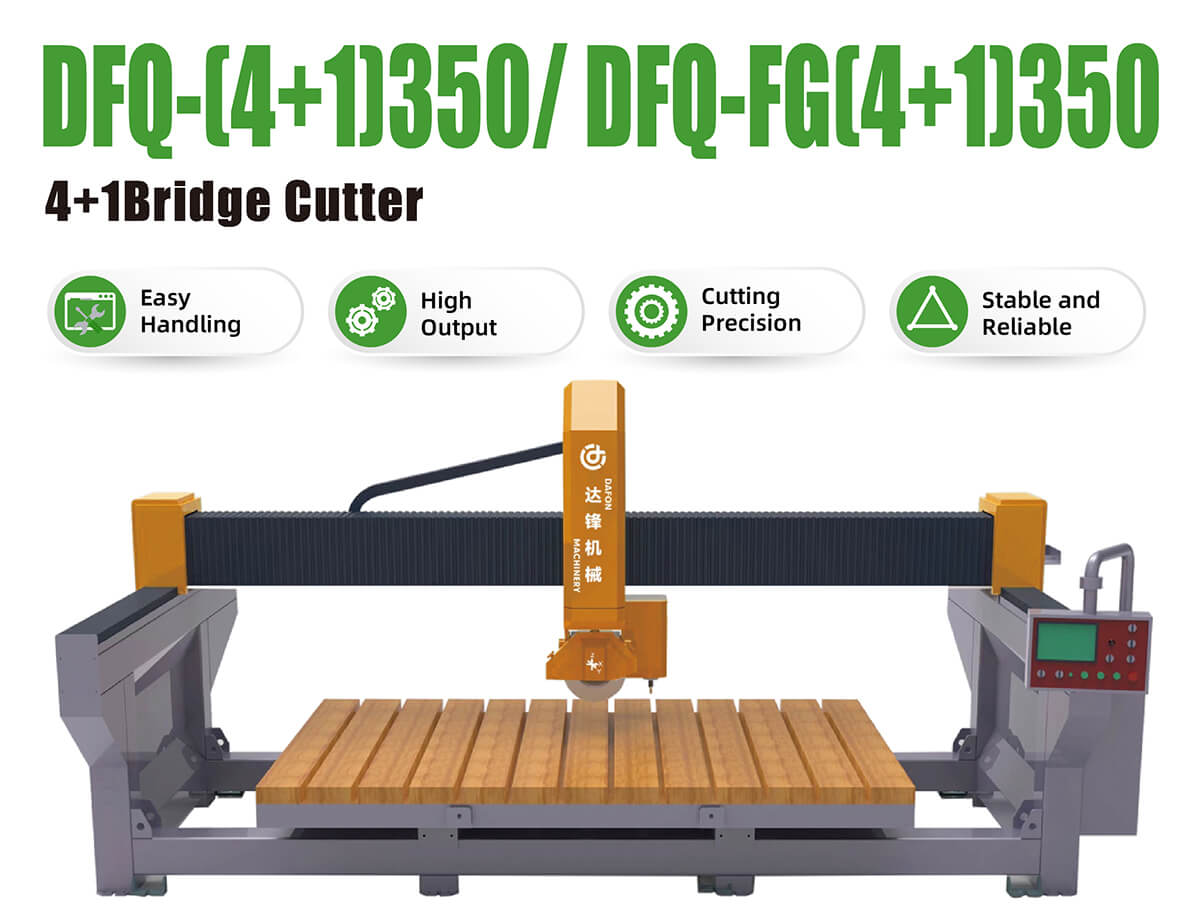

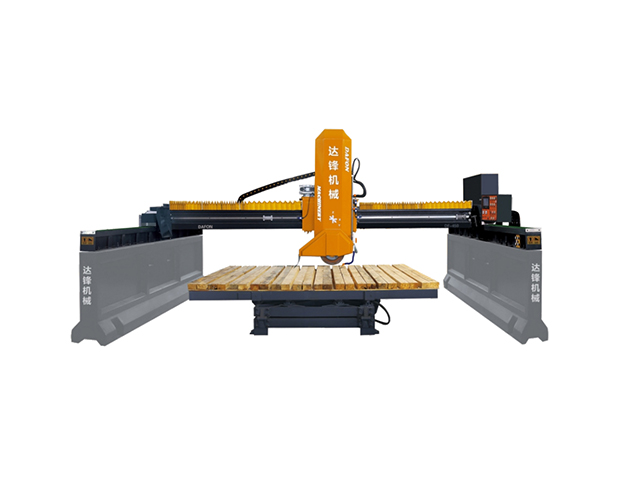

4+1 Axis Bridge Cutter


Price: $10500-$19000
Model Number: DFQ-(4+1)350/DFQ-FG(4+1)350
Power: 24.5kw
Application: cutting marble granite quartz
Weight: 3700kg
Place of Origin: CHINA.
Brand Name: DAFON
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time:90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote
  • Introduction

4+1 Axis Bridge Cutter is based on the 4axis bridge cutter machine and adds an engraving head that is suitable for drilling or cutting granite, marble, and quartz stone countertops and slabs

Bridge Cutter

  • Features
Simple operation

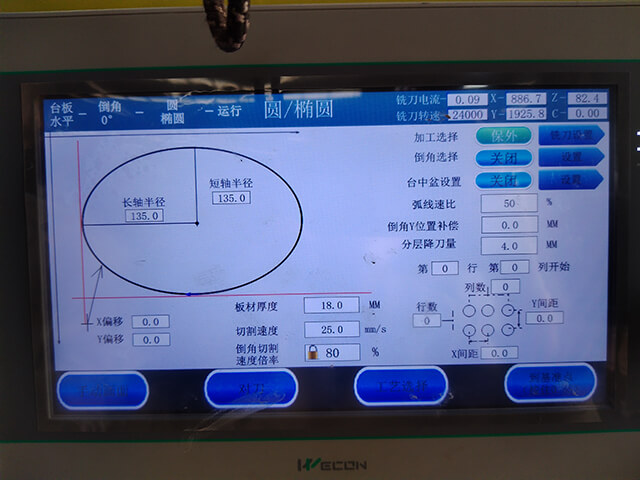

It adopts a PLC programmable control system (optional CNC system) and human-computer inter-active operation interface, making operation simple.
High Cutting Accuracy
Using high-precision linear guide rails and P6-level high-precision grinding helical gears to ensure cutting accuracy and quality.
Low Energy Consumption
Using high-efficiency and energy-saving motors, the same output has lower energy consumption, and the overall cost can be reduced by about 15% to 20%.
Good Stability
Equipment motors, bearings, hydraulic accessories, etc. are all from domestic and international brands, and the operation is more stable.
High Flexibility

The equipment adopts an integrated body and an integrated casting iron of the beam, which has good overall rigidity. The machine head can be rotated and tilted to meet different cutting needs

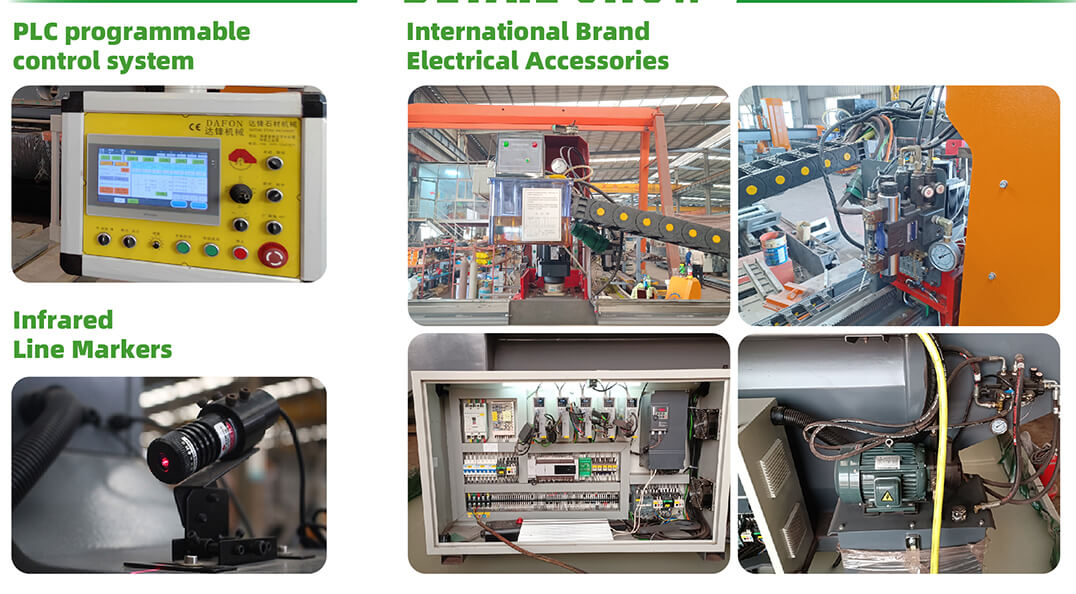

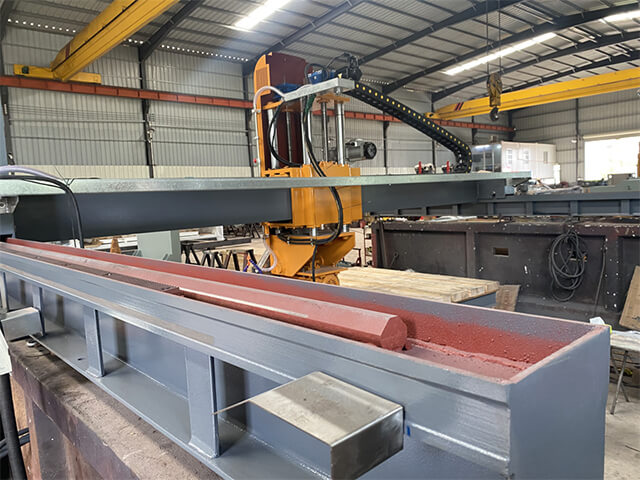

  • Detail Show

Bridge Cutter

  • Specification

Name Unit DFQ-F(4+1)350
Blade Diamter mm 250-400
Max.cutting Size mm
3200*2000*50
worktable dimension mm
3200*2000*50
Blade rotate degree 0-360
Blade tilt degree n°
0-45
worktable tilting degree n°
0-85
worktable rotating degree
n°
no
water consumption m³/h 3.5
Main motor kw 15
spindle motor kw
7.5
total motor kw
24.5
dimension mm 5000*3000*2700
weight kg 3700

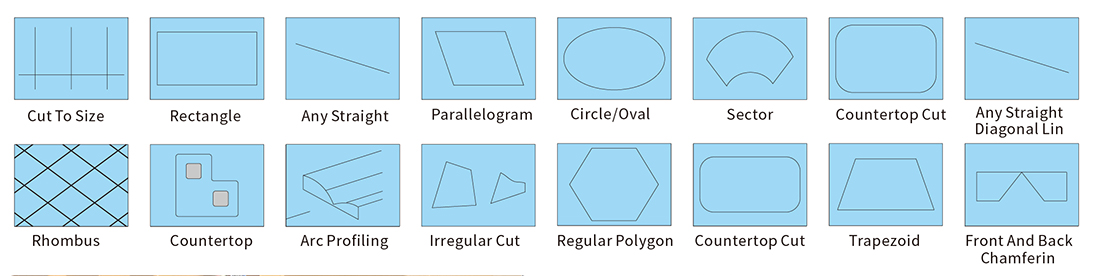

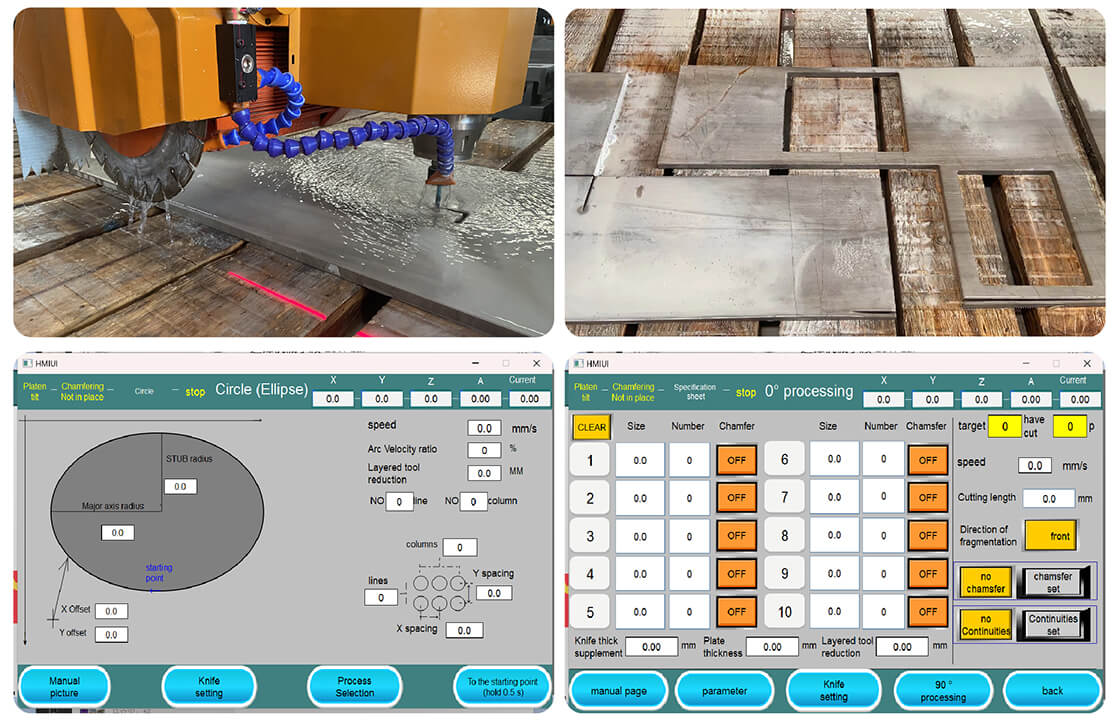

  • Cuttable Graphics

Bridge Cutter

Bridge Cutter

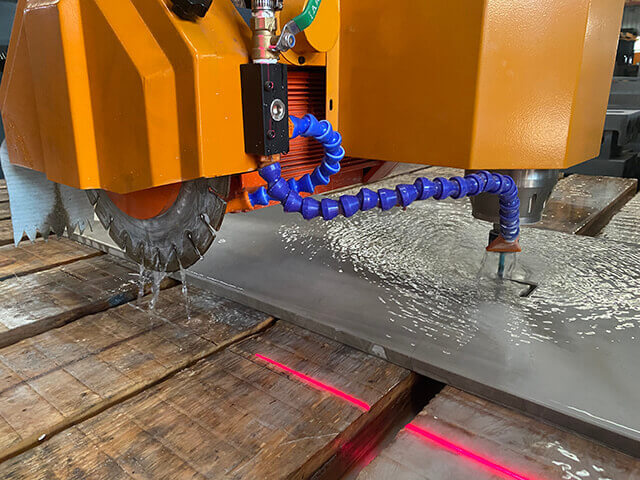

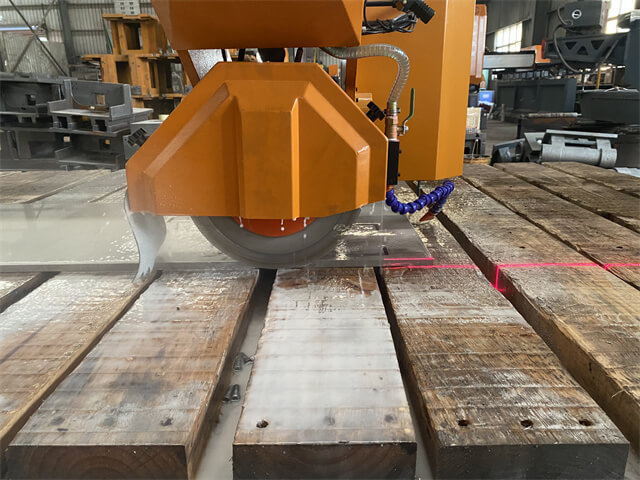

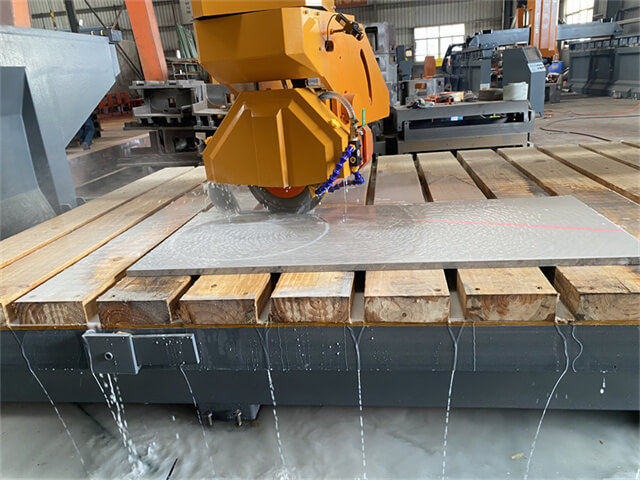

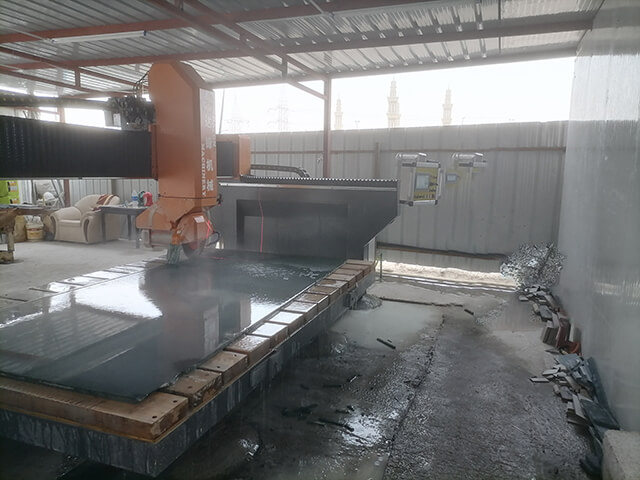

  • Application

Bridge Cutter

Related Resource


Start Customizing Your
4+1 Axis Bridge Cutter!
Get Price
4+1 Axis Bridge CutterMain Parts

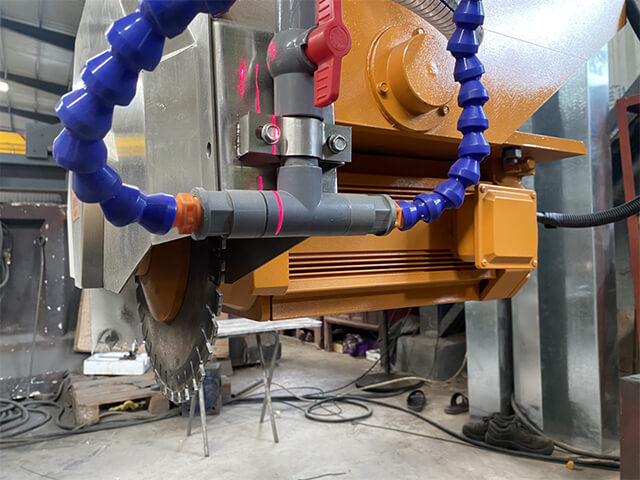

Motor

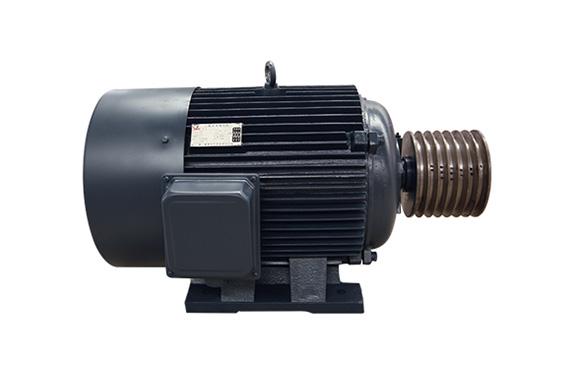

1. Motor

Motor: branded motor in China(Eagle brand or Mindong brand for optional)

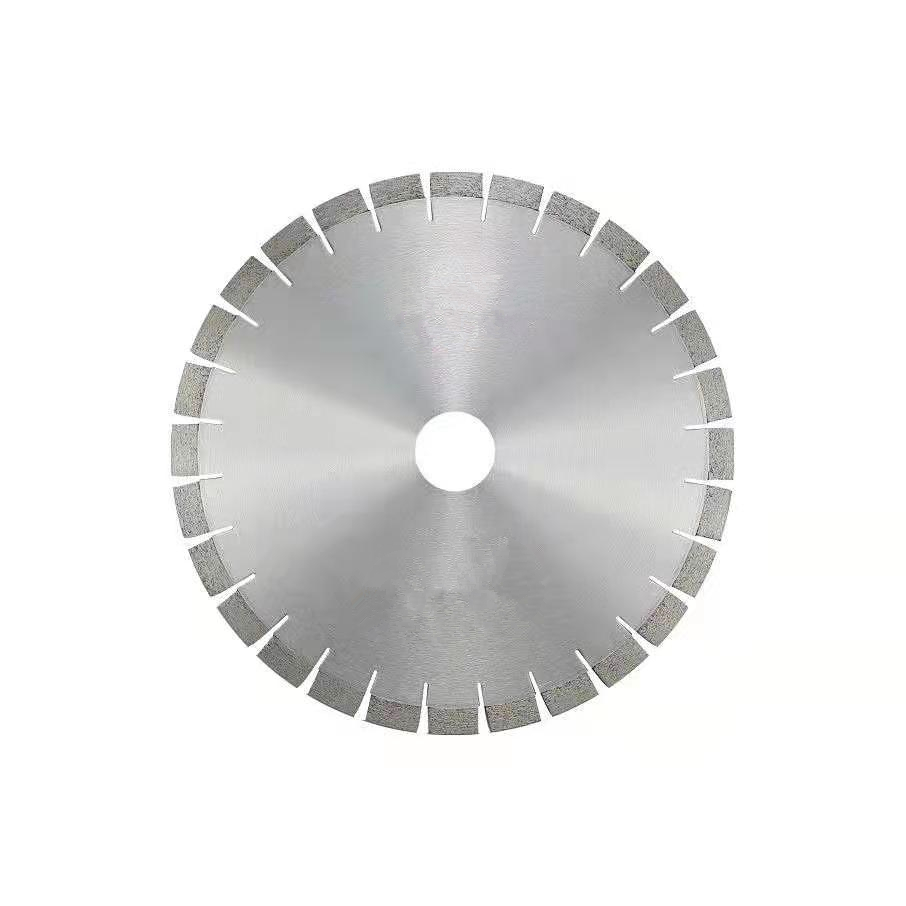

2. Blade

fast and shape saw blade for any material such as granite marble sandstone limestone cutting etc.
Blade
