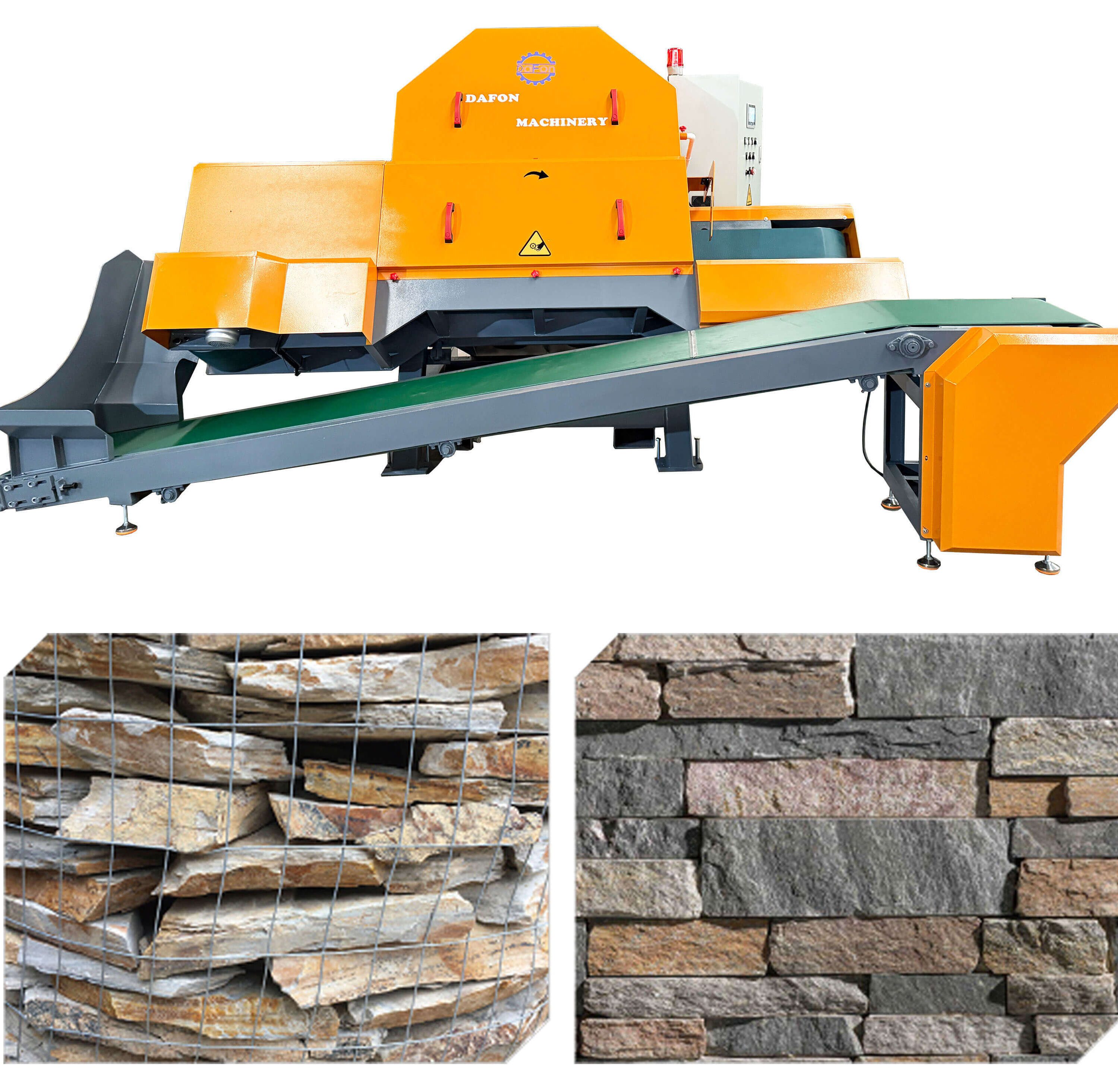

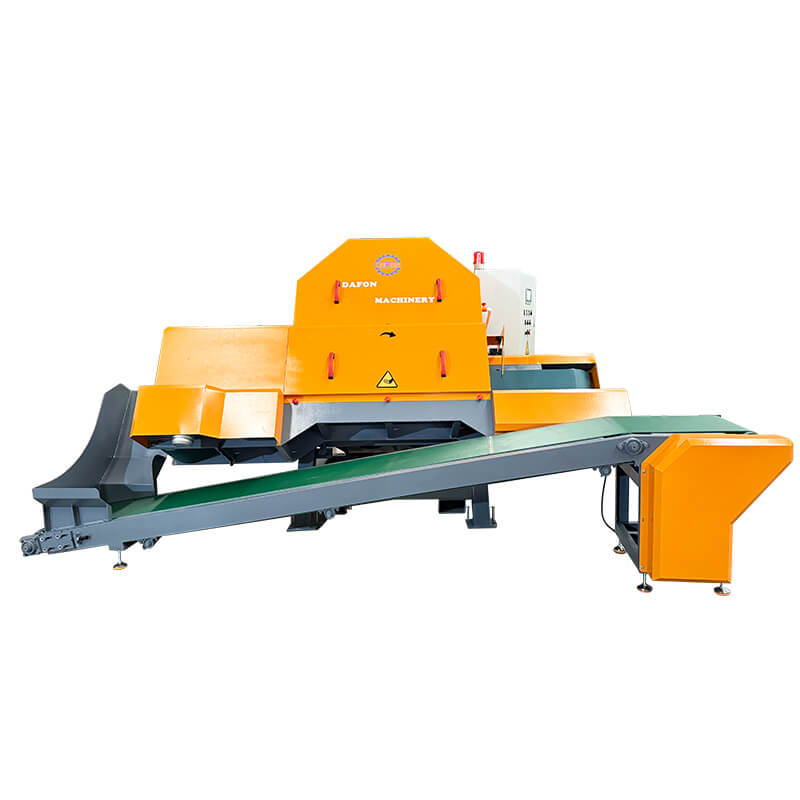

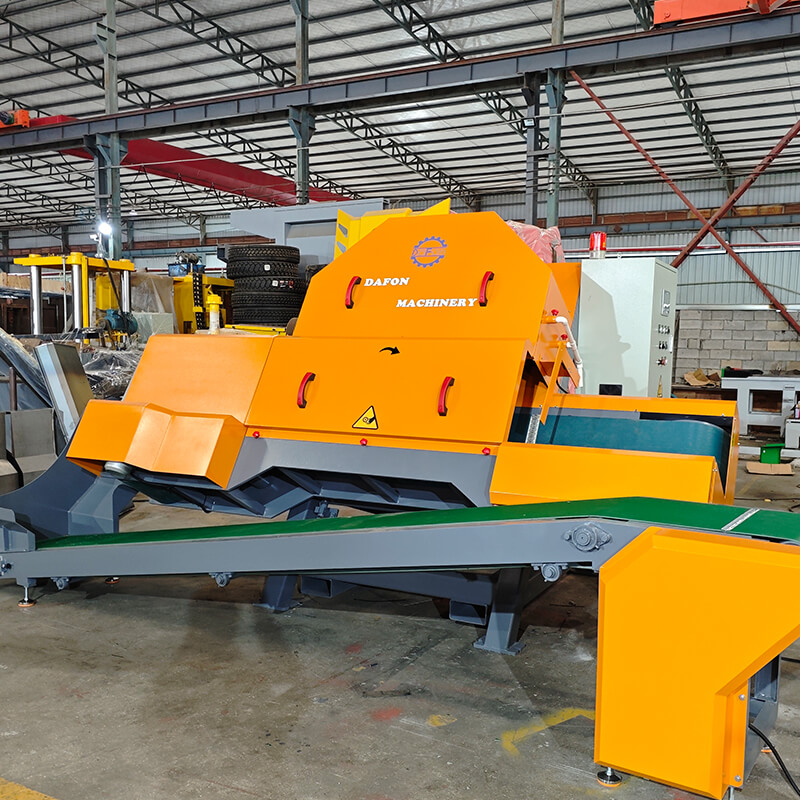

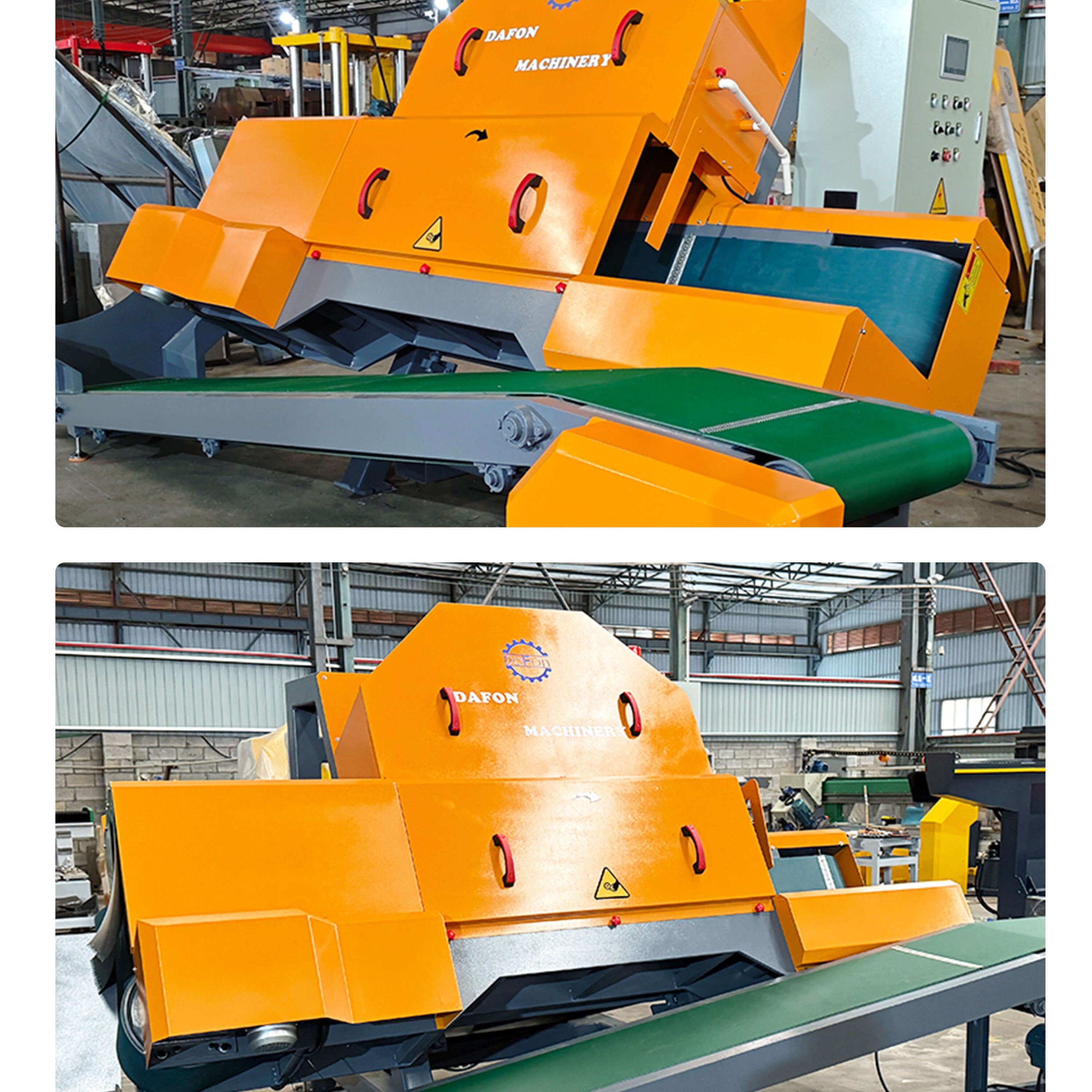

Thin Stone Veneer Saw
Thin Stone Veneer Saw - Image 2
Thin Stone Veneer Saw - Image 3
Thin Stone Veneer Saw - Image 4

Thin Stone Veneer Saw

This equipment is designed for planing and cutting marble, granite, limestone, and other common stones with high processing speed, high efficiency, and low operating cost. It features adjustable mainframe speed and an intelligent adjustable conveyor system, which automatically adapts the conveyor speed to the cutting hardness of different stone materials, ensuring stable performance, optimal efficiency, and consistent cutting quality.

Blank Form (#5) (#6)
Category:

Description

Name Unit DFY-R22 DFY-R45
Load saw blade diameter mm 800 1000~1200
Blade speed standard(adjustable) rpm Max.900 Max.780
Max.stone height mm 0-350 0-450
Max.stone thickness mm 20-220 20-270
Max.cutting depth mm 280 350-450
Saw blade adjustable distance (up/down) mm 0-120 0-250
Saw blade adjustable distance (back/forth) mm 0-220 0-250
Conveyor belt dimensions (L*W*H) mm 5970*280*7 6800*400*7
Conveyor belt speed (adjustable) mm/min 600-2450 600-2450
Water consumption m³/h 3.5 4
Amperage A 86/43 172/86
Electric power source — 380V 50HZ

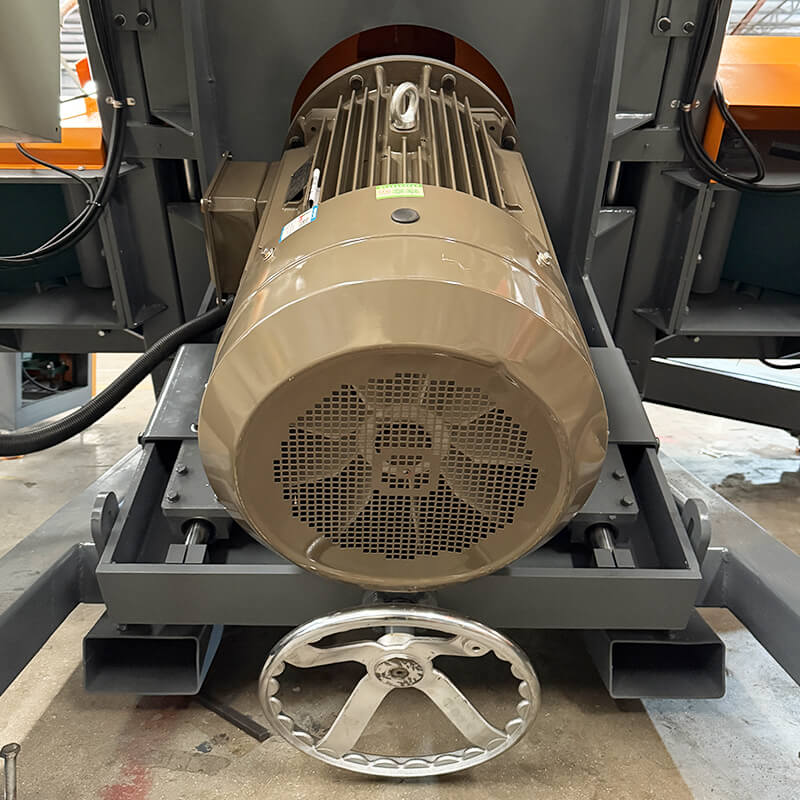

Main motor power kw 30HP(22kw) 60HP(45kw)
Weight kg 2300 3200
Overall dimensions (L*W*H) mm 2850*1900*1800 3300*2180*2180
