AC 5-axis Waterjet

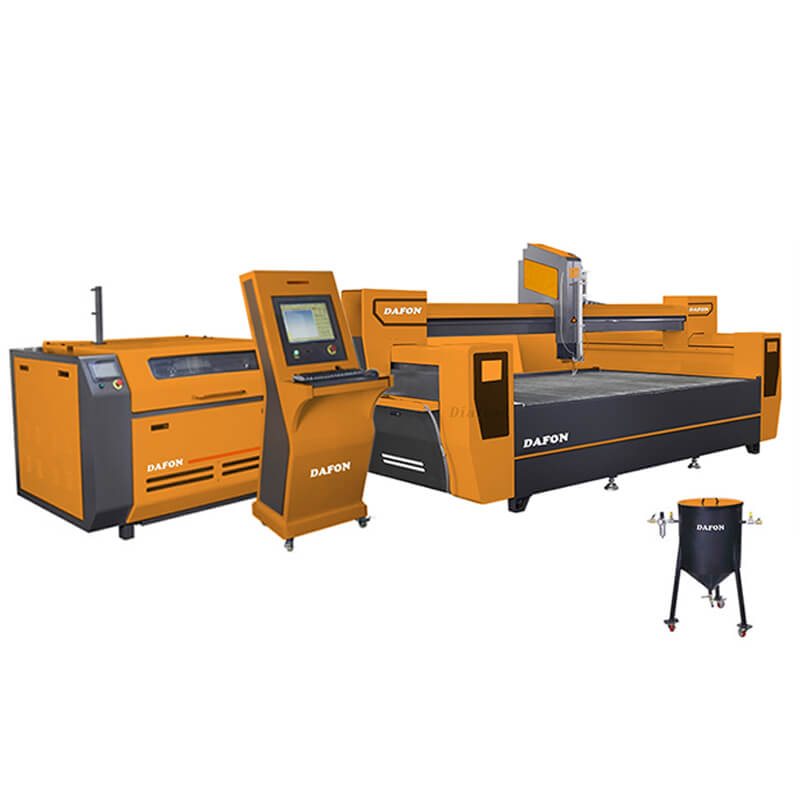

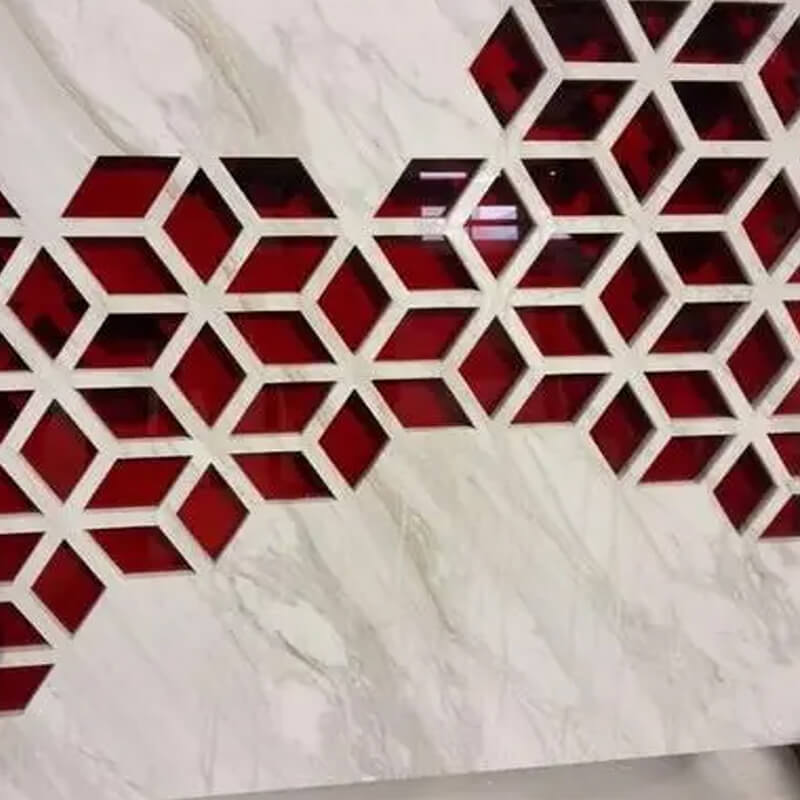

This five-axis waterjet cutting machine integrates a cutting platform, CNC control system, high-pressure system, and automatic sand feeding system, delivering precise and efficient shaped cutting for stone, tile, glass, and metal industries. It supports software-mapped graphics for processing any design with high accuracy and flexibility. A reinforced structure, high-pressure water switching system, and oil-foam screw guide lubrication ensure smooth operation, high precision, long service life, and stable production efficiency. Stainless steel protective shields and an optimized sand valve design make maintenance and cleaning easy while effectively preventing backflow and improving system reliability.

Blank Form (#5) (#6)
Category:

Description

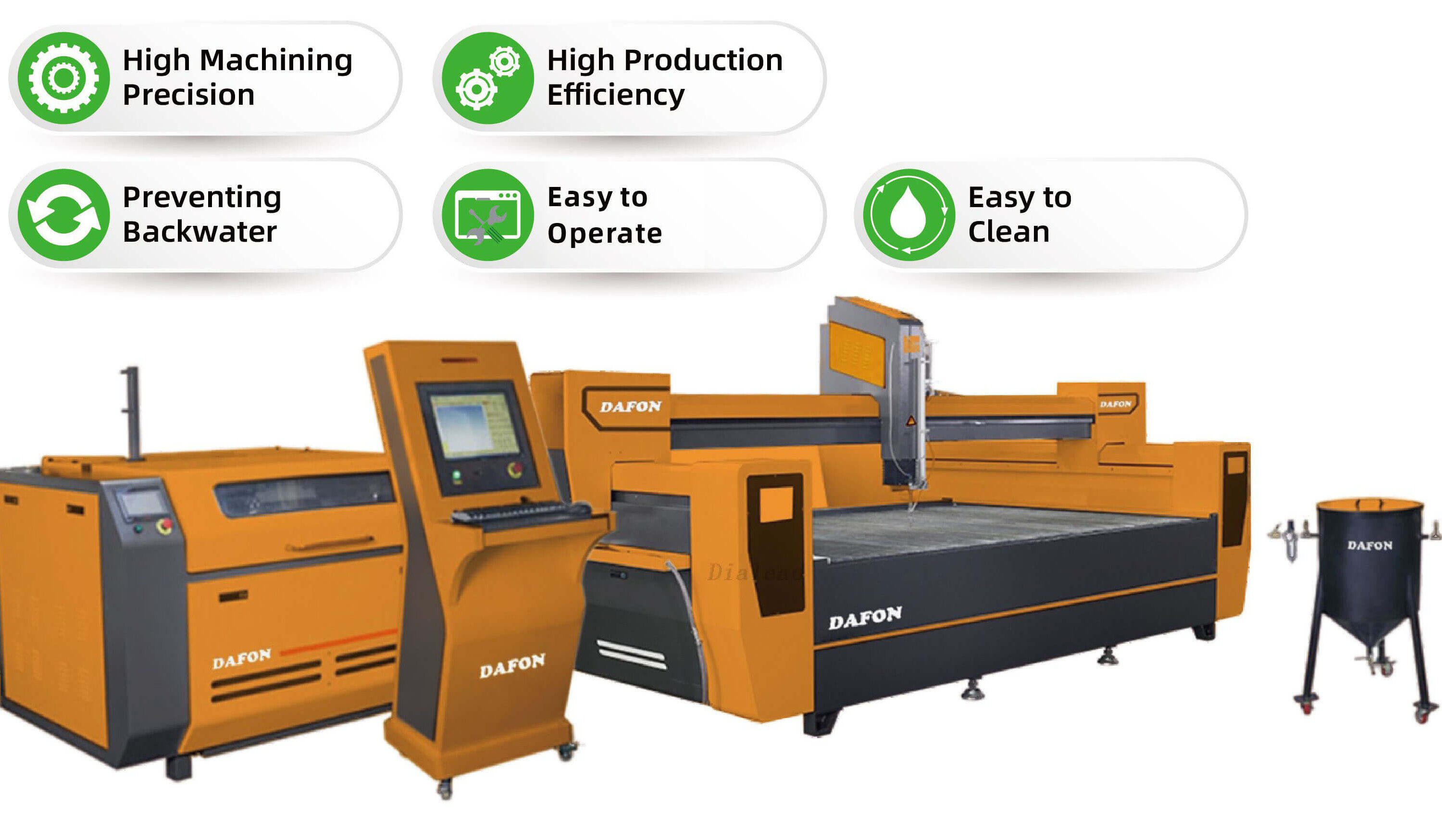

🔹 Omni-Directional Cutting for Unlimited Creativity

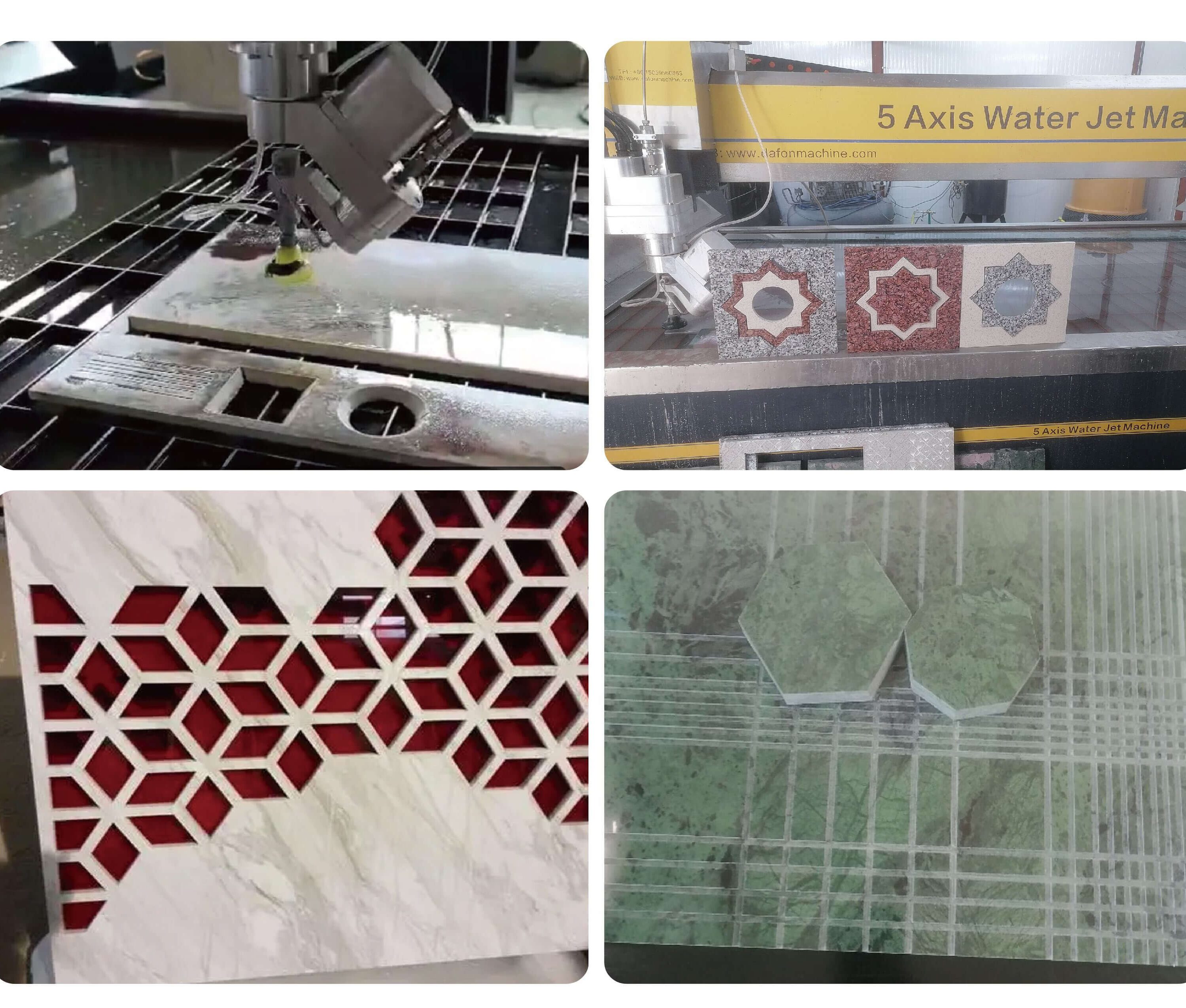

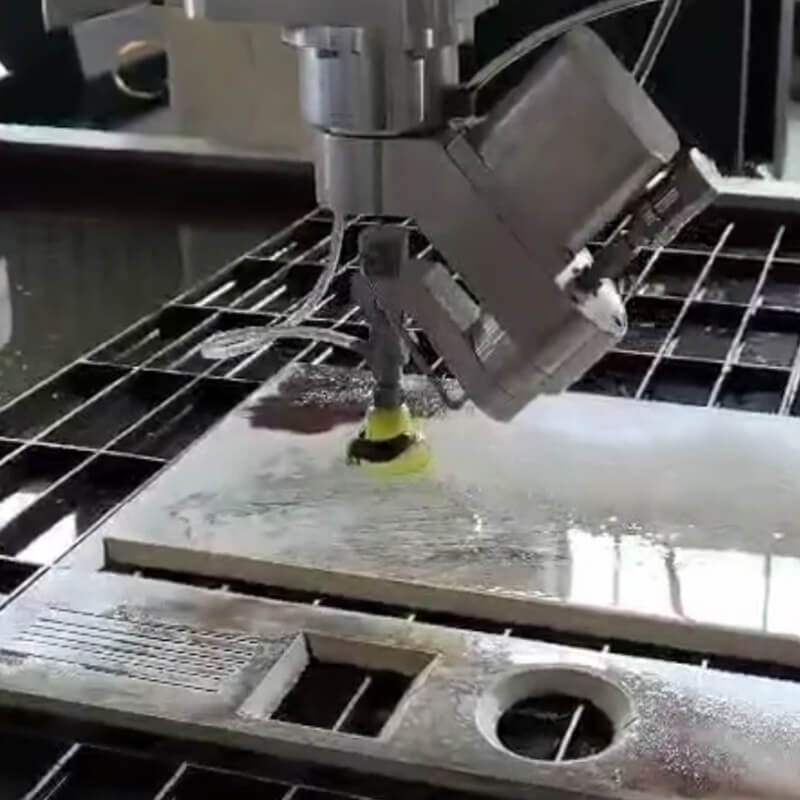

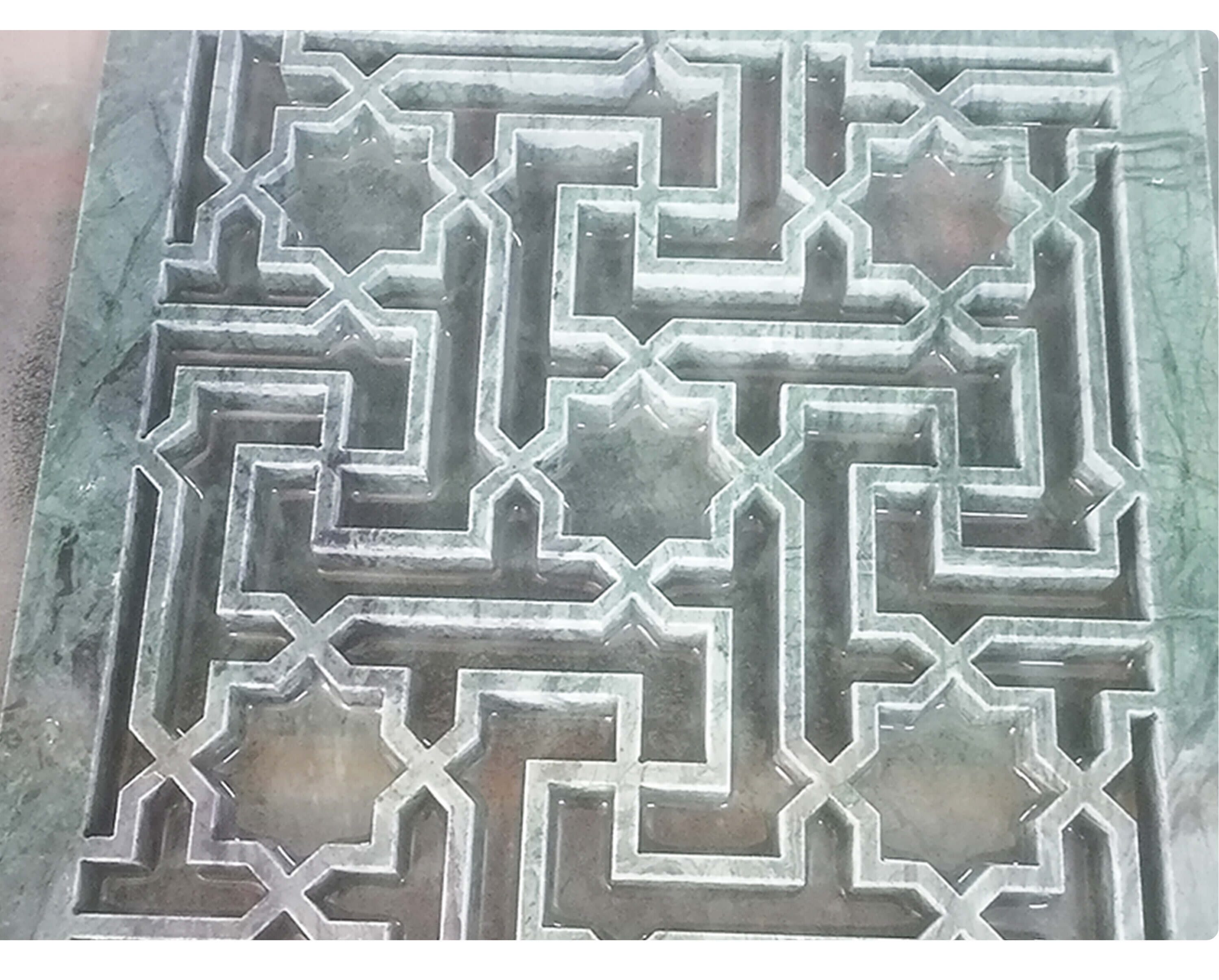

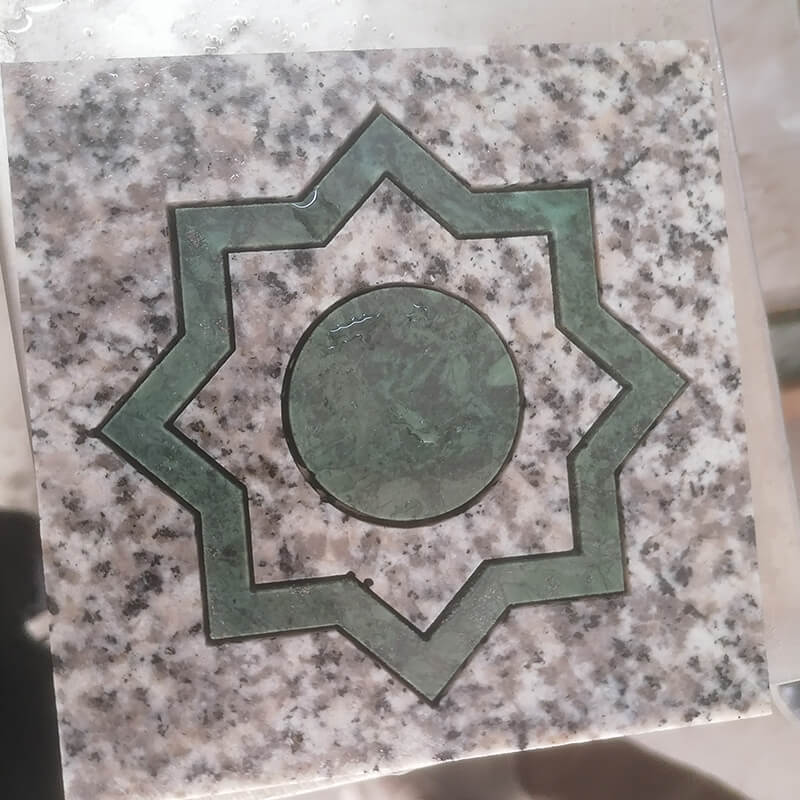

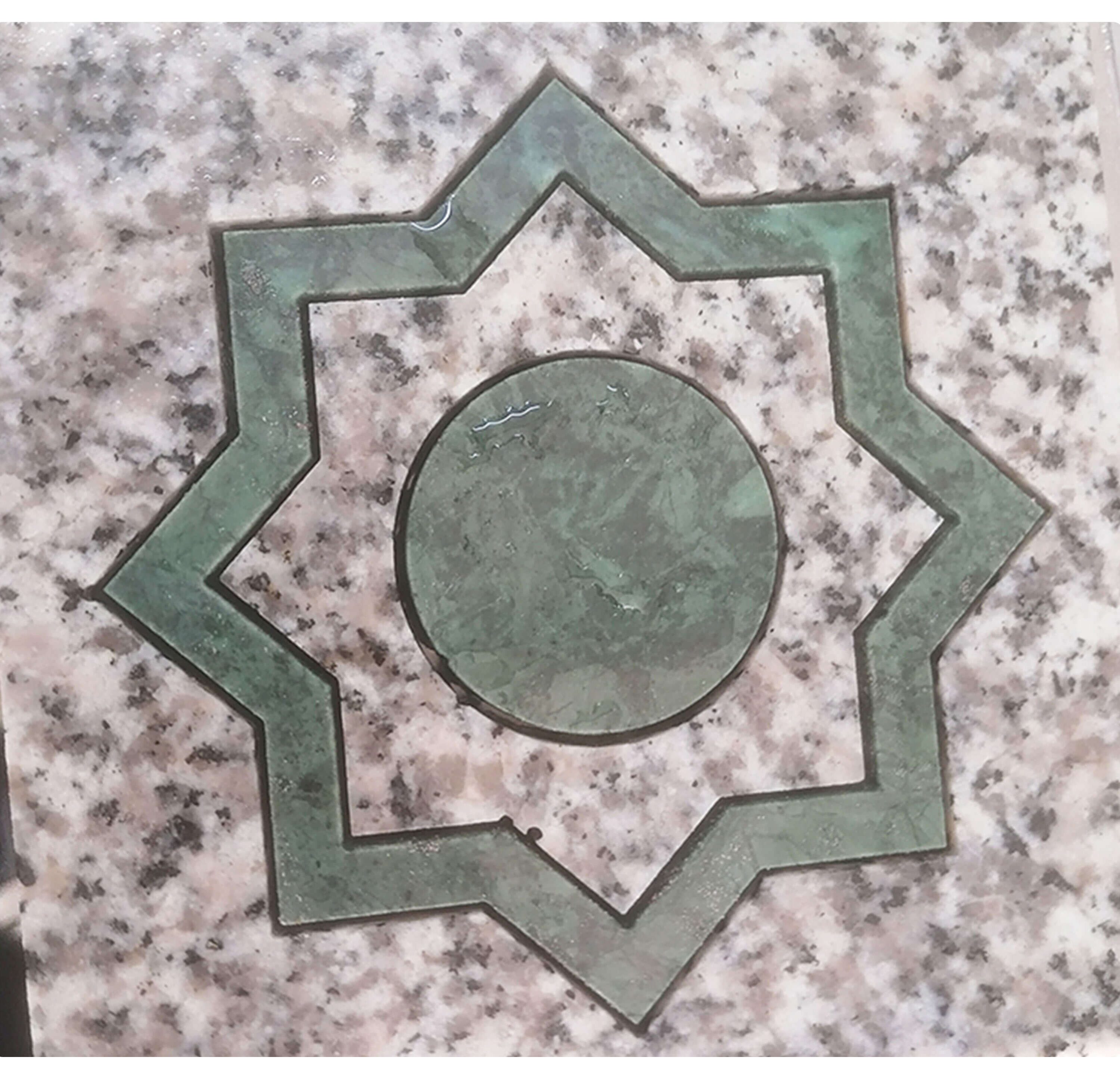

CNC control and intelligent software mapping enable precise cutting of any plane curve, complex shapes, or intricate graphics—turning your design ideas into reality with ease.

🔹 Ultra-High Precision & Stability
Reinforced bed structure ensures smooth, vibration-free operation even at high cutting speeds, delivering consistently accurate results every time.

🔹 Maximized Production Efficiency
Automatic high-pressure water switching combined with intelligent sand feeding dramatically boosts cutting speed and throughput, reducing downtime and increasing output.

🔹 Durable, Long-Lasting Performance
Advanced oil-foam screw guide lubrication plus waterproof and dustproof design significantly extends machine lifespan, keeping your investment productive for years.

🔹 Effortless Maintenance & Cleaning
Stainless steel shielding and an innovative sand valve design prevent backflow, making cleaning and maintenance fast, simple, and worry-free.

Cutting platform & CNC operating system

Name Unit DFY-AC3015
Scope of processing mm 3000*1500
Cutting precision mm ±0.01
Repeatability mm ±0.02
Drive component SM servo motor
X-axis no-load running speed mm/min 0~6000
Y-axis no-load running speed mm/min 0~6000
Z-axis no-load running speed mm/min 0~200
A-axis angle n° 0-10
B-axis angle n° 0-10
Z-axis travel mm 150
User interface OS Chinese/English can be switched at will
Rated pressure MPa/Psi 450



High voltage systems

Name Unit DFY-AC3015
Power (output) kw 37
Oil Pump Displacement ML/R 80
Flow rate L/min 3.7
Extrusion nozzle mm 0.33
Rated pressure mpa/psi 450
Work pressure mpa/psi 10~380
Boost ratio rp 20:1
Sand pipe bore size mm 1.02
Water nozzle (jewel) diameter mm Φ0.05~0.33
Maximum sand consumption g/min 0~350
Maximum number of strokes times/min 50
Rated pressure MPa/Psi 450
