Description

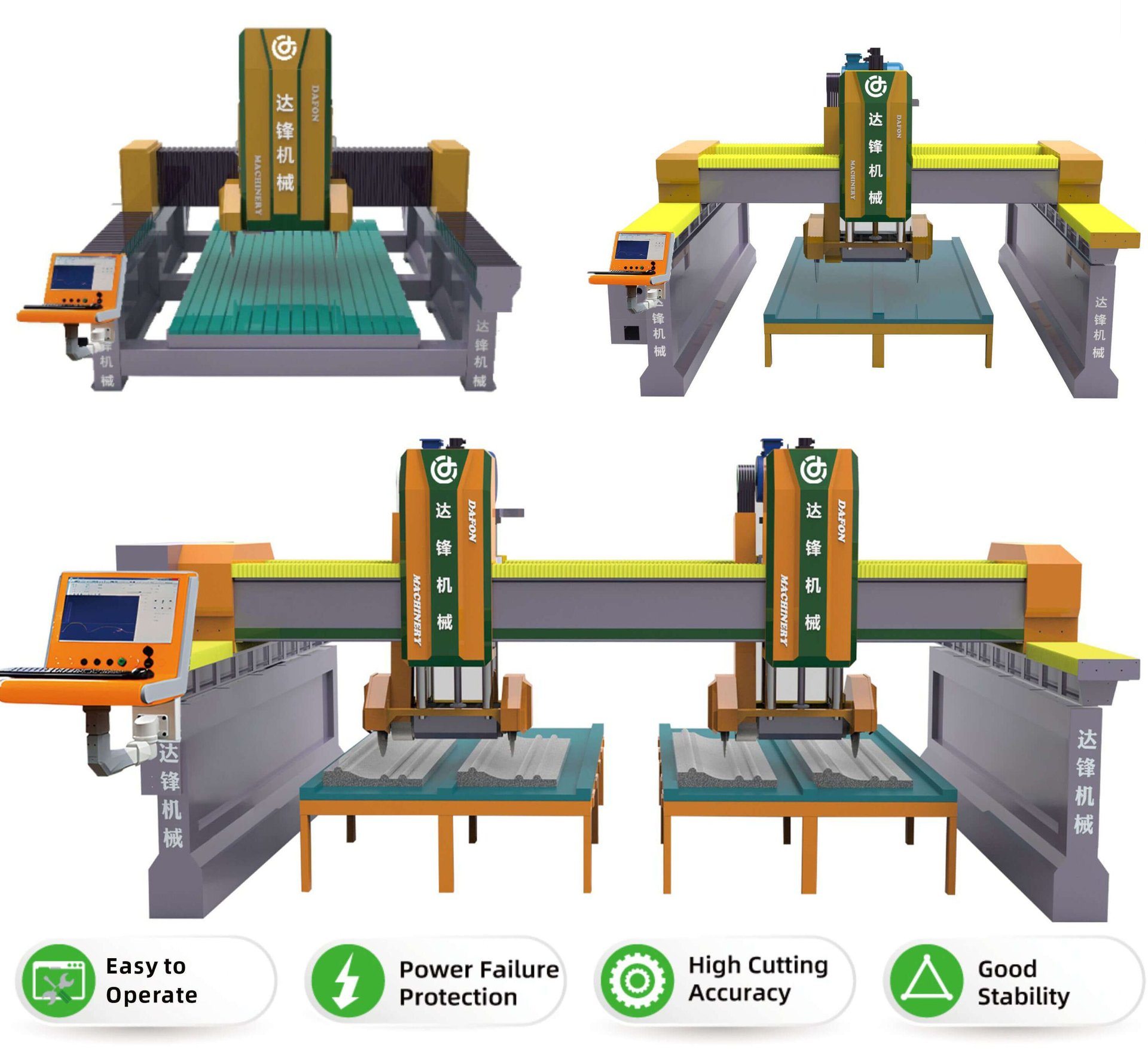

Solid and Stable Structure
Seamlessly welded high-strength steel body and CNC-processed beam ensure durability, rigidity, and resistance to deformation.
Easy and Remote Operation
One-button speed control, CAM software compatibility, and remote drawing import simplify operation and improve workflow efficiency.
Power-Failure Protection
Industrial-grade control system with power-failure memory allows engraving to resume smoothly after interruptions.
High Precision and Stability
Heat-resistant servo motors, high-speed electric spindle, and precision transmission components deliver fast, accurate, and stable profiling.
Low Energy Consumption
Professional vector control inverter optimizes performance while reducing power usage and operational costs.
| Name | Unit | DFY-YF88320 | DFY-DF88320 | DFY-SF95320 | DFY-TF95320 |
| Total power | kw | 26 | 26 | 30 | 58 |
| Main motor power | kw | 18.5 | 18.5 | 22 | 22*2 |
| Number of saw blades | pcs | 2 | 2 | 2 | 4 |
| Blade diameter | mm | Φ350~600 | Φ350~600 | Φ350~600 | Φ350~600 |
| Distance between saw blades | mm | 880 | 880 | 950 | 950 |
| Worktable size | mm | 1800*3300 | 1800*3200 | 2000*3300 | 2000*3300 |
| Worktable height | mm | 450 | 660 | 460 | 460 |
| Maximum cutting depth | mm | 50mm(Blade Diameter350mm)
170mm(Blade Diameter600mm) |
50mm(Blade Diameter350mm)
170mm(Blade Diameter600mm) |
50mm(Blade Diameter350mm)
170mm(Blade Diameter600mm) |
50mm(Blade Diameter350mm)
170mm(Blade Diameter600mm) |
| Maximum stroke | mm | X-axis：1000 Y-axis：3450 Z-axis：500 | X-axis：1200 Y-axis：3300 Z-axis：500 | X-axis：1400 Y-axis：3350 Z-axis：500 | X-axis：1400 Y-axis：3350 Z-axis：500 |
| Maximum processing size (L*W*H) | mm | Hanging double saw blades 350mm：3200*800*460
Hanging Single Saw Blade 350mm：3200*900*460 Hanging double saw blades 600mm：3200*800*340 Hanging Single Saw Blade 600mm：3200*900*340 |
Hanging double saw blades 350mm：3200*800*460
Hanging Single Saw Blade 350mm：3200*1000*460 Hanging double saw blades 600mm：3200*800*340 Hanging Single Saw Blade 600mm：3200*1000*340 |
Hanging double saw blades 350mm：3200*900*550
Hanging Single Saw Blade 350mm：3200*1150*550 Hanging double saw blades 600mm：3200*900*420 Hanging Single Saw Blade 600mm：3200*1150*420 |
Hanging double saw blades 350mm：3200*900*570
Hanging Single Saw Blade 350mm：3200*1150*570 Hanging double saw blades 600mm：3200*900*450 Hanging Single Saw Blade 600mm：3200*1150*450 |
| Water consumption | m³/h | 4 | 4 | 4 | 8 |
| Transition system | ds | Y-axis 4-track, X-axis 3-track,
Z-axis 4 track |
Y-axis 4-track, X-axis 3-track,
Z-axis 4-track |
Y-axis four rails, X-axis double rails + guide, Z-axis four guide columns | Y-axis four rails, X-axis double rails + guide, Z-axis four guide columns |
| Lubrication system | ois | XY-oil-based | XY-oil-based | XY-oil-based | XY-oil-based |
| Run command (computing) | ri | G-code | G-code | G-code | G-code |
| Processing progress | mm | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Overall dimensions (L*W*H) | mm | 4800*3200*2770 | 4750*3650*2870 | 5400*4070*3180 | 5400*6150*3180 |
| Weight | t | 6.5 | 7 | 8 | 9.5 |
