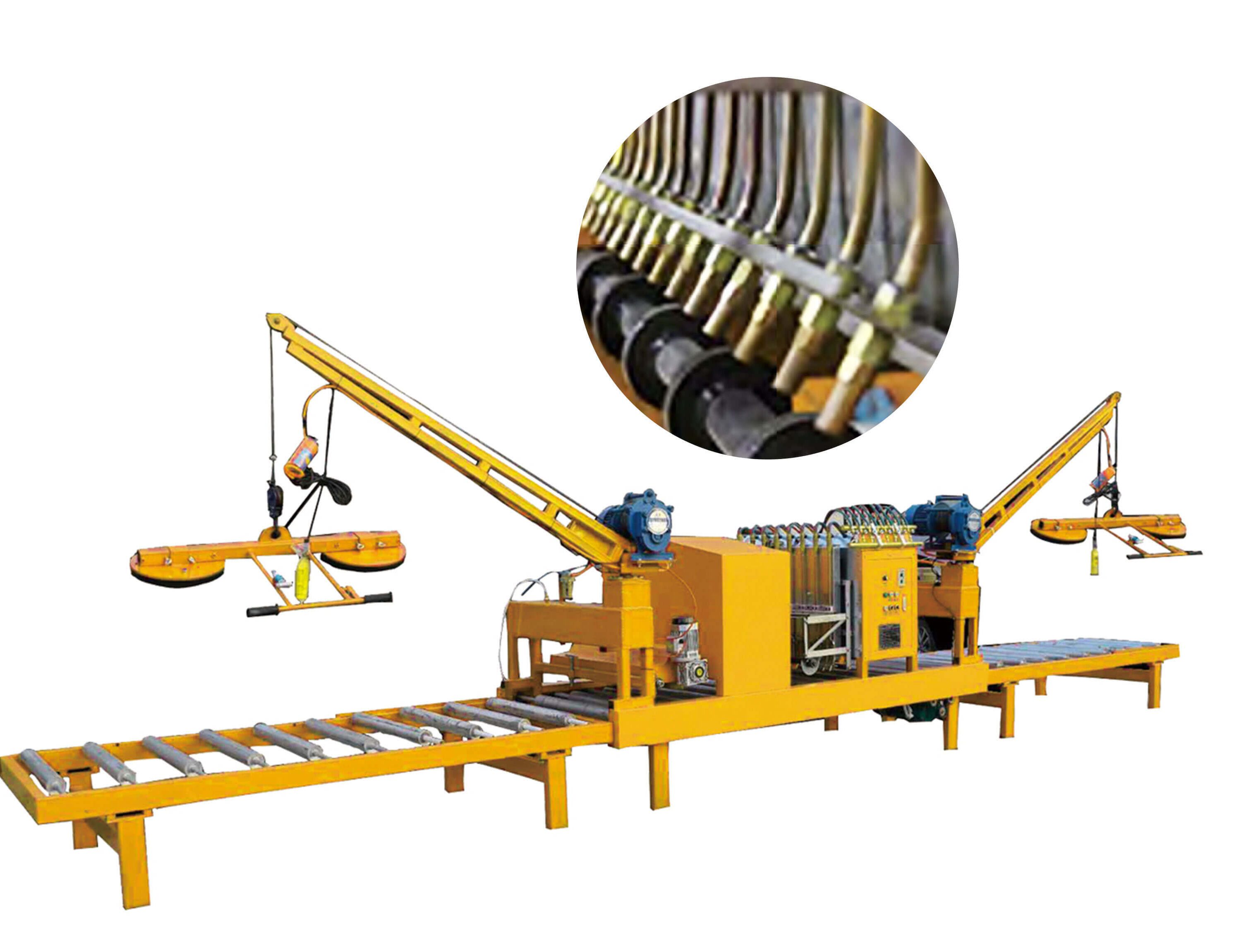

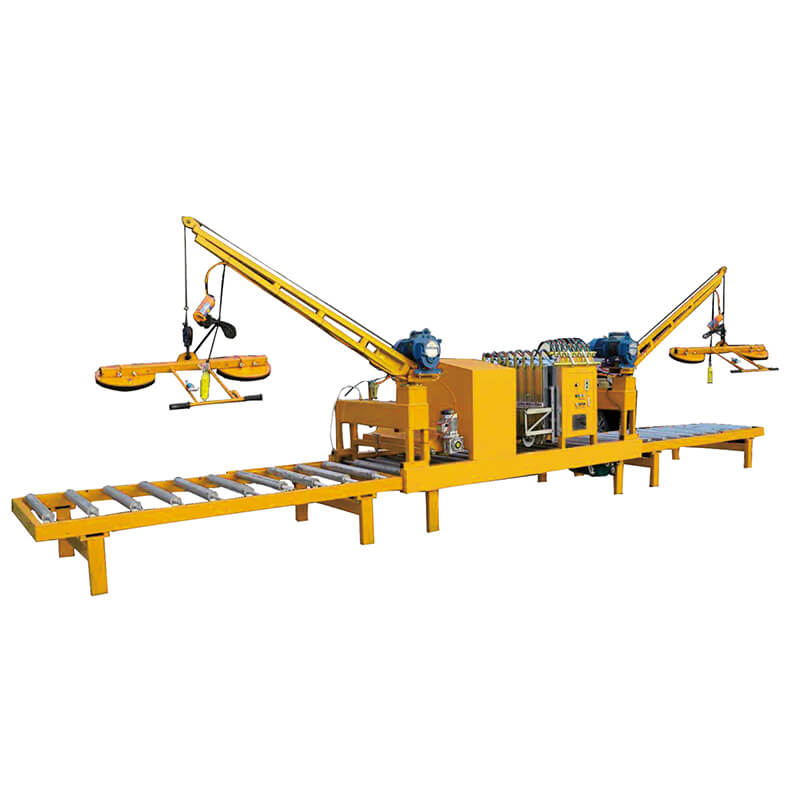

Stone Slab Flaming Machine

This equipment features a conveyor belt, heating and cooling devices, and an intelligent control system to fully automate the slab burning process. Slabs are conveyed into the furnace chamber, heated to the preset temperature, rapidly cooled, and processed with minimal manual intervention. Designed for simple operation, high automation, energy efficiency, environmental protection, and high productivity, it is ideal for burning and processing materials such as granite. Optional full-automatic suction slab machines can be added to further enhance production efficiency.

Blank Form (#5) (#6)

Description

Name Unit DFB-S800
Nozzle No. mm 16
Working width mm 600~850
Working height mm 15~120
Work speed ㎡/h 120~150
Combustion gas c-gas LPG/propylene
Combustion-supporting gas cs-gas Liquid oxygen/Gaseous oxygen
Gas consumption kg/㎡ 0.125
Liquid oxygen kg/㎡ 0.5
Dust collection fan cu C31
Suction plate weight kg 400
Suckers size mm 300
Suckers number pcs 4
Weight kg 2500
Overall dimensions (L*W*H) mm 9000*1800*2000
