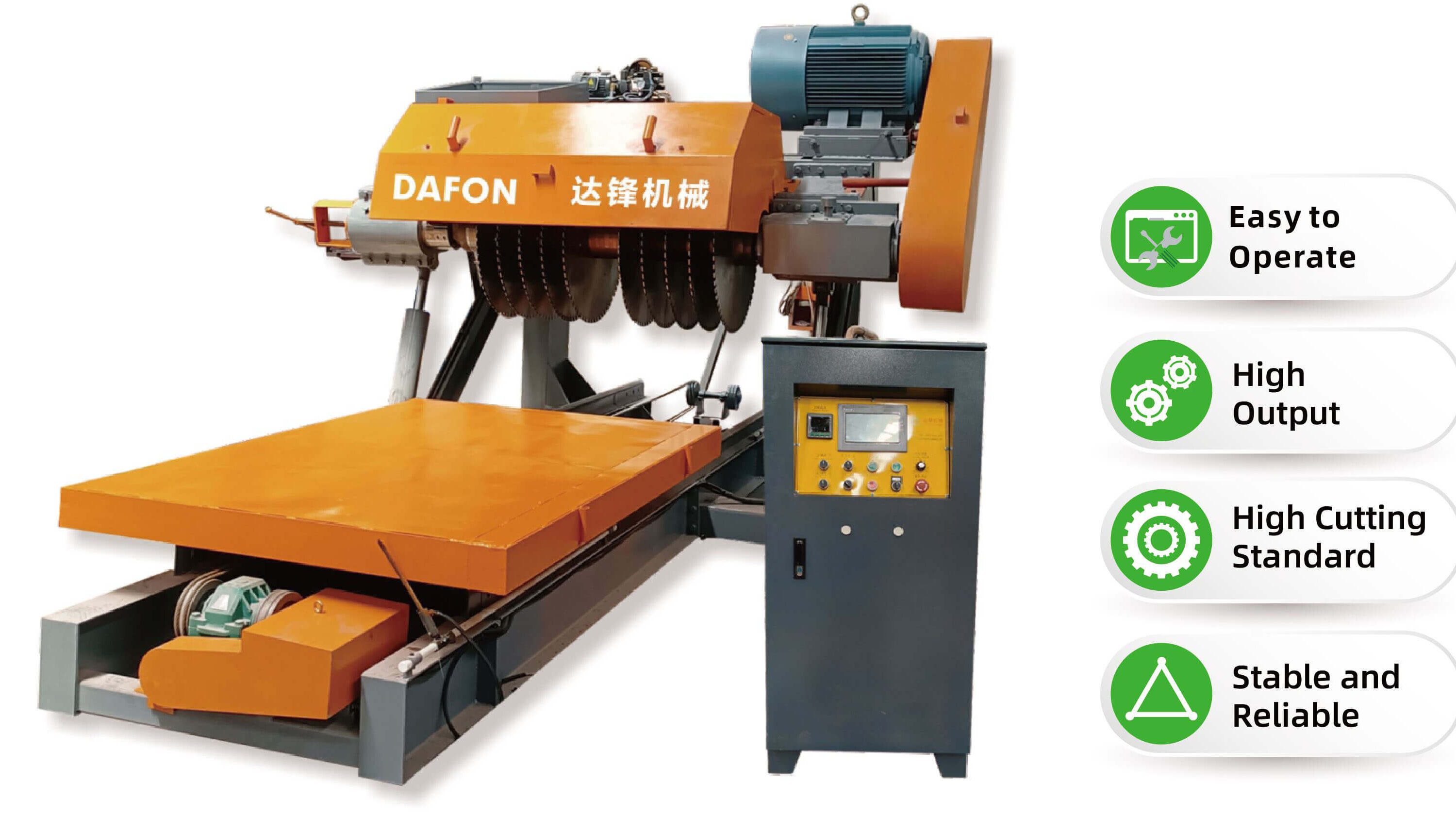

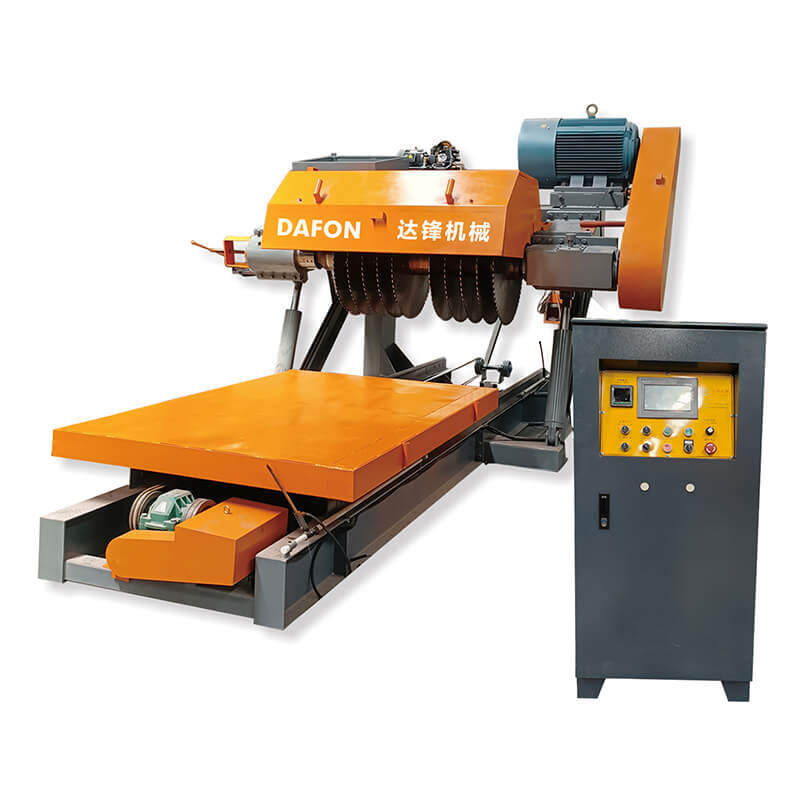

Intelligent Kerbstone Cutting Machine

This machine adopts an integrated steel casting structure, ensuring fast installation, long-term durability, and exceptional structural stability for continuous heavy-duty operation.
The 120 mm high-frequency heat-treated spindle provides high strength, superior wear resistance, and minimal deformation, maintaining precision even under intensive cutting conditions.

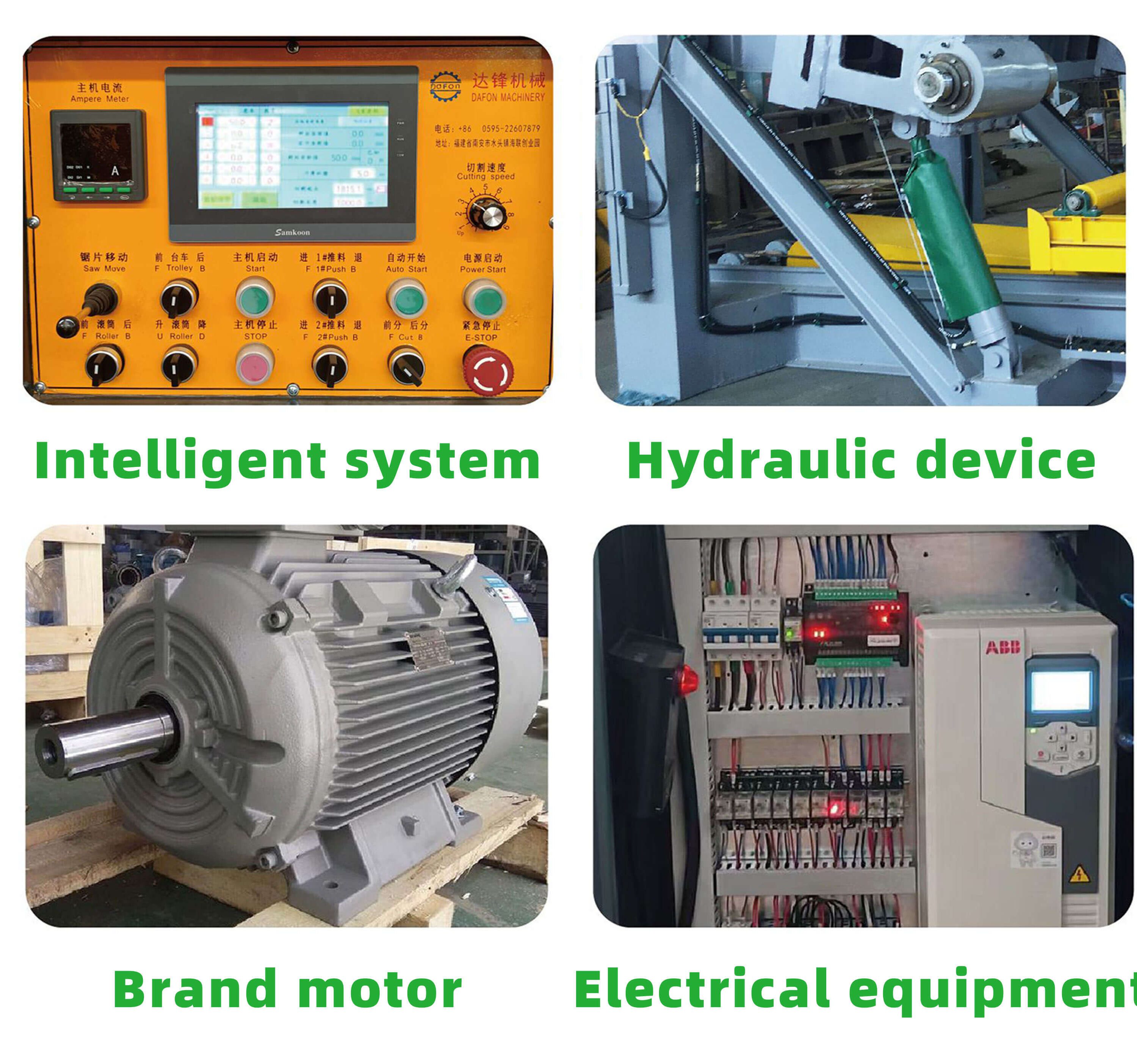

Equipped with a hydraulic lifting system, the machine delivers smooth, stable, and precise vertical movement, ensuring consistent cutting accuracy and surface quality.
With optional processing widths of 1.6 m, 1.8 m, and 2.0 m, it offers strong adaptability for high-standard kerbstone, tombstone, railing, and thick stone slab cutting, meeting the demands of professional and industrial stone processing applications.

Blank Form (#5) (#6)

Description

🚀 Key Highlights of Our Stone Cutting Machine

💪 Heavy-Duty One-Piece Structure
Built from a single steel casting for maximum strength, durability, and easy installation.

⚡ 120 mm High-Strength Spindle
Powerful & precise cutting with high-frequency heat-treated spindle resistant to deformation.

🛠 Stable Hydraulic Lifting
Smooth, stable, and precise blade movement for superior cutting accuracy.

🔧 Flexible Cutting Widths
Choose from 1.6 m, 1.8 m, or 2.0 m to match your production needs.

🌍 Wide Application Range
Ideal for kerbstones, tombstones, railings, and thick slabs with high-precision requirements.

Name Unit DF1200-12
Maximum blade diameter mm Φ1000–1200
Maximum number of saw blades pcs 20
Maximum processing width mm 1550 / 1750 / 1950
Spindle diameter mm Φ120
Maximum lifting stroke mm 600
Maximum cutting depth mm 450
Main motor power kW 55 / 55 / 75
Maximum feeding size (L × W × H) mm 2500 × 1600 / 1800 / 2000 × 450
Weight t 9
Overall dimensions (L × W × H) mm 6000 × 5500 × 3100
