Automatic Intelligent Kerbstone Production Line

Dafon Intelligent Kerbstone Processing Line integrates cutting, chamfering, rounding, flaming, and polishing into one automated system, delivering high-efficiency, standardized, and continuous production.
With compact design, intelligent control, and modular customization, it provides a flexible, scalable, and cost-effective solution for modern kerbstone manufacturing.

Blank Form (#5) (#6)

Description

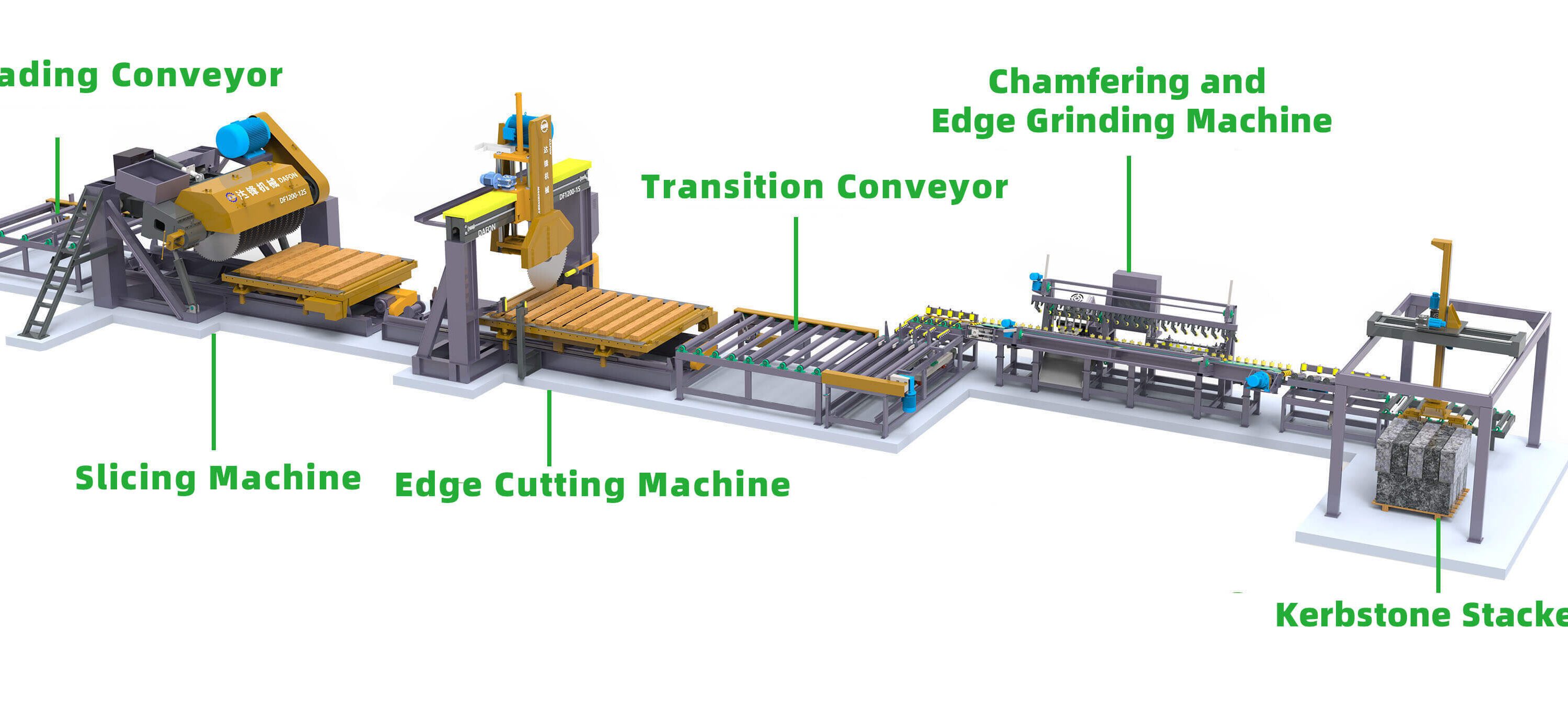

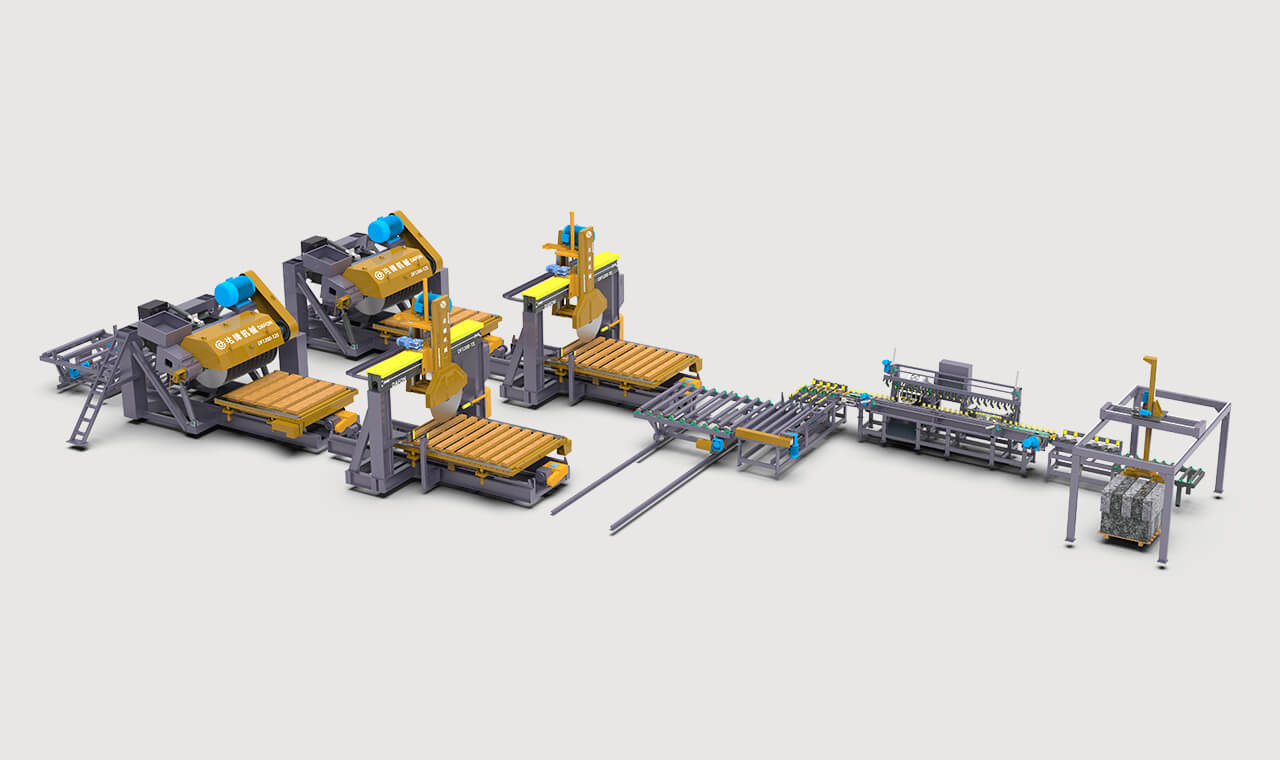

Dafon Kerbstone Intelligent Cutting Machine Line

The next-generation all-in-one intelligent solution for industrial kerbstone production


🔹 One-pass integrated processing

A fully integrated production line combining cutting, chamfering, rounding, flaming, and polishing in a single continuous workflow, enabling true one-pass processing of finished kerbstones with maximum efficiency and zero secondary handling.

🔹 Full automation & intelligent control

Powered by advanced automation systems and intelligent control technology, the line delivers stable, continuous, and unmanned-capable production, significantly reducing labor costs and human error while ensuring consistent quality output.

🔹 Industrial-grade precision & stability

Designed to meet the strict dimensional, surface, and finishing standards of municipal infrastructure and commercial projects, ensuring high-precision cutting, uniform finishing, and long-term operational stability under continuous production conditions.

🔹 Compact engineering, high-output design

With a space-optimized layout and modular structure, the line achieves high-capacity production within a minimal footprint, maximizing factory space utilization without compromising performance.

🔹 Modular & fully customizable system

The entire production line is modular, scalable, and configurable, allowing tailored solutions based on stone types, product dimensions, processing standards, and production capacity, supporting both current needs and future expansion.

Name Unit DFLSX1200-13S
Blade diameter mm Φ1200×13 + Φ400×1
Maximum feeding size (L×W×H) mm 2500×1800×450
Maximum finished product size (L×W×H) mm 1200×450×300
Total power kW 128
Weight t 25
Overall dimensions (L×W×H) mm 24500×5000×4500
