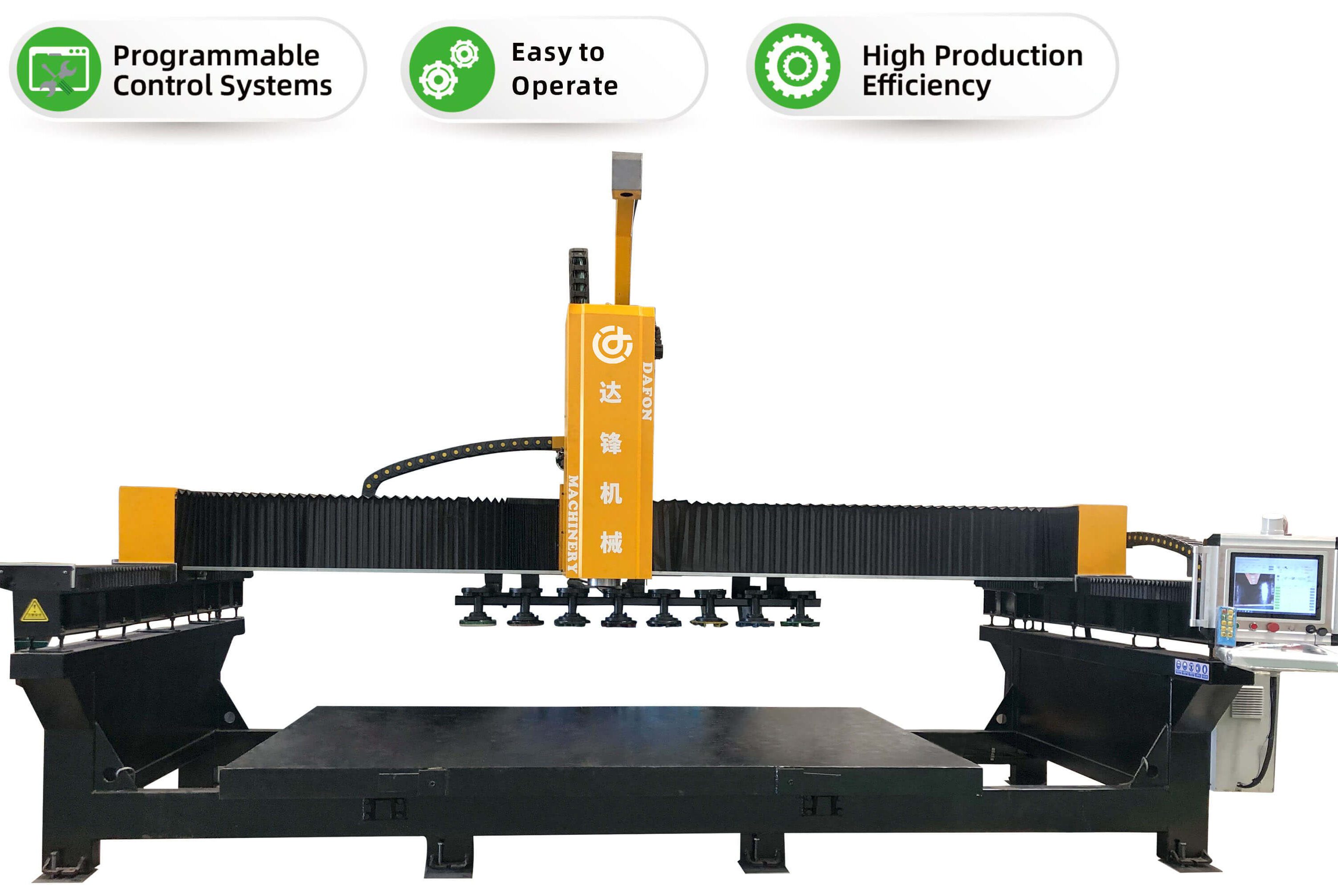

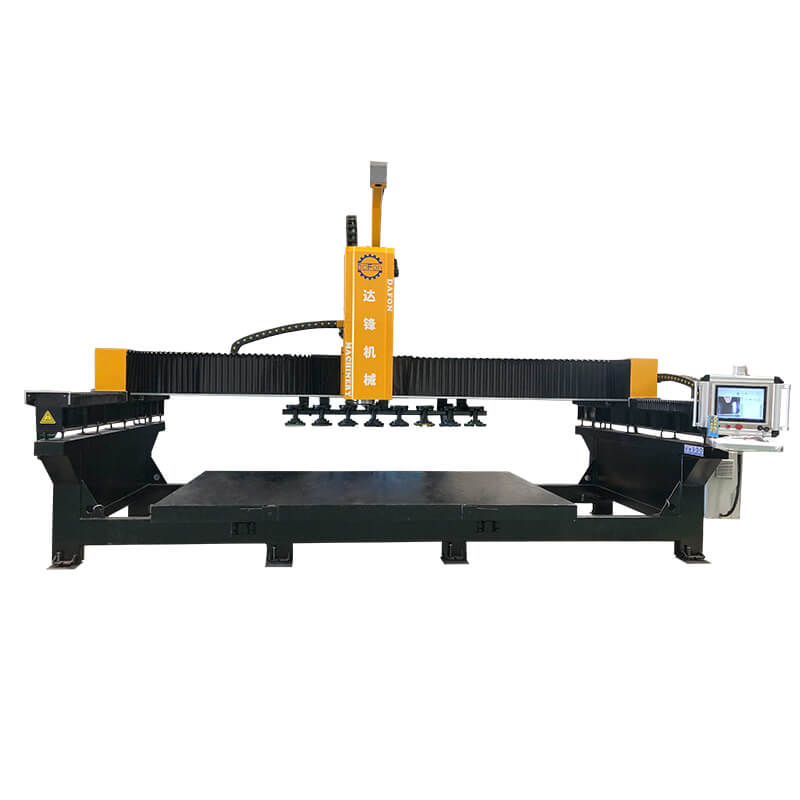

Granite and Marble Polishing Machine

This stone bridge polishing machine delivers high-efficiency, precise, and consistent polishing for a wide range of stone materials. Its robust bridge structure ensures stable operation, while adjustable grinding heads and automatic surface tracking provide uniform, high-quality finishes. Equipped with user-friendly controls and durable components, it combines reliability, easy maintenance, and long service life, making it ideal for large-scale stone polishing and production.

Blank Form (#5) (#6)

Description

Name Unit DFB-QM3200
Main motor power

(with inverter)

kw 7.5
Number of heads pcs 8
Diameter of polishing disc mm 250
Max processing size mm 3200*2000*150
Right and left drive systems ds servo motor
Front and rear drive systems ds servo motor
Control systems cs PLC
Each head adjust Each head can be individually controlled: movement speed, mode,pressure,RPM
Weight kg 3200
Overall dimension mm 5800*3100*2300
