Hydraulic Stone Splitting Machine

By delivering top-rated Hydraulic Stone Splitting Machine through expert design, manufacture, and trading, DAFON has emerged as a trusted leader in the industry as a reputable manufacturer.
Price: $6900-$12900
Brand Name: DAFON
Certification: CE, ISO
Model Number: DF-24S
Power: 5.5kw
Weight: 9500kg
Application: Machinery & Hardware, Construction, Stone
Trading Method: FOB/CIF/EXW Xiamen Port
Minimum Order Quantity: 1 SET
Delivery Time:90 Days
Place of Origin: CHINA.
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

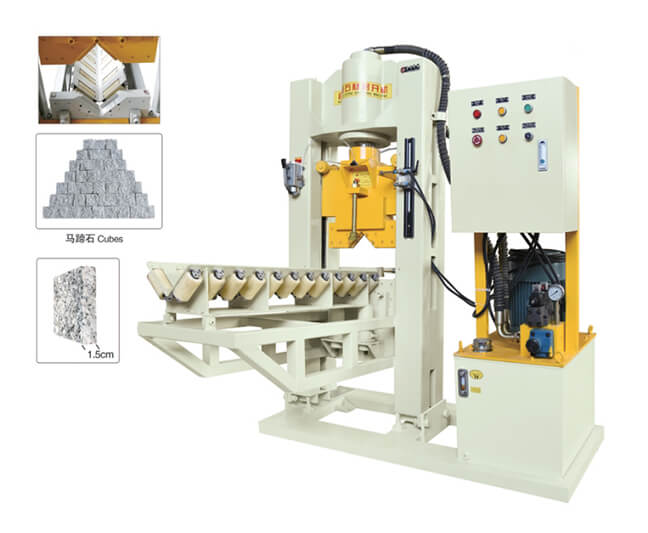

Introduction of Hydraulic Stone Splitting Machine


A hydraulic stone splitting machine is a machine that uses hydraulic pressure to split the stone into smaller pieces. The principle is that the oil pump delivers hydraulic oil to the oil cylinder, and the oil cylinder expands and contracts to generate pressure to split the stone. The overflow valve on the hydraulic station controls the pressure, suppresses stones of different thicknesses and areas, and adjusts different pressures.
It is a powerful machine that can split even the hardest types of stone, such as granite and basalt. Hydraulic stone splitting machines are used in a variety of industries, including construction, landscaping, and mining.

hydraulic stone splitting machine


Scope of the processing


Hydraulic stone splitter is mainly used to process various types of small-size stones. Designed for processing small paving stones, small square stones small masonry stones, and so on. The size of the processed products is 90x90x45mm, 90x90x90mm, 100x100x100mm, and 150x100x50mm, the maximum thickness of the stone can be chopped at 240mm, and the width of the stone is 320mm. Slightly uneven stones can also be chopped, and their sections are relatively flat.


hydraulic stone splitting machine

Technical parameters


Model DF-24Z

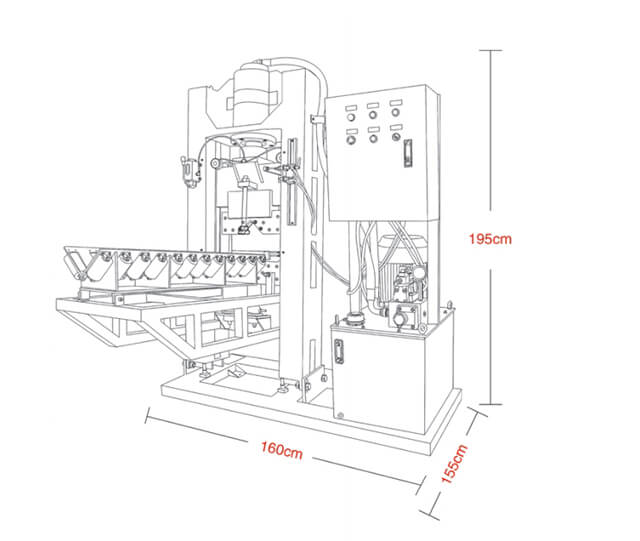

Overall Dimension

1550x1600x1950 mm

Power

 5.5kw

Weight

9500 kg

Voltage

380 V

Blade Feeding Speed

5 cm/s

Max.working height

100 mm

Max.working width

200 mm

Pressure

50T
Mnimum Processing Size
100*100*30mm


hydraulic stone splitting machine

Hydraulic Stone Splitting Machine's Price

There are several factors effect Stone Splitting machine's price
1. Equipment scale: There are obvious differences in price between hydraulic stone splitting machines of different sizes. Large stone splitting machines generally cost more because they have greater splitting capabilities and higher production efficiency.
2. Functional configuration: Some stone splitting machines are equipped with special cutting tools to adapt to the splitting needs of different types of rocks. These feature configurations will affect the price of the machine.
3. Brand and quality: Different brands of stone splitting machines have different prices. Generally speaking, products from well-known brands have more reliable quality and relatively higher prices.
Secondly, stone splitters come in a wide range of prices. According to market research, the prices of stone splitting machines of different specifications and brands range from a few thousand yuan to hundreds of thousands of yuan. For individual users, lower-priced stone splitting machines are more popular because they can meet general splitting needs Large enterprises are more inclined to purchase stone splitting machines with higher prices and higher power to meet the needs of large-scale production.

Related Products

More》


Related Resource


Main Parts

Professional R&D team
Win-Win Benefit
Advanced Equipment
High Quality & Good Service
Your Professional Hydraulic Stone Splitting Machine Supplier in China.
we from factory environment construction to equipment configuration support our production, all leading to high quality products.
abrasive tools

abrasive tools

Abrasive tools are tools that use abrasive materials to cut. various abrasive tools can make the stone cut variety of shapes
Segment

Segment

The Segment is used in the stone splitting machine, make the machine cut stone moreaccurate, faster

Related Types
Splitting and Stamping

1. Splitting and Stamping

Splitting and Stamping In addition to the basic splitting process, the stamping process is added, which can be processed into specific shapes, such as curved, wavy, diamond, etc., adding more possibilities for the application of stone.

2. Splitting and stamping and Mushroon cutting

Splitting and stamping and Mushroon cutting In the function of splitting and stamping, increase the stone surface treatment process, through the special treatment of the stone surface, so that it shows an uneven texture similar to the mushroom surface.
Splitting and stamping and Mushroon cutting
