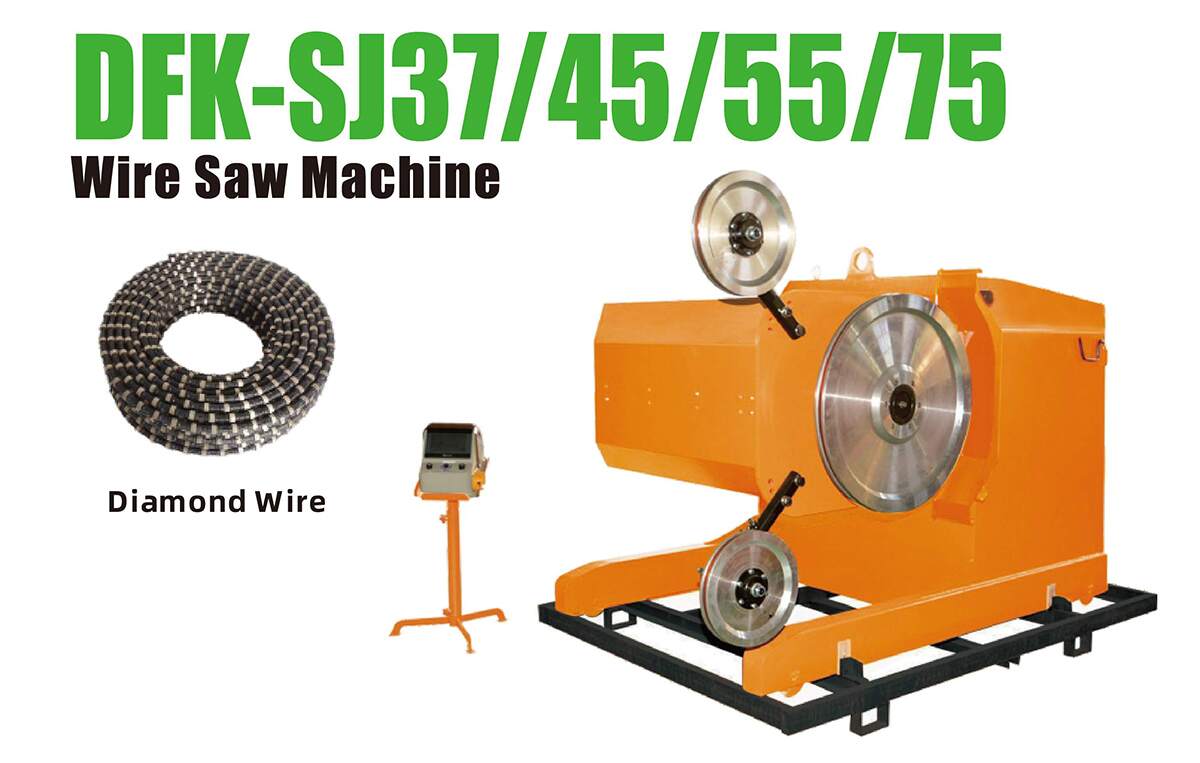

Diamond Wire Saw Machine for Stone


Price:
Brand Name: DAFON
Model Number: DFK-SJ37/45/55/75
Power: 37-75kw
Weight: 2800kg-4300kg
Application: marble,granite,other stone
Trading Method: FOB/CIF/EXW Xiamen Port
Minimum Order Quantity: 1 SET
Certification: CE, ISO
Delivery Time:90 Days
Place of Origin: CHINA.
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote
  • Introduction

wire saw machine is an efficient cutting tool used in mining, stone processing, building demolition, and other fields. It can cut all kinds of hard materials, including granite, marble, concrete,  and so on. It is easy to install, simple to operate, and can cut horizontally, vertically, and at other angles, which is an efficient and convenient cutting tool for all kinds of complex cutting operations.

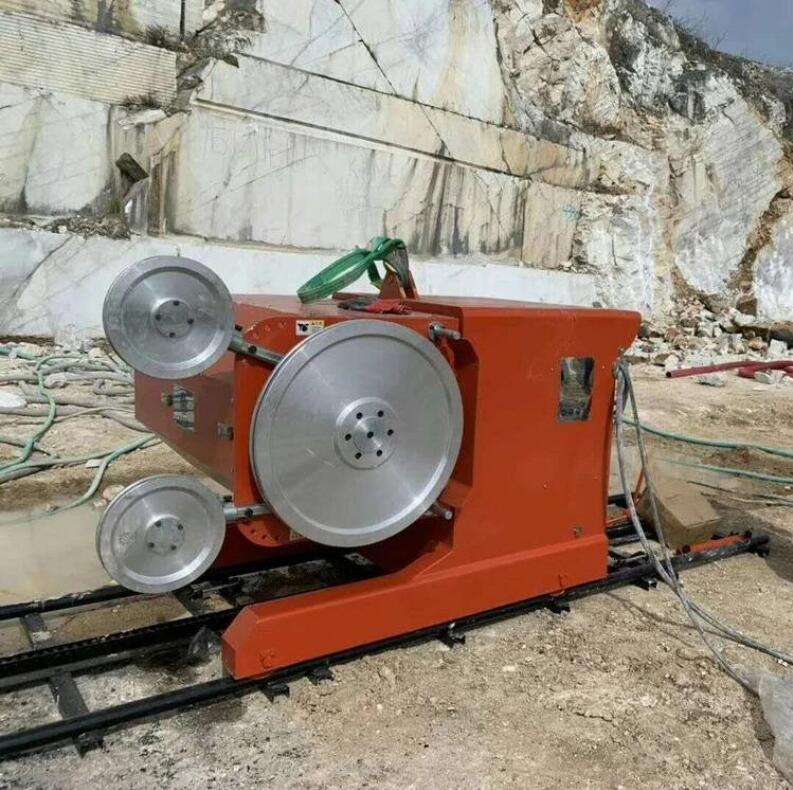

wire saw machine


  • Machine Details

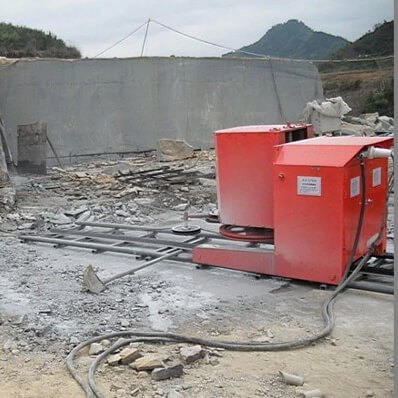

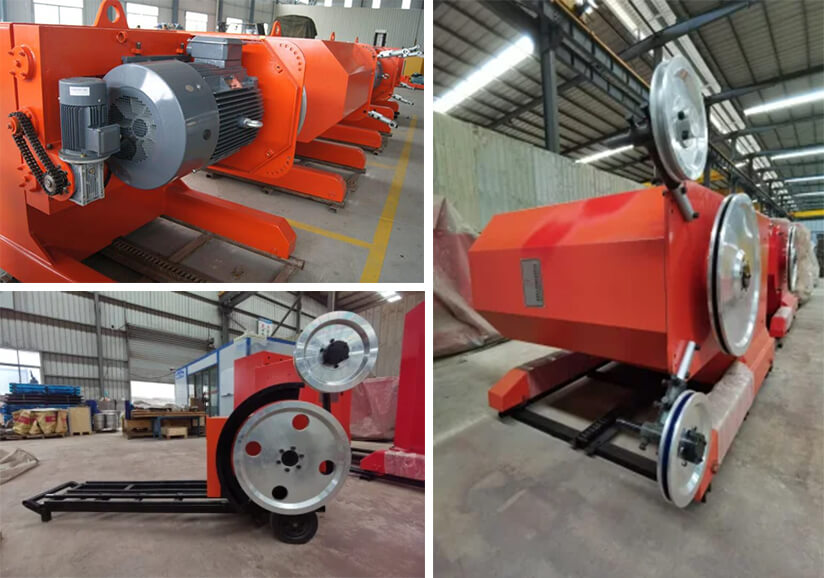

wire saw machine

  • Features

With its unique advantages, diamond wire saw mining natural stone gradually became the new favorite stone mining industry. Compared with traditional mining methods, diamond wire saw mining has the following significant benefits:


1. wide adaptability: the wire saw machine is not subject to the type of stone restrictions, applicable to granite, marble, limestone, sandstone, and other types of mines

2. powerful, high efficiency: wire saw machine mining depth of up to 10 meters or more

3. Flexible cutting, wide range of applications: wire saw machine can cut vertically, horizontally, diagonally, and other multi-angle cutting, but also blind cutting, adapting to the complex terrain

4. high yield, low cost: wire saw machine cutting surface flat, will not cause damage to the stone, and the saw kerf is narrow, only 11 mm or so, maximizing the savings of resources, In addition, the comprehensive cost of rope saw mining is lower.

5. Safety and environmental protection: wire saw machine mining no noise, no dust, will not affect the surrounding environment; high degree of automation, low labor intensity of workers, safety is more guaranteed


  • Appliation

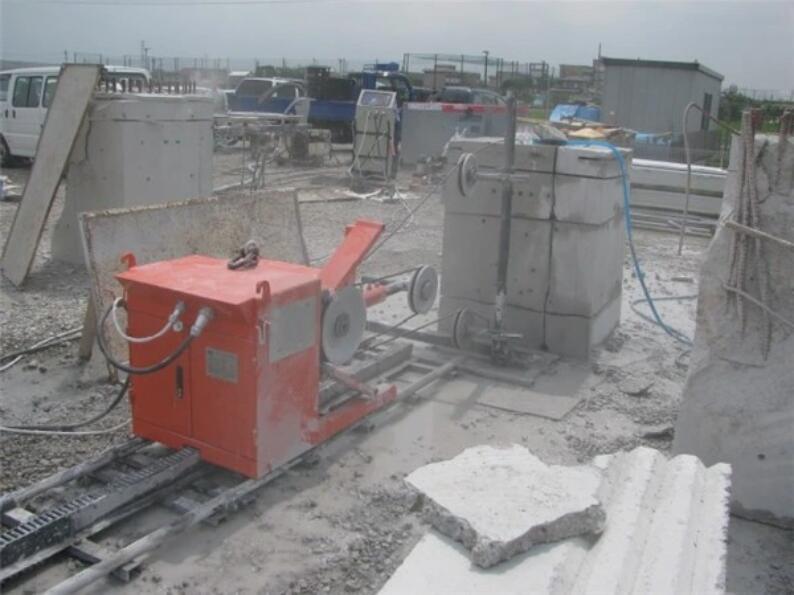

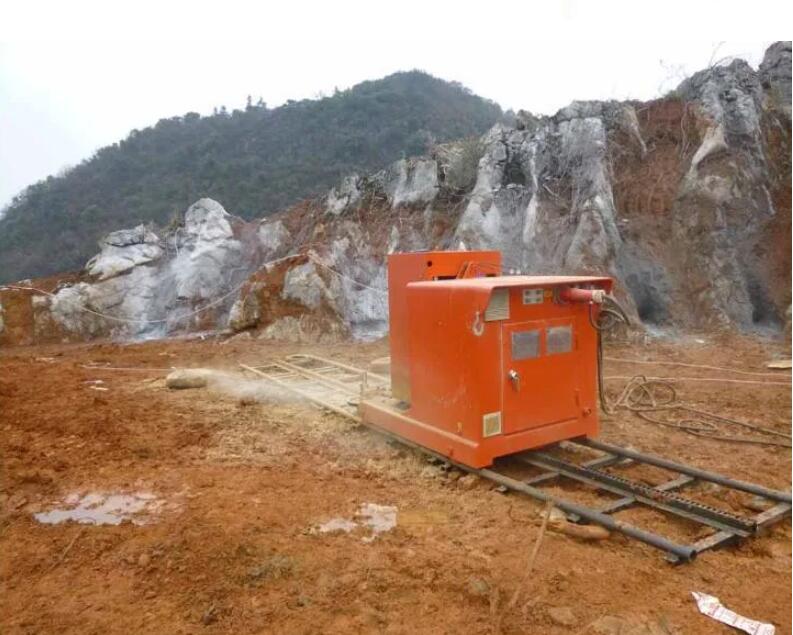

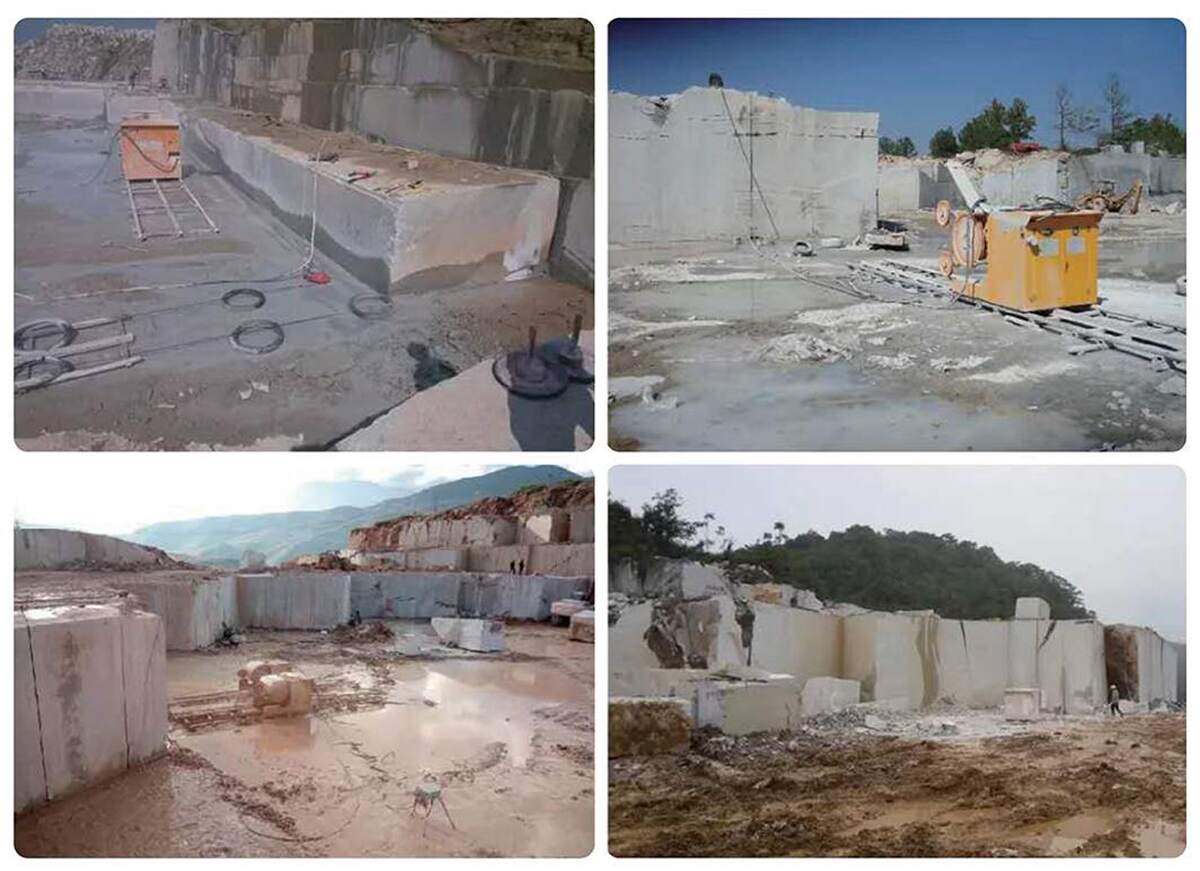

wire saw machine

wire saw machine

  • Technical Data

Name
Unit DFK-SJ37
DFK-SJ45
DFK-SJ55
DFK-SJ75
Flywheel Diameter
mm
800
800
800
800
Wire saw speed
m/s
0-33
0-33
0-33
0-33
Max.wire saw length
m
20-60
20-80
20-100
20-100
Walking motor power
kw
0.75KW(1HP)
0.75KW(1HP)
0.75KW(1HP)
0.75KW(1HP)
Lateral moving distance
mm
390
390
500
520
Max.lateral cutting distance
mm
1560
1700
1900
2050
Rotation angle (electric)

360
360
360
360
Walking speed of machine
m/h
0-60
0-60
0-90
0-90
Main motor power
kw
37KW-8P(50HP-8P)
45KW-8P(60HP-8P)
55KW-8P(75HP-8P)
55KW-8P(75HP-8P)
Rail length
m
2*3+1
2*3+1
2*3+1
2*3+1
Weight
kg
2800
3000
3500
4300
Overall dimensions(L*W*H)
mm
2320*1460*1450
2320*1460*1450
2500*1600*1530
2550*1680*1570

Related Resource


Start Customizing Your
Diamond Wire Saw Machine for Stone!
Get Price
Diamond Wire Saw Machine for StoneMain Parts
quarry mining machine cable

1. quarry mining machine cable

connecting of mobile units and machines with very high mechanical requirements, for outdoor use . Especially in mining and industries, in quarries and on construction lots. Also suitable for fixed laying e.g. on-wall in provisional buildings, in conveyor facilities and machinery

2. oil pump

The oil pump plays a crucial role in the lubrication system of an internal combustion engine. Its main function is to circulate oil throughout the engine to lubricate moving parts, reduce friction and prevent wear and tear.
oil pump
Throttle valve

3. Throttle valve

A throttle valve is a mechanical device that controls the amount of air or fluid that enters an engine or other mechanical system.

Related Features

Professional R&D team Professional R&D team
Win-Win Benefit Win-Win Benefit
Advanced Equipment Advanced Equipment
High Quality High Quality & Good Service
Your Professional Diamond Wire Saw Machine for Stone Supplier in China.
We have strong power to support our production, from factory environment construction to equipment configuration, all leading to high quality products.
Compact structure, easy to operate

Compact structure, easy to operate

1. Compact structure, easy to operate stone quarry cutting machine has a compact structure, a high degree of automation, easy to operate. 2. Fully sealed design, prolonged life Cylindrical guide rail adopts a fully sealed design to ensure no pollution. reduces the number of maintenance t
Fully sealed design, prolonged life

Fully sealed design, prolonged life

Fully sealed design, prolonged life Cylindrical guide rail adopts a fully sealed design to ensure no pollution. reduces the number of maintenance times and costs.
Diamond Wire Saw Machine for Stone
Related Complementary Products
What other Kind of Machine can Mine a Mine
What other Kind of Machine can Mine a Mine
Rope Saw Machine Mining rope saw machine is mainly used for mining barren materials and trimming, using unique digital frequency converter control, can accurately adjust the speed of diamond beading rope, to achieve the best cutting effect Efficient mining Rope saw machines are powerful
