Here’s Everything about CNC Bridge Saw

Author:Dafon Kerbstone Machine FROM:Stone Machine Manufacturer TIME:2024-05-07

I. Introduction

CNC bridge saws are one of the most widely used machines in the stone processing industry. They are suitable for stone processing plants of all sizes, whether they are large stone manufacturers or small processing shops. This equipment is mainly used to process semi-finished and finished stone slabs and is an indispensable part of the stone processing process.



CNC bridge saws are one of the most widely used machines in the stone processing industry. They are suitable for stone processing plants of all sizes, whether they are large stone manufacturers or small processing shops. This equipment is mainly used to process semi-finished and finished stone slabs and is an indispensable part of the stone processing process.

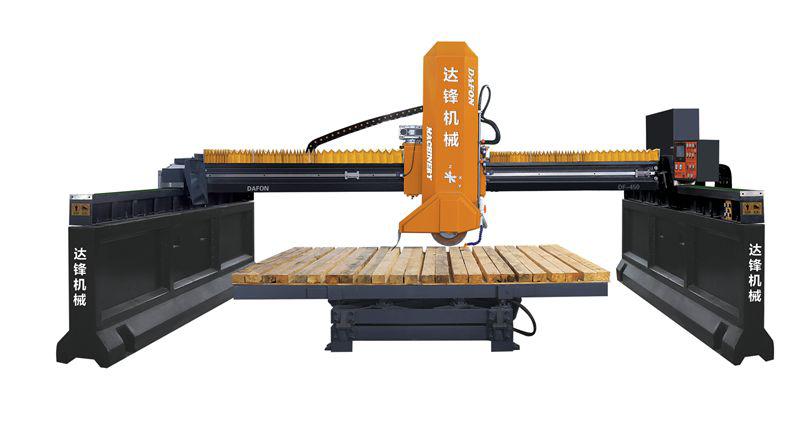

cnc stone machine

II. Understanding CNC Bridge Saws



The CNC Bridge Saw was developed based on hand-operated cutters and hydraulic cutters and is mainly used for cutting granite and marble slabs.

Key Components and Functionality

Main Frame: Constructed from robust cast iron, providing exceptional stability for precise cutting.

Bridge: The movable bridge travels along longitudinal rails, while the working head ascends and descends along the rails atop the bridge.

Guide Rails: Chrome alloy rails safeguarded by a protective cover, immersed in oil for longevity and smooth operation.

Rotating Table: The table offers versatile positioning from 0° to 360°, facilitating varied cutting angles and orientations.

Cutting Mechanism: The cutting speed is adjustable via a motor, with the spindle equipped with an impulse motor for precise control. The saw blade, mounted on the spindle, can also be tilted for beveling purposes.

Control Cabinet: Positioned on the right side of the bridge, housing main control keys and a suspended control keypad for convenient operation.

Safety Features: Switches, thermal protectors, and door lock switches ensure safe operation, while soft guides house cables and cooling water pipes for secure and easy movement.

Precision Control: All speeds are managed through a frequency converter, enabling swift and precise positioning. The overhead control keypad simplifies operation, with programmed functions accessible via the suspended control keypad.

Programmable Operation: Some models feature a display on the control panel, allowing for straightforward programming. The suspension control keyboard facilitates directional movement and speed adjustments, with a programmable display enhancing operational efficiency.

User-Friendly Interface: Programmed processes are easily executed by selecting motion controls on the control cabinet, streamlining workflow, and enhancing productivity.

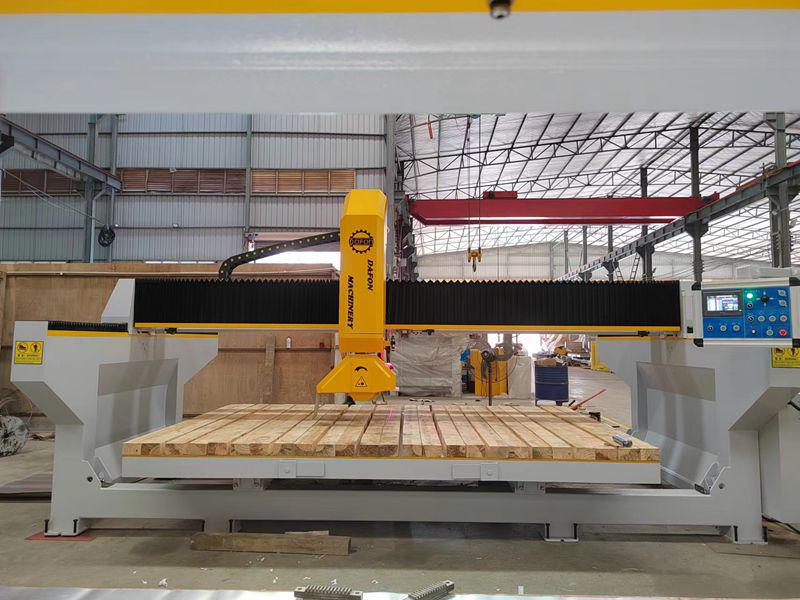

 stone cutting equipment

III. The Advantages of CNC Bridge Saws

Let's break down the CNC Bridge Saw's advantages:

Durable Construction: Constructed with oil-impregnated guide rails, the machine exhibits less wear and tear over time, ensuring prolonged durability and reliable performance, reducing maintenance costs.

Precise Cutting: With the saw blade moving left and right along the crossbeam, it delivers high cutting accuracy, meeting the demands of intricate designs and precise measurements.

Rotating Table: The table can be turned back and over, facilitating easy loading and unloading of slabs, enhancing workflow efficiency, and reducing downtime.

Variable Speed: Equipped with frequency conversion technology, the saw offers variable speed control, allowing operators to adjust cutting speeds according to specific requirements, enhancing efficiency and flexibility.

Cost-Effective: Despite its advanced features and capabilities, the stone bridge saw is affordable, offering excellent value for money compared to other options on the market.



In conclusion, the best CNC bridge saw stands out as the ideal bridge cutter currently available, combining versatility, precision, efficiency, durability, and affordability to meet the diverse needs of fabrication professionals.
