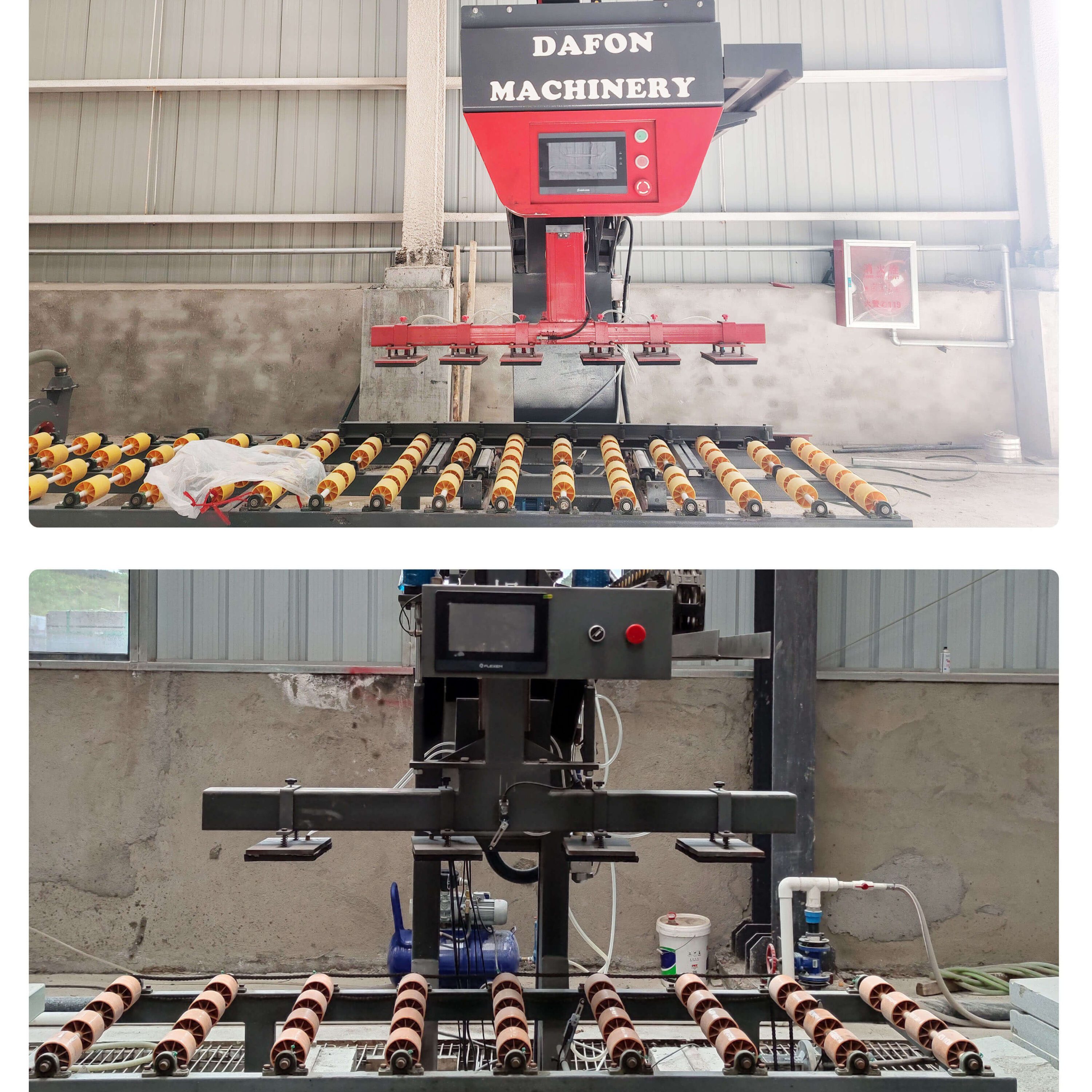

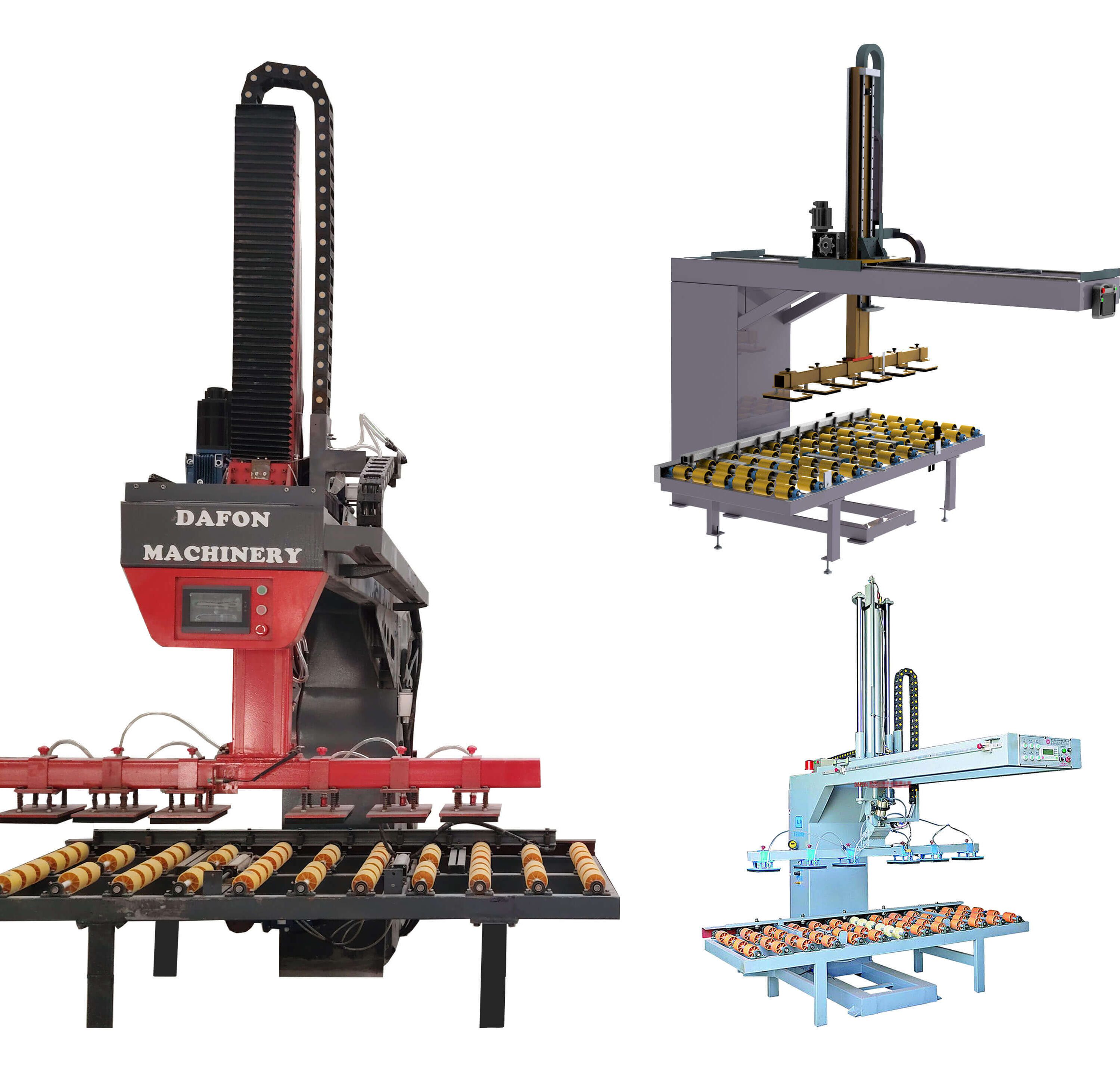

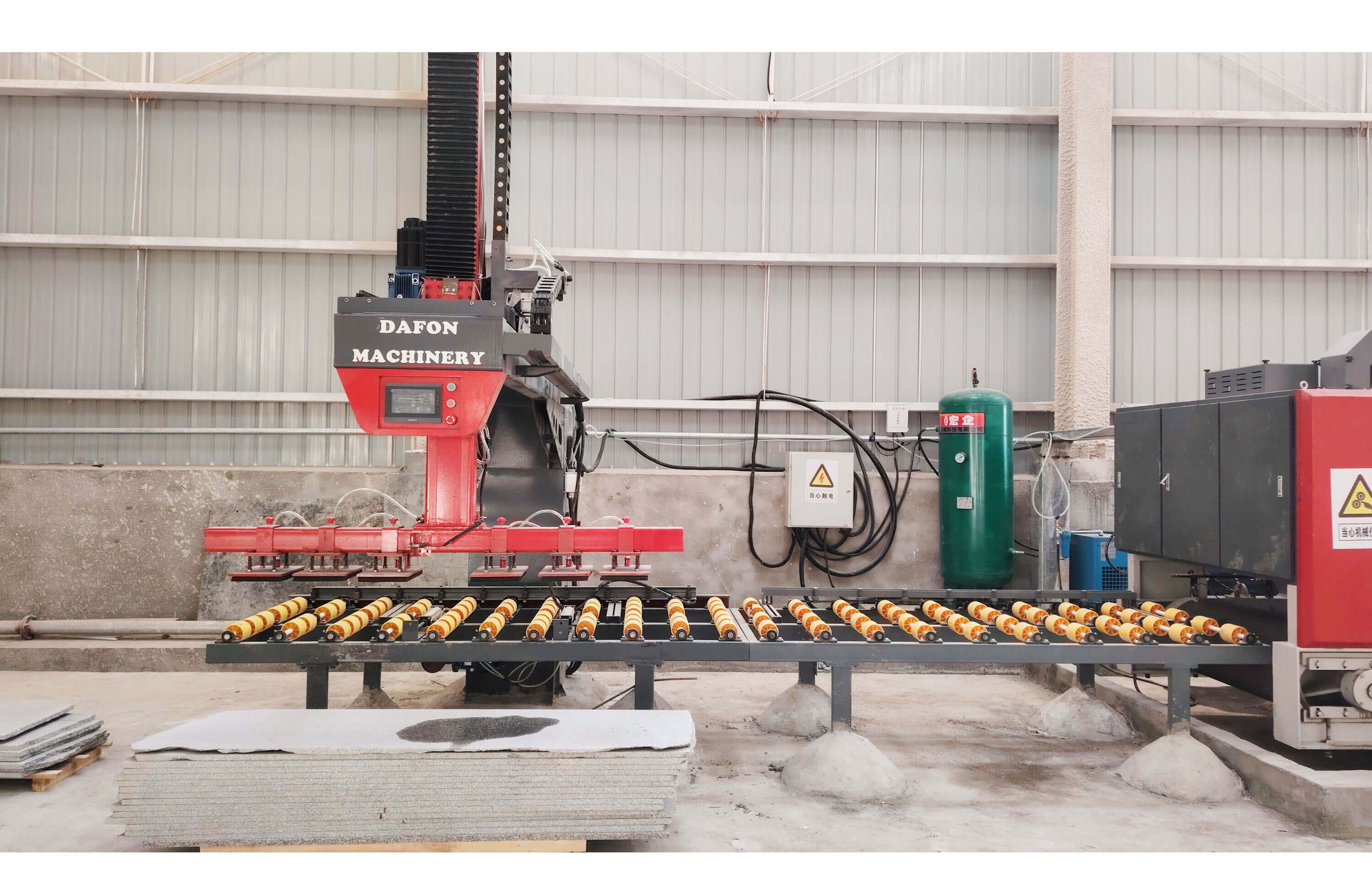

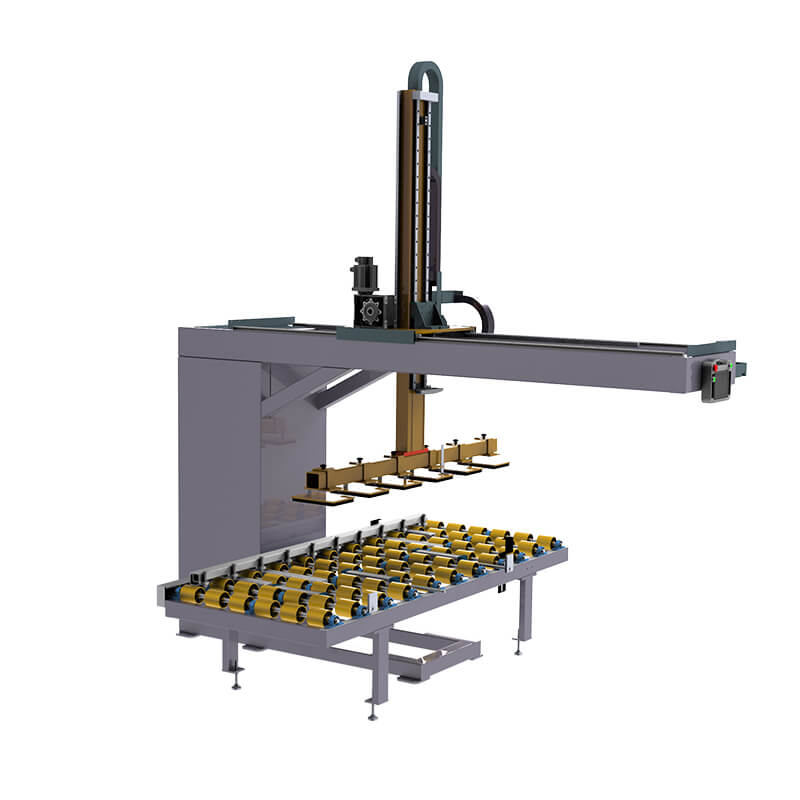

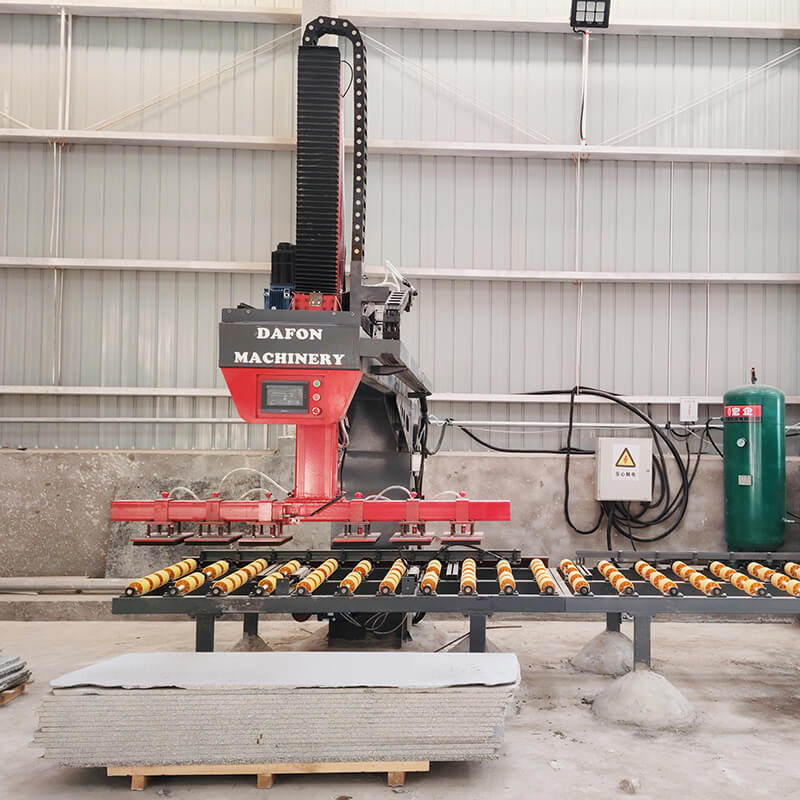

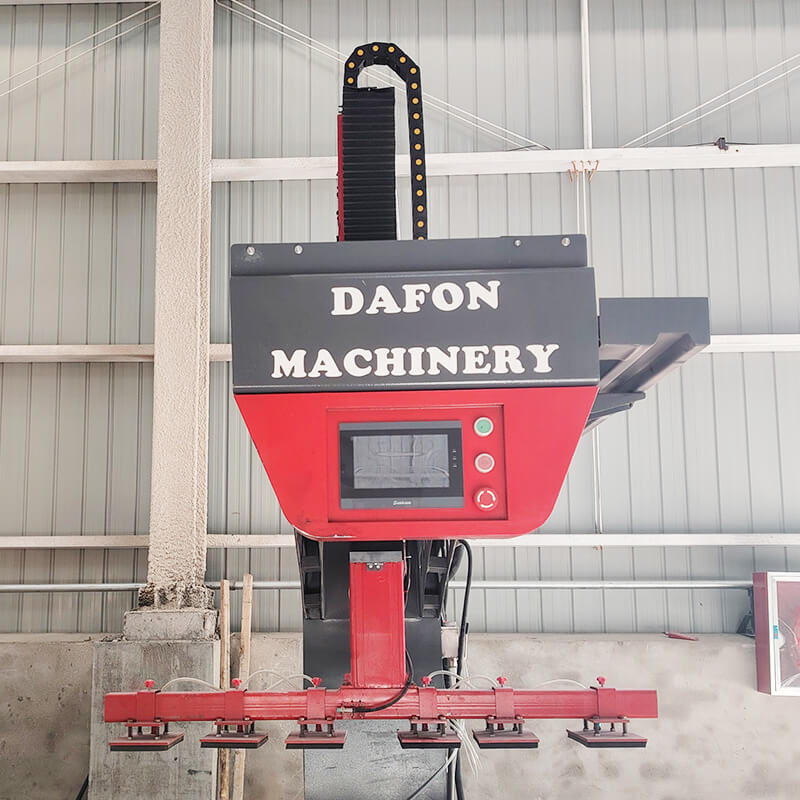

Vacuum Automatic Loader And Unloader

The Automatic Loader and Unloader (Vacuum) system streamlines stone handling by enabling fast, safe, and fully automated loading and unloading of slabs. Using advanced vacuum technology, it securely grips stone materials, reduces manual labor, minimizes damage, and increases production efficiency. Designed for seamless integration with polishing, cutting, and processing lines, it ensures consistent workflow, enhances safety, and maximizes overall productivity in stone operations.

Blank Form (#5) (#6)

Description

Name Unit DFB-DX2400
Max.size (L*W) mm 2400*800
Min.size (W) mm 400*400
Working thickness mm 10~50
Max.weight kg 300
Suckers size (L*W) mm 300*200
No. of suckers pcs 6
Suckers shaft length mm 1800
Front / Back range mm 2500
Lifting stroke mm 1300
Lifting speed pcs/min 2
Vacuum pump specifications m³/h 25
Lubrication system Hand pressure fuel pump
Roller table size (L*W) mm 2500*1200
Transmission method Roller +Chain transmission
Total power kw 3
Air source mpc 0.8
Pressure ㎡/min 0.8
Voltage 50HZ,380V
