Description
Efficient Cutting
Automatic speed adjustment with PLC and dual inverters ensures optimal diamond wire performance.
Durable Wire
Constant-tension technology delivers long-lasting, stable cutting.
Safe Operation
Wire-break protection and overload shutdown prevent accidents and equipment damage.
Reliable in Harsh Conditions

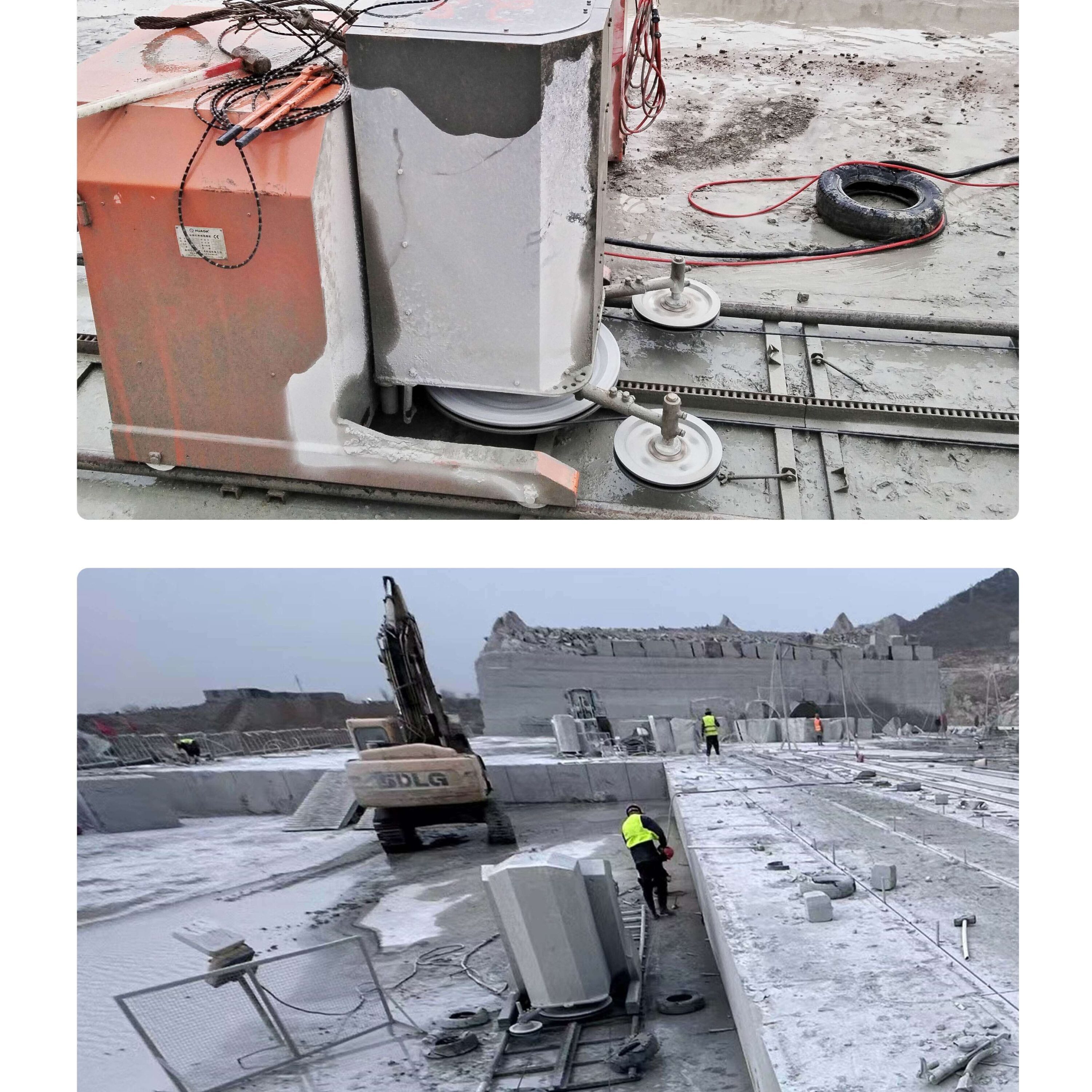

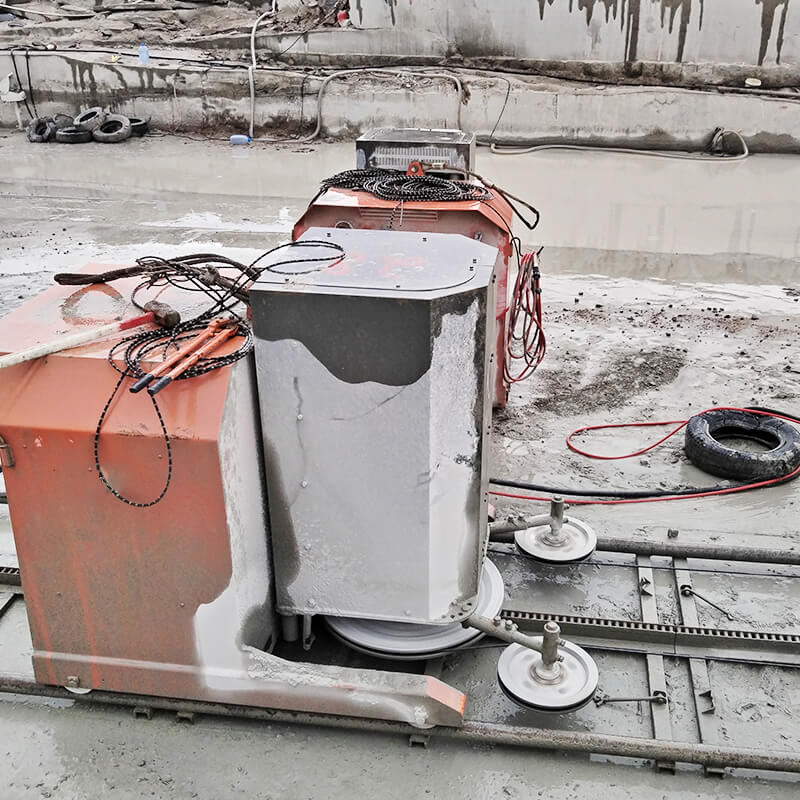

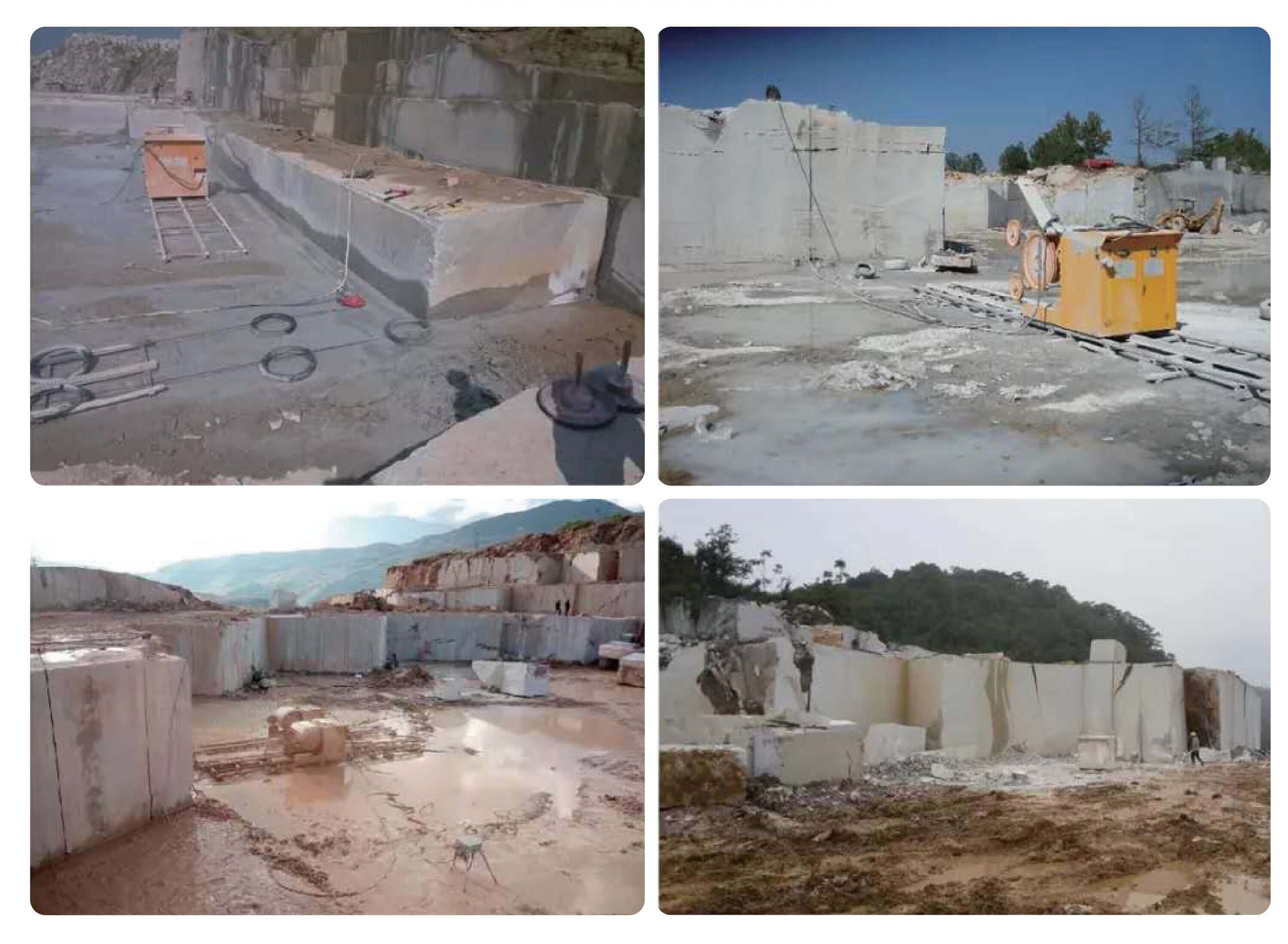

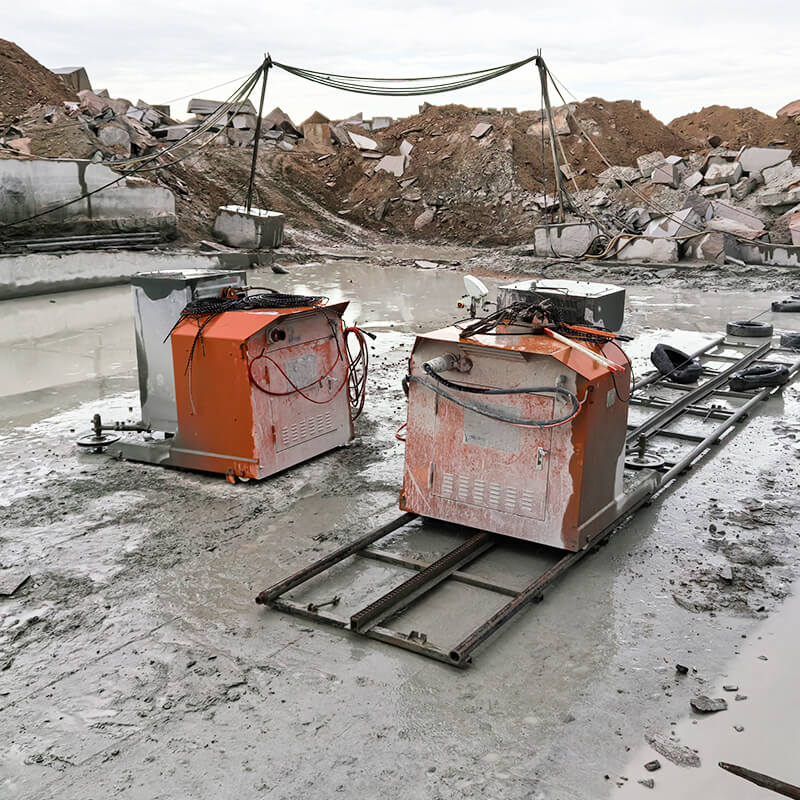

Maintains performance and safety in challenging quarry environments.
User-Friendly Automation
Intelligent control simplifies operation and maximizes productivity.
| Name | Unit | DFK-SJ37 | DFK-SJ45 | DFK-SJ55 | DFK-SJ75 |

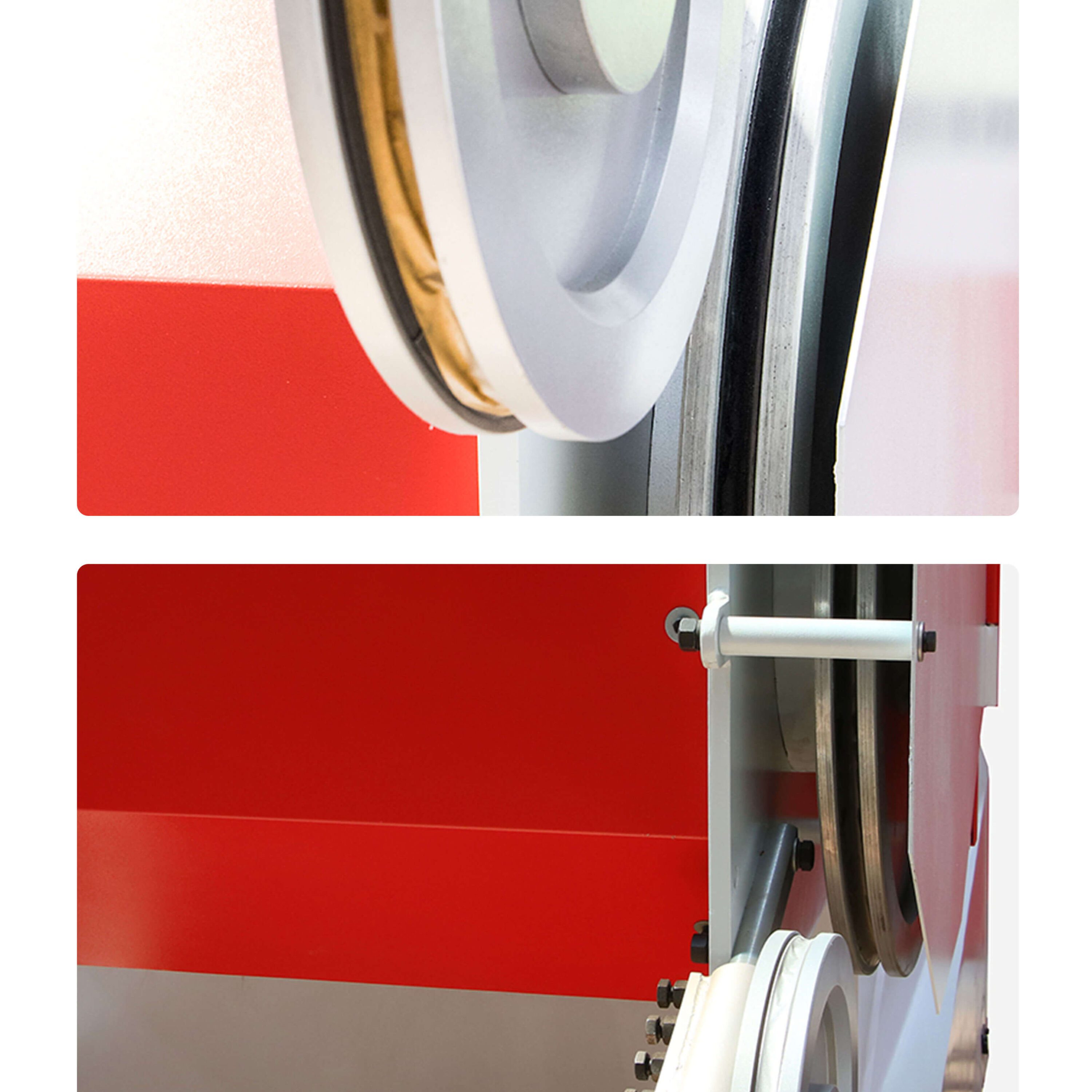

| Flywheel diameter | mm | Φ800 | Φ800 | Φ800 | Φ800 |
| Wire saw speed | m/s | 0~33 | 0~33 | 0~33 | 0~33 |
| Max.wire saw length | m | 20~60 | 20~80 | 20~100 | 20~120 |
| Walking motor power | kw | 0.75kw
(1HP) |
0.75kw
(1HP) |
0.75kw
(1HP) |
0.75kw
(1HP) |
| Lateral moving distance | mm | 390 | 390 | 500 | 520 |
| Max.lateral cutting distance | mm | 1560 | 1700 | 1900 | 2050 |
| Rotation angle (electric) | n° | 360 | 360 | 360 | 360 |
| Walking speed of machine | m/h | 0~60 | 0~60 | 0~90 | 0~90 |
| Main motor power | kw | 37kw-8P
(50HP-8P) |
45kw-8P
(60HP-8P) |
55kw-8P
(75HP-8P) |
75kw-8P
(75HP-8P) |
| Rail length | m | 2*3+1 | 2*3+1 | 2*3+1 | 2*3+1 |
| Weight | kg | 2800 | 3000 | 3500 | 4300 |
| Overall dimensions (L*W*H) | mm | 2320*1460*1450 | 2320*1460*1450 | 2500*1600*1530 | 2550*1680*1570 |
