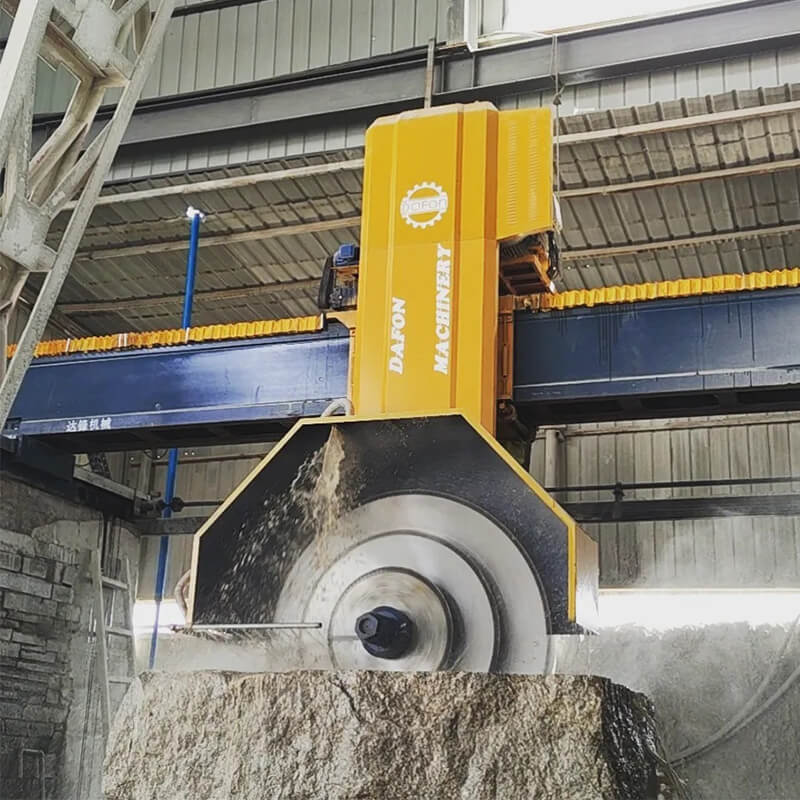

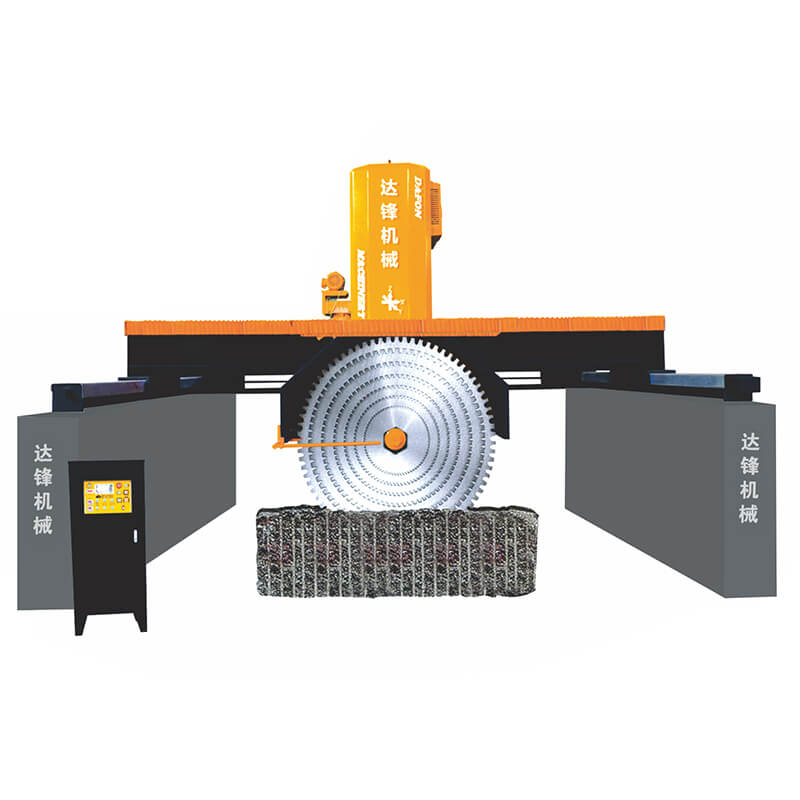

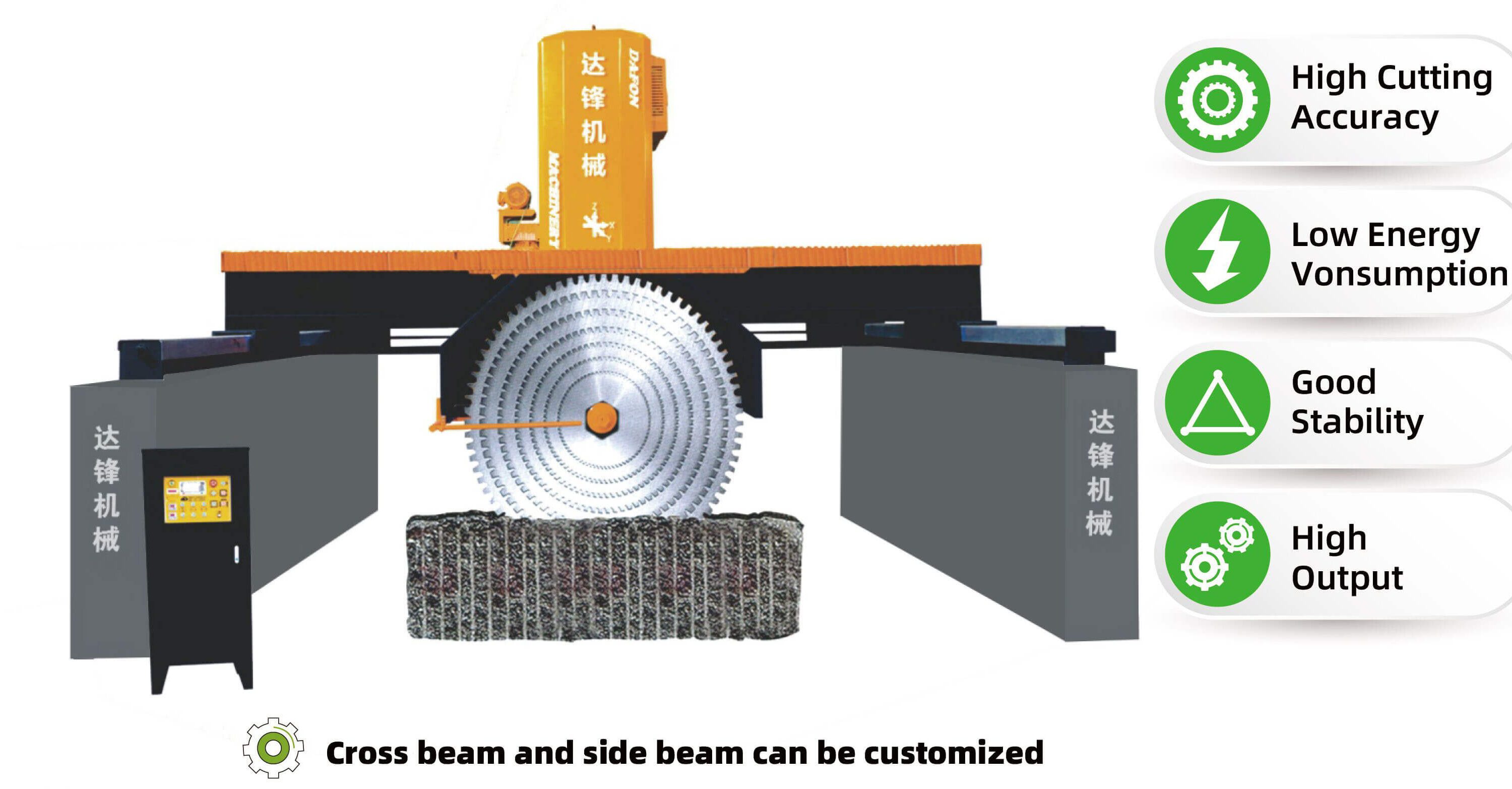

Stone Block Cutting Machine DFD-L2500

This machine features PLC programmable control and an intuitive human-machine interface, combined with ultra-precision encoders and frequency-controlled blade speed to handle a variety of stone materials. Equipped with hydraulic lifting and high-precision screw nut drives, it enables fully automatic slicing with exceptional accuracy. The equipment delivers high cutting efficiency, perfectly flat slabs, stable operation, and easy handling. Ideal for high-value granite and marble blocks, this model represents a mainstream, high-performance slab-cutting solution widely trusted in the industry.

Description

🔹 High Output

Supports 18–26 saw blades simultaneously with an optimized layout, maximizing cutting efficiency and throughput.

🔹 Superior Cutting Accuracy

Heavy-duty integrated casting structure with optional linear guide rails ensures smooth operation, precise cuts, and excellent slab flatness.

🔹 Energy-Efficient Operation

High-efficiency motors reduce overall energy costs by 15–20% while maintaining full production output.

🔹 Exceptional Stability

Key components—including motors, bearings, pressure wheels, and hydraulic systems—are sourced from top-tier Chinese and international brands, guaranteeing reliable, long-term performance.

Name	Unit	DFD-L2500	DFD-L2800	DFD-L3000
Diameter of Saw Blade	mm	Φ1600–2500	Φ1600–2800	Φ1600–3200
Main Machine Lifting Stroke	mm	1250	1200	1100
Effective Shaft Length	mm	510	610	710
Spindle Diameter	mm	Φ100–120	Φ100–120	Φ100–120
Front and Back Stroke	mm	2200	2200	2200
Left and Right Stroke	mm	5000	5000	5000
Number of Saw Blades	pcs	1–12	13–18	18
Main Motor Power	kW	45	55	75
Weight	kg	12500	14000	15500
Overall Dimensions (L×W×H)	mm	8000×4500×6500
