Bridge Block Cutter with Horizontal Cut

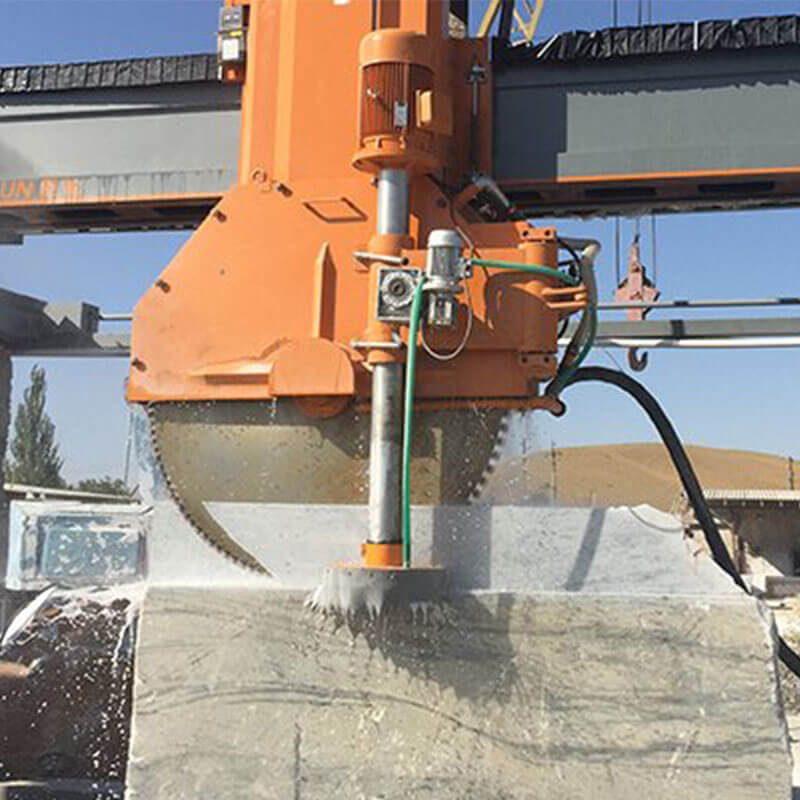

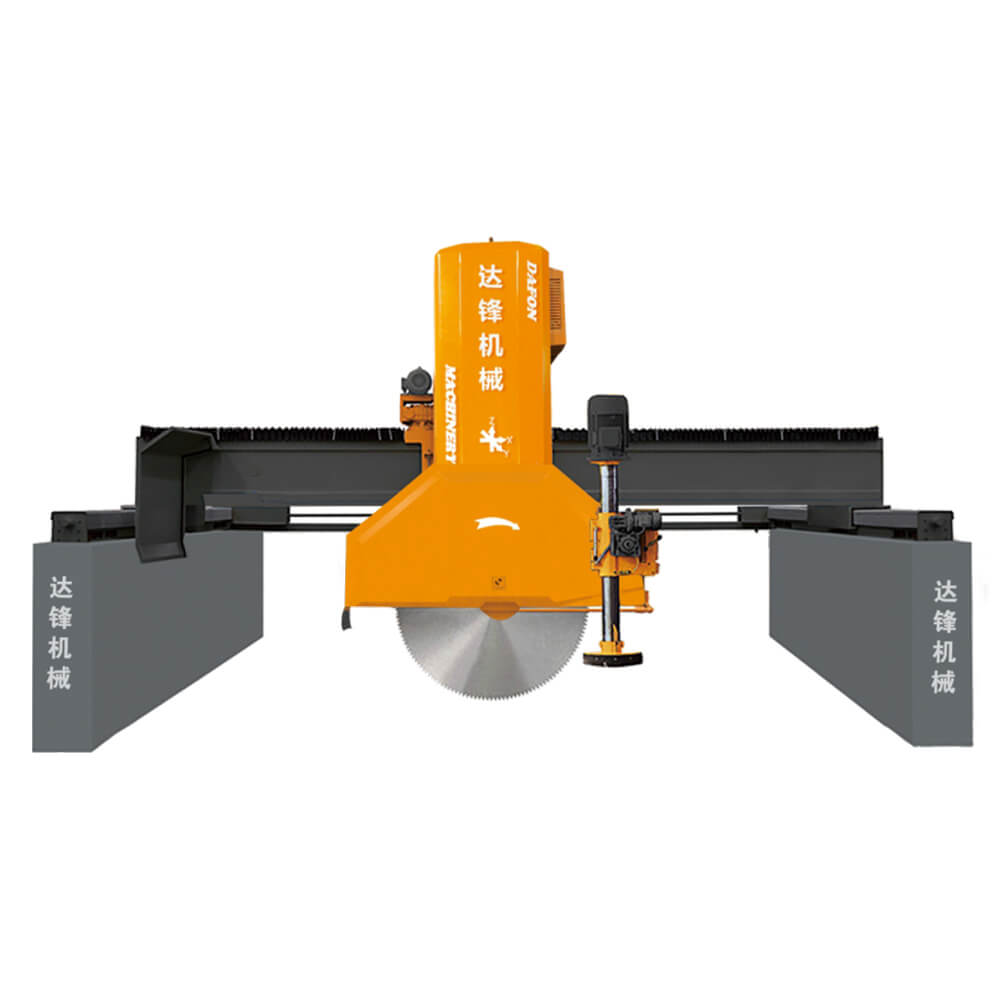

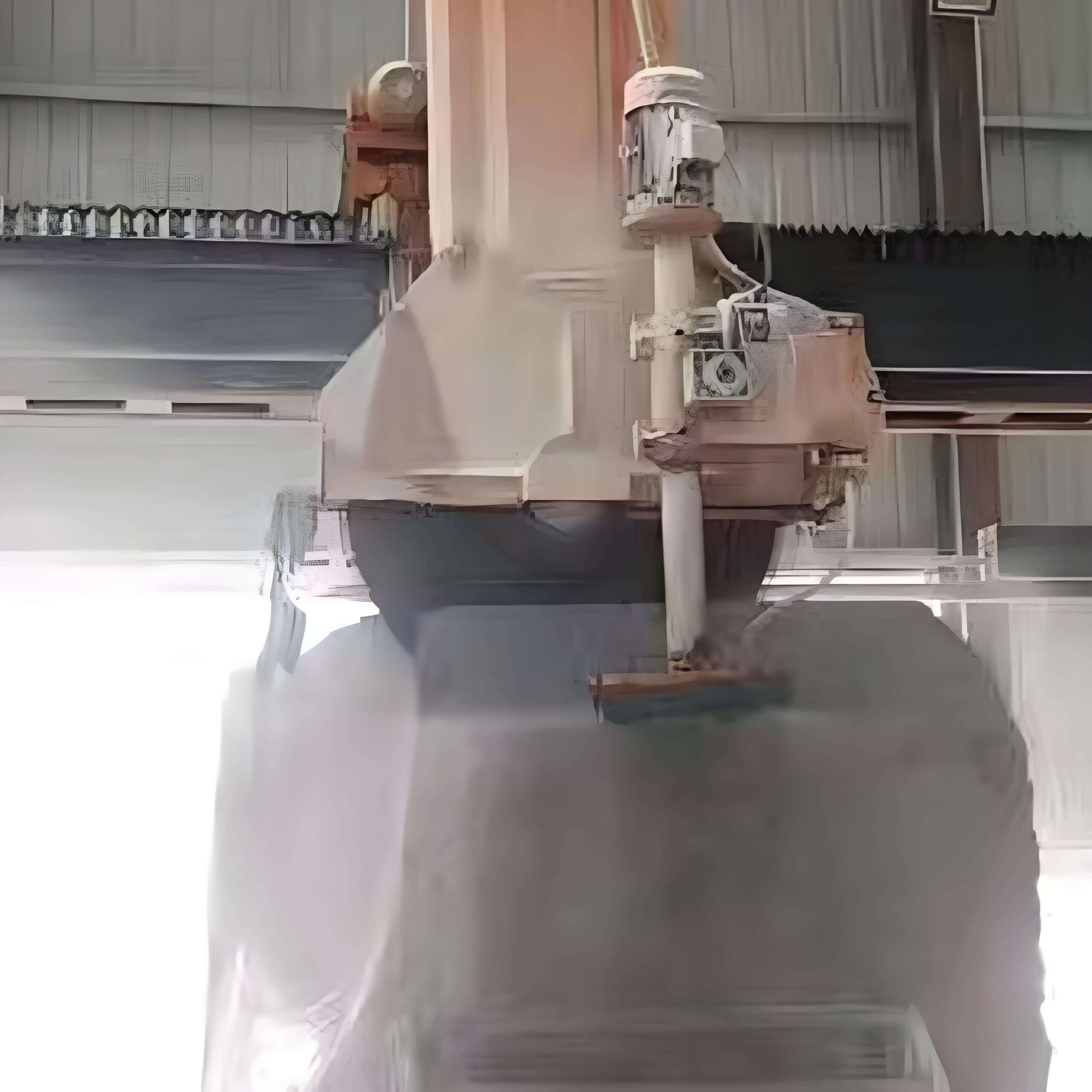

This stone block cutter features an added horizontal blade that rotates to one side, combining the functions of a bridge-type combination saw and eliminating manual slab unloading. The horizontal blade uses hydraulic feeding, while up-and-down lifting relies on a guide-column contact surface for superior stability and precision. Designed for high cutting efficiency, perfectly flat slabs, stable operation, and easy handling, it is ideal for granite, marble, and other stone materials.

Blank Form (#5) (#6)
Category:

Description

🔹 Horizontal Blade Innovation

Rotatable horizontal blade combines bridge-type saw functions, reducing manual unloading.

🔹 Smooth Hydraulic Feeding

Provides controlled, efficient horizontal cutting for consistent results.

🔹 Stable Lifting Mechanism

Guide-column contact design ensures precise and reliable vertical movement.

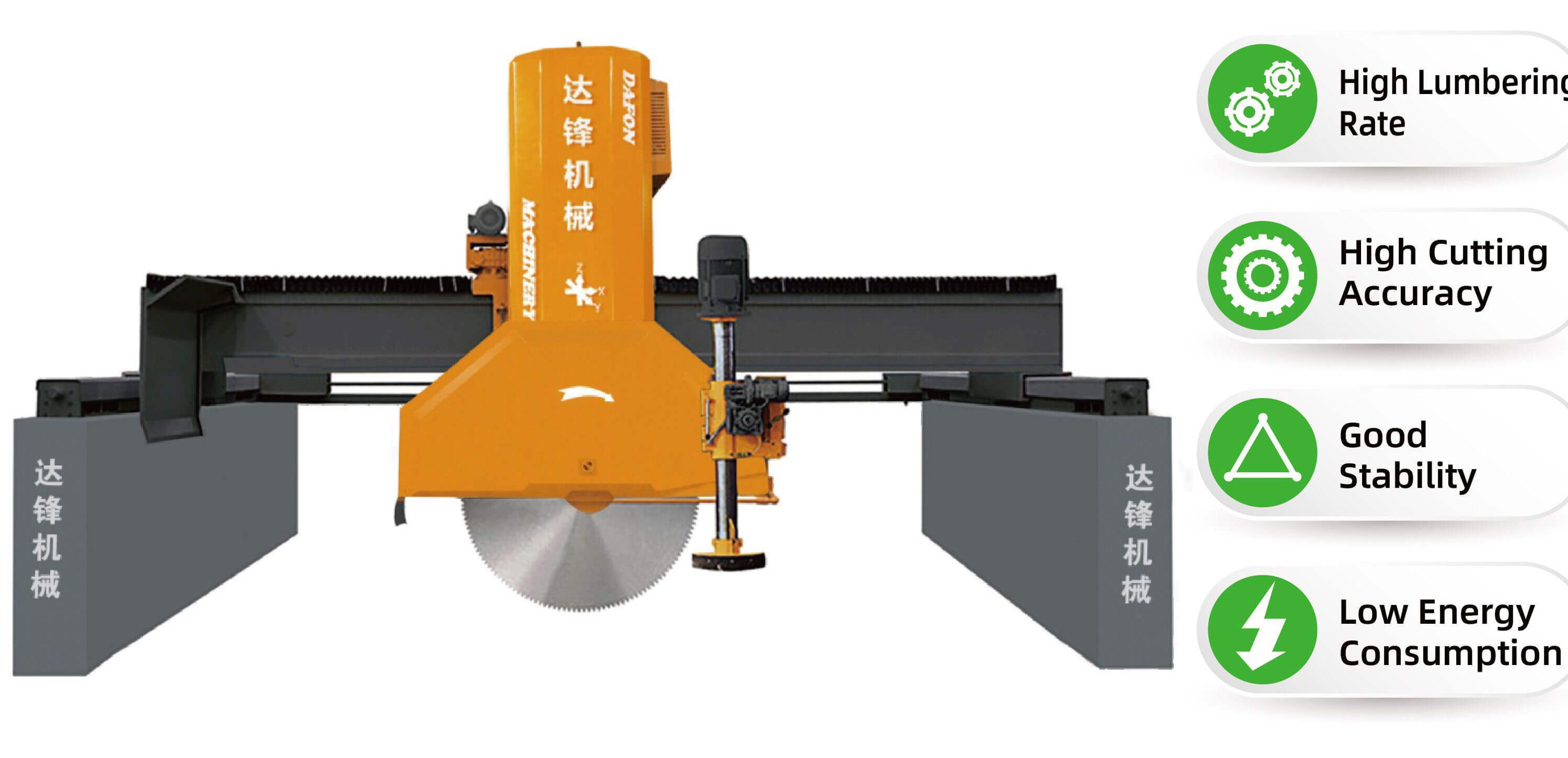

🔹 High Precision & Efficiency

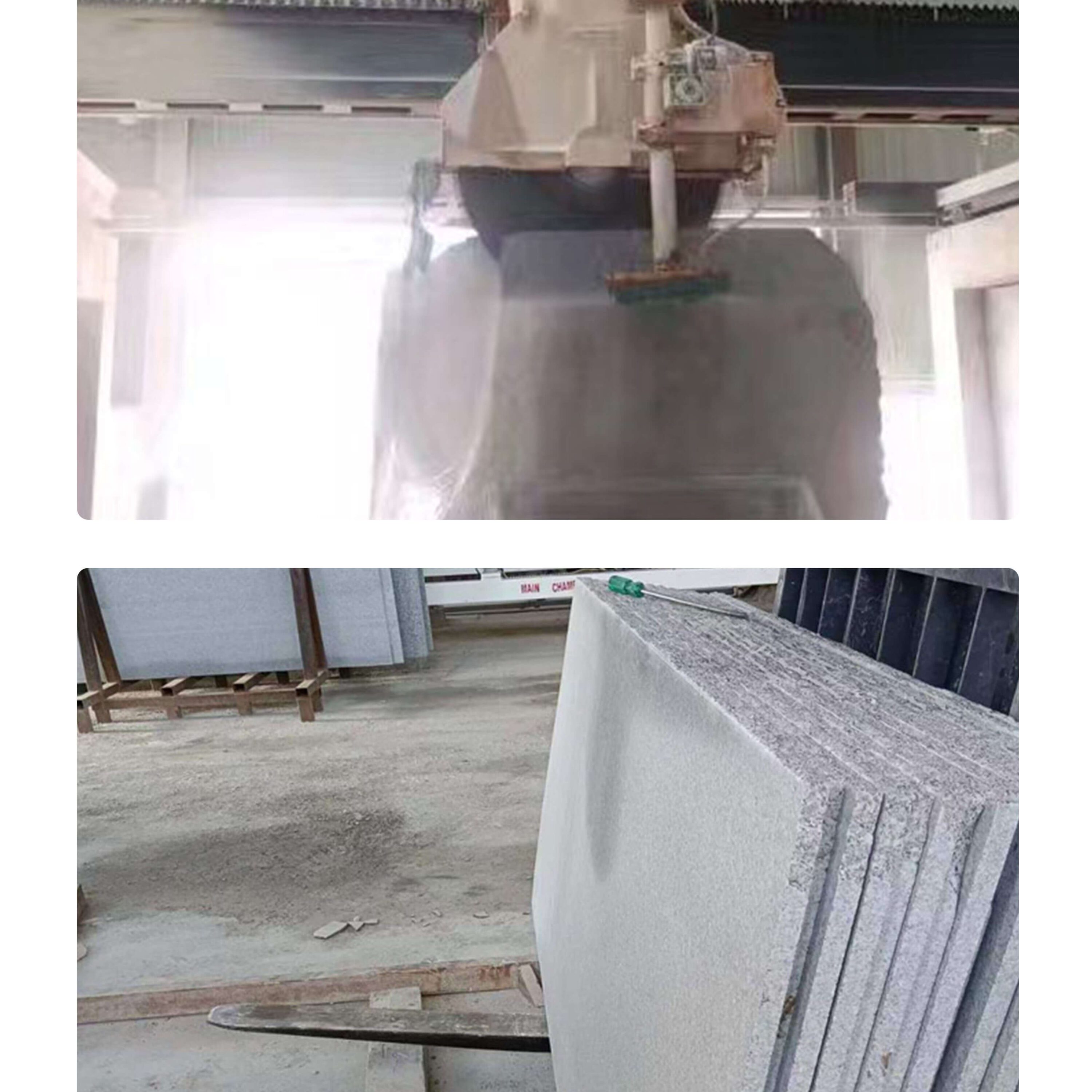

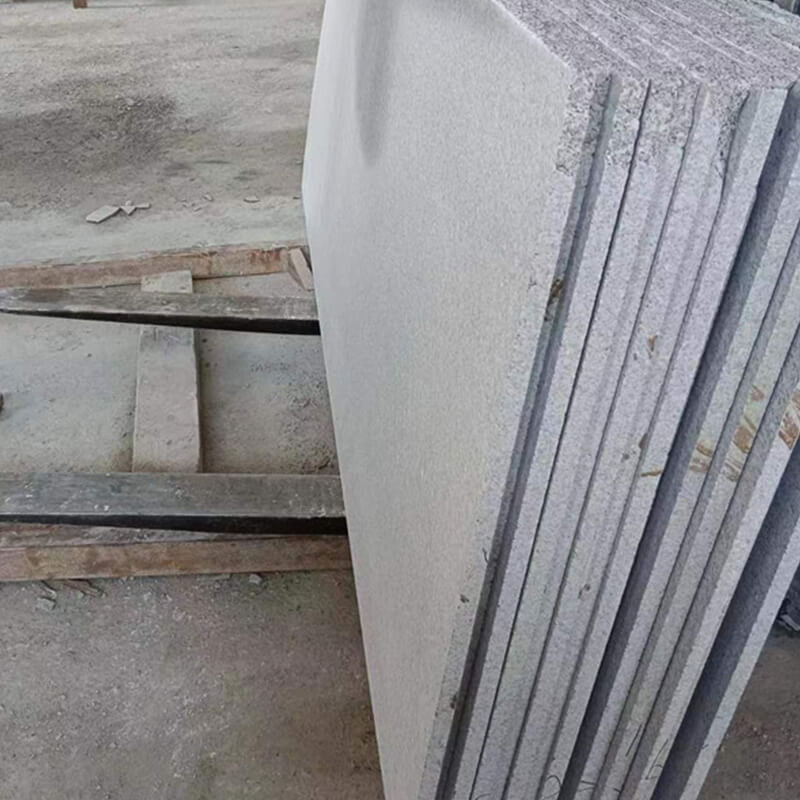

Delivers accurate, flat slabs while maximizing production speed.

🔹 Versatile Stone Applications

Perfect for granite, marble, and other high-hardness materials.

Name Unit DFD-S1600 DFD-S1800 DFD-S2000
Maximum blade diameter mm Φ1600 Φ1800 Φ2000
Maximum processing length mm 4000 3800 3600
Maximum processing width mm 2200 2200 2200
Max. vertical stroke mm 1350 1350 1350
Max. vertical stroke of main column (horizontal cutting) mm 750 850 950
Horizontal cutting blade diameter mm Φ400 Φ400 Φ400
Water consumption m³/h 10
Cutting motor power kW 15
Main motor power kW 75 / 90
Total power kW 100 / 115
Weight kg 13000
Overall dimensions (L×W×H) mm 8000 × 4000 × 3700
