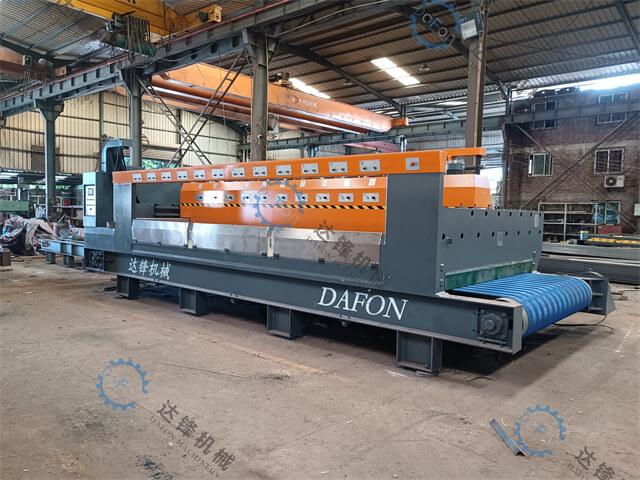

Frankfurt Head Marble line polishing machine

Committed to excellence in every aspect of production, DAFON takes great pride in being a premier manufacturer of stone slab polishing machine that achieves unparalleled results in design, manufacture, and trading.
Price: $39000-$87000
Model Number: DFMJ-16C/24C
Power: Depends on heads no.
Application: Art & Craft, Stone Industry
Weight: Depends on head quantity
Brand Name: DAFON
Certification: CE, ISO

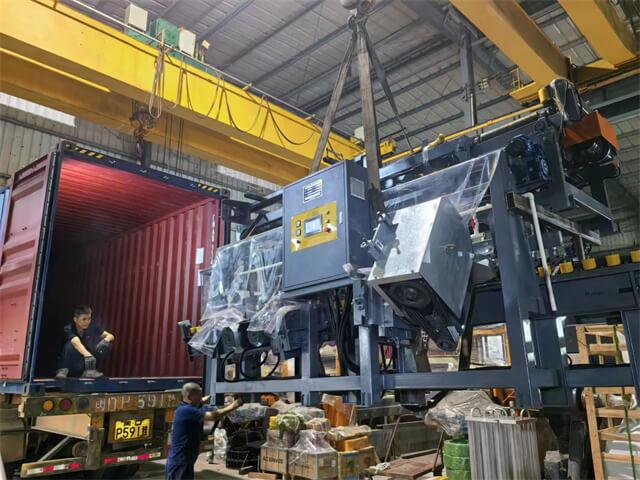

Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-18959843937

Product Description

Introduce

Granite line polishing machine is currently the most ideal, fully automated continuous polishing line for polishing large plates and strips, with the highest production efficiency and the best product quality.

Marble line polishing machine

Classification

According to the different grinding and polishing materials, there are granite line polishing machines and granite fully automatic continuous polishing lines; according to the number of grinding heads installed on the polishing line, there are 16-head, 24-head, and 32-head fully automatic continuous polishing lines. The fully automatic continuous large plate polishing line can be used to polish large parquets with high production efficiency.

Marble line polishing machine

Constitute:

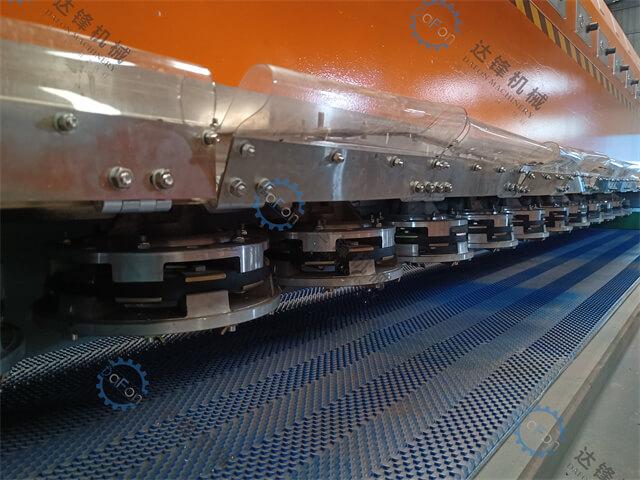

Fully automatic plate turning machine; large plate transition conveyor; conveyor belt; edge trimming device; bridge pendulum; grinding head assembly; operation control panel; cleaning and drying device; scanning device; large plate transition device; fully automatic plate unloader

Marble line polishing machine

Feature
The entire grinding and polishing operation process is completed by the PLC control system; parameters are set by controlling the touch screen;
The grinding head's ascent and descent, swing bridge and conveyor belt operations can be automatically judged based on the shape of the stone.
It is equipped with an alarm system for fault prompts and abrasive consumption to remind the operator to replace it in time;

Track and record stone grinding throughout the process

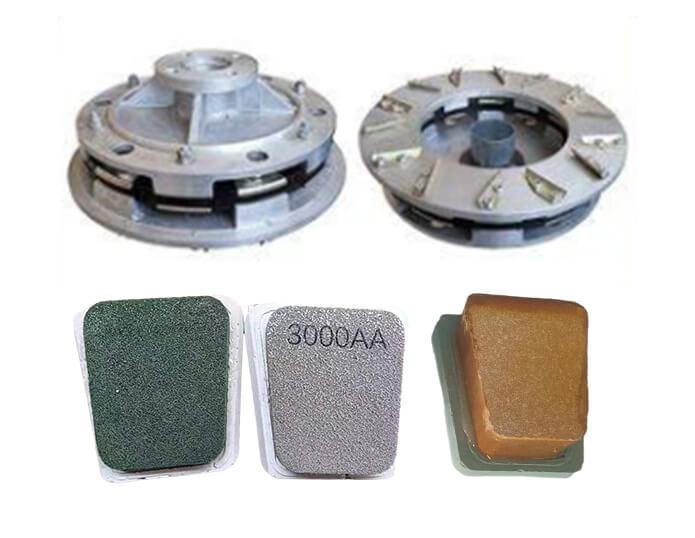

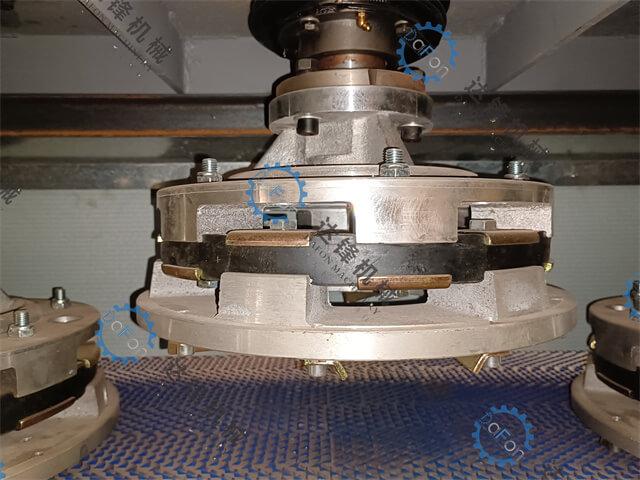

Frankfurt Head

Techinical Data

Name	Unit	DF-16T
Maximum grinding plate width	mm	2000
Crossbeam swing speed	m/min	3-35
Cross beam drive motor	kw	2x4
Belt drive speed	m/min	0.5-4
Belt drive power	kw	4
main motor power	kw	16x15
Number of grinding heads	pcs	16
Grinding disc diameter	mm	φ500
cooling water pressure	Mpa	0.1-0.15
compressed air	Mpa	≥0.7
Host size	mm	11500x3960x2600
Host total power	kw	252
