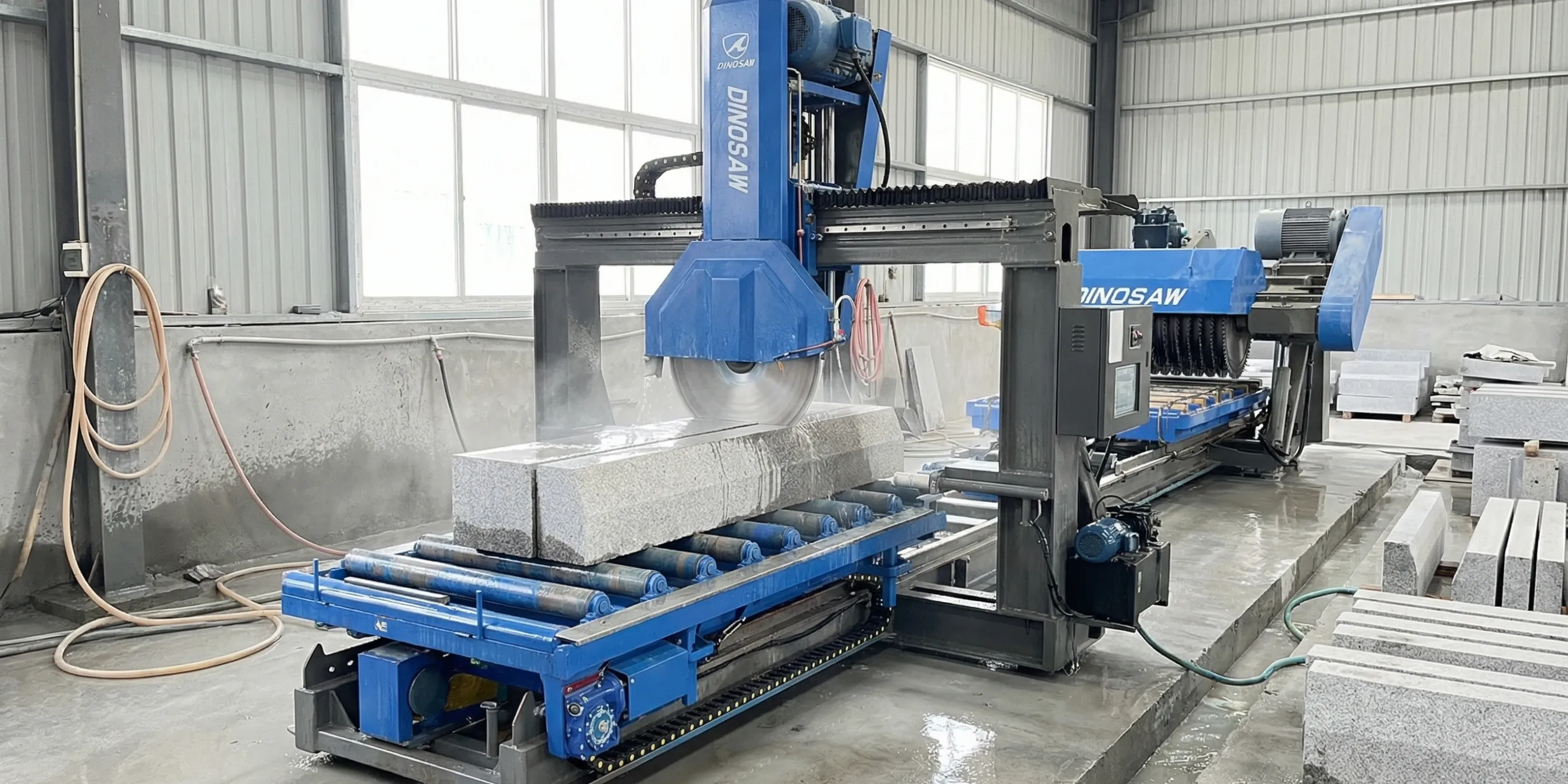

Automatic Kerbstone Cutting Machine Line
High-efficiency automatic kerbstone cutting solution for granite, marble, basalt, limestone and concrete. Designed for continuous industrial production with stable dimensions and reduced labor costs.
- 30–35 m³ daily production capacity
- Only 1 operator required for the cutting line
- 12-blade multi-blade cutting system
- High precision hydraulic positioning
- PLC automatic control
Compatible Materials & Applications
Designed for high-volume production of standardized kerbstones for road construction, municipal projects and infrastructure.
Granite Kerbstone
Ideal for heavy-duty roadside kerbs, highway projects, municipal infrastructure and urban construction.
Concrete Kerbstone
Suitable for large-volume concrete curb production with stable dimensions and repeatable cutting quality.
Basalt Kerbstone
Heavy-duty cutting solution for dense and abrasive materials used in highways and infrastructure.
Limestone & Other Stone
Process limestone, marble, sandstone, quartzite and other natural or engineered stone materials.
Technical Specifications
Machine configuration can be customized according to your material, kerbstone dimensions and production requirements.
| Specification | Curbstone Slicing Machine | Edge Cutting Machine |
|---|---|---|
| Model | LYFP-1200 | LYQB-1200 |
| Machine Dimension | 5500 × 4000 × 4500 mm | 5500 × 2300 × 2500 mm |
| Blade Diameter | 1200 mm | 1200 mm |
| Number of Blades | 12 pcs | 1 pc |
| Maximum Cutting Size | 2500 × 1800 × 450 mm | 2500 × 1800 × 450 mm |
| Worktable Size | 2500 × 1800 mm | 2500 × 1800 mm |
| Weight | 9 Ton | 10 Ton |
| Main Motor Power | 22 kW | 55–75 kW |
Why Choose Our Kerbstone Production Line?
Built for manufacturers who need higher output, lower labor costs and consistent production quality.
High Production
Achieve up to 30–35 m³ daily output with a multi-blade continuous production system.
Lower Labor Cost
One operator can monitor the main production line, reducing manual handling and labor requirements.
Stable Precision
Hydraulic positioning and automatic measurement help maintain consistent kerbstone dimensions.
Lower Operating Cost
Continuous production reduces idle time, manual handling and unnecessary secondary processing.
Automated Kerbstone Production Process
From stone block to finished kerbstone with continuous material transfer and automatic positioning.
Block Loading
Position the stone block on the working table.
Multi-Blade Cutting
Multiple diamond blades cut several strips simultaneously.
Automatic Transfer
Hydraulic rollers transfer materials between machines.
Edge Cutting
Automatic positioning completes the final dimension cutting.
Frequently Asked Questions
Everything you need to know before choosing an automatic kerbstone cutting machine.
What materials can this kerbstone cutting machine process?
How many workers are required?
What is the production capacity?
Can the machine be customized?
Can you provide installation and technical support?
Reliable Industrial Machinery
Engineered for long-term operation in demanding stone processing environments.
Related Stone Machinery
Complete your kerbstone production line with additional stone processing equipment.
Looking for a Complete Kerbstone Production Solution?
Tell us your stone type, kerbstone dimensions and expected daily production. Our engineers can recommend the right machine configuration for your factory.
Get A Free Quote
